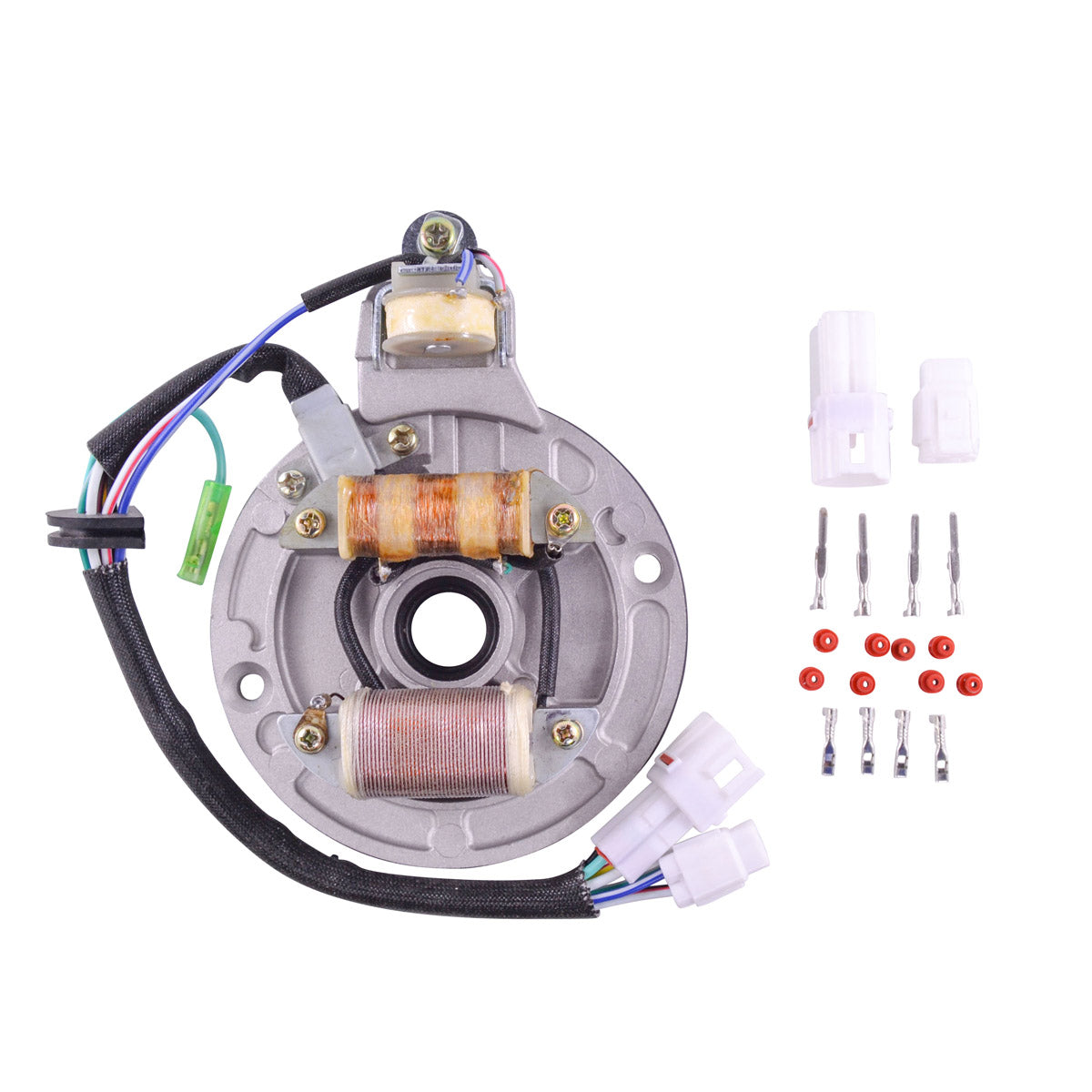

RMStator Stator RM01421
Customer Ratings
RMStator Stator RM01421
RMStator Stator RM01421
Brand new stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Back Plate included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 27 mm
Exterior diameter : 111 mm
Thickness : 14 mm
Length of wires stator to grommet : 60 mm
Length of wires grommet to plug : 180 mm
Length of pickup coil's wire to grommet : 60 mm
Other specifications :
Number of wires : 8
Number of plugs : 2
Number of pins : 8
Wire to wire resistance :
Alternator : Yellow/Red to White = 0.4 ohms +/-20%
Pickup : White/Blue to White/Red = 320 ohms +/-20%
Source : Red/Balck To Green/White = 346 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01421
Fitment:
- 1995-2001 Yamaha Badger 80 YFM80
- 2005-2008 Yamaha Grizzly 80 YFM80G
- 2004-2008 Yamaha Raptor 50 YFM50
- 2002-2008 Yamaha Raptor 80 YFM80R

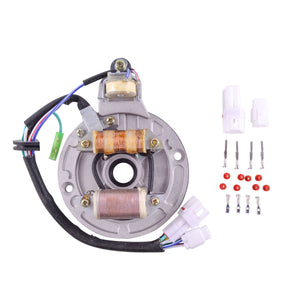

Note: Image is for reference only, actual product may vary slightly.
