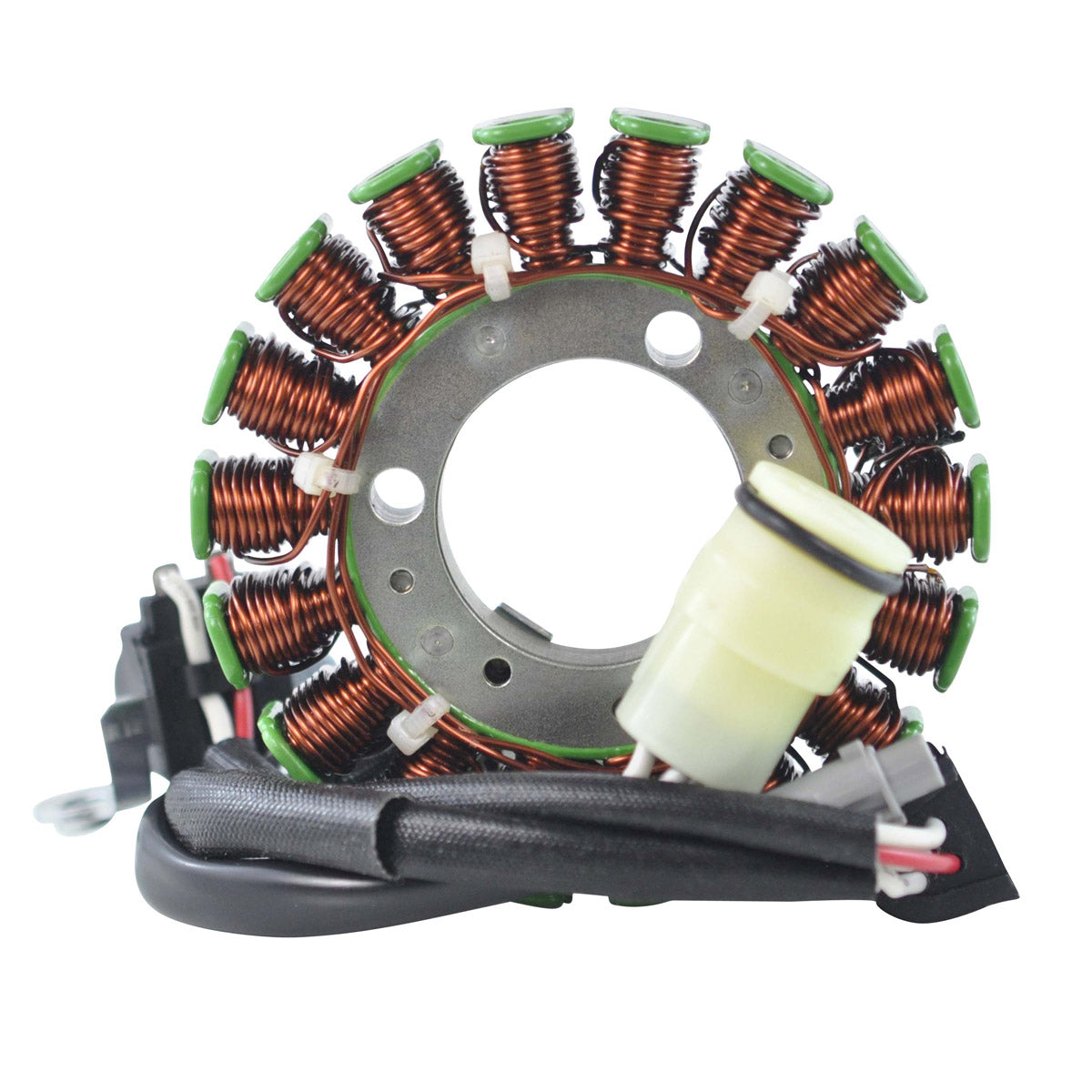

RMStator Generator Stator RM01493

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 37 mm
Exterior diameter : 97 mm
Thickness : 14 mm
Length of wires stator to grommet : 130 mm
Length of wires grommet to plug : 110 mm
Length of pickup coil's wire to grommet : 220 mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :

Alternator : White to White = 0.4 ohms +-20%
Pickup : Black to White = 250 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01493

Fitment:

• 2009-2023 Yamaha YFZ450R
• 2010-2011 Yamaha YFZ50

Note: Image is for reference only, actual product may vary slightly.
