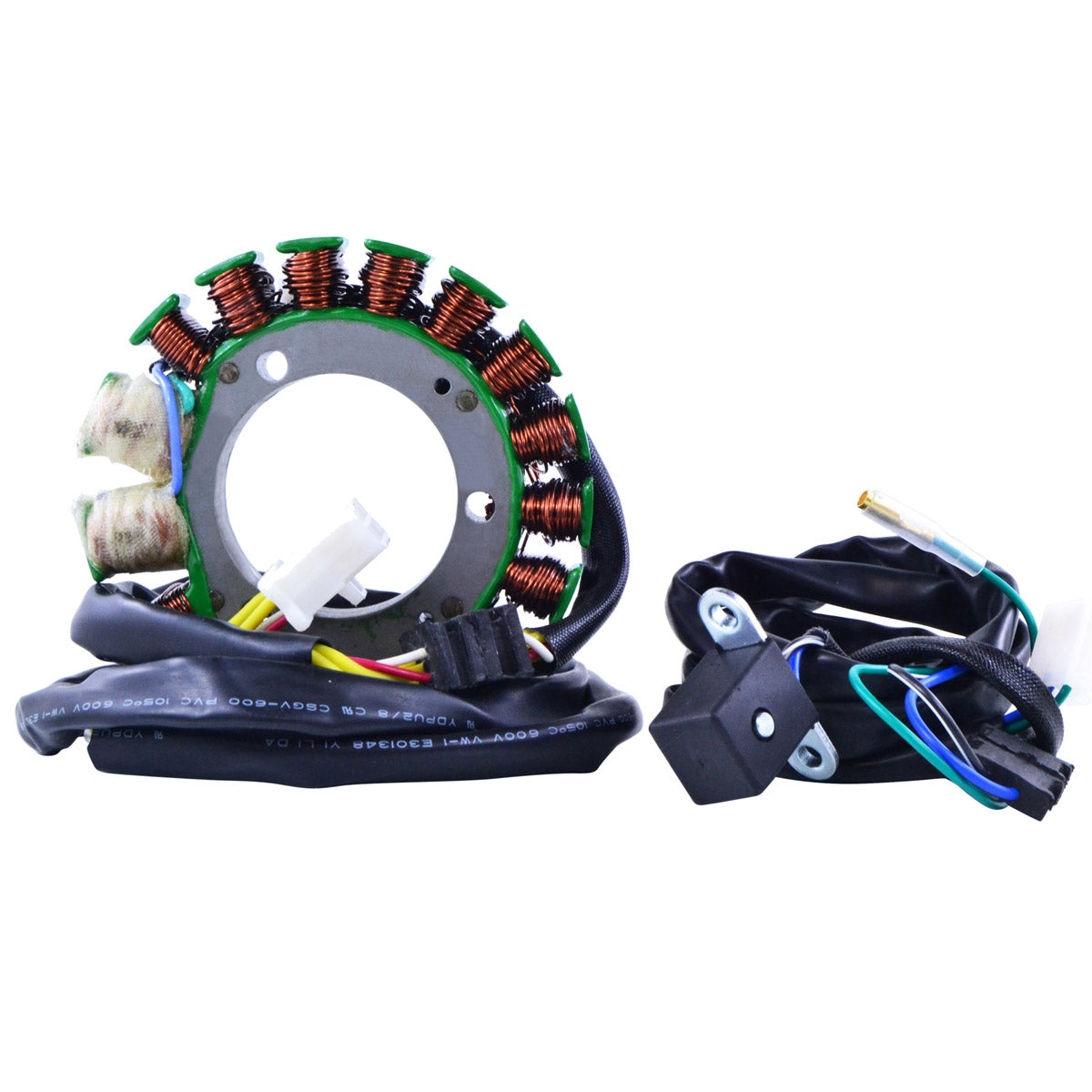

RMStator Stator RM01521
Customer Ratings
RMStator Stator RM01521
RMStator Stator RM01521
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- Pick-up coil included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 113 mm
Thickness : 36 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 800 mm
Other specifications :
Number of wires : 5
Number of plugs : 1
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow between each Yellow = 0.8 ohms +/-20%
Source : Red to White = 140 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01521
Fitment:
- 1990-1991 Kawasaki KL650 Tengai
- 1987-2007 Kawasaki KLR650
Note: Image is for reference only, actual product may vary slightly.
