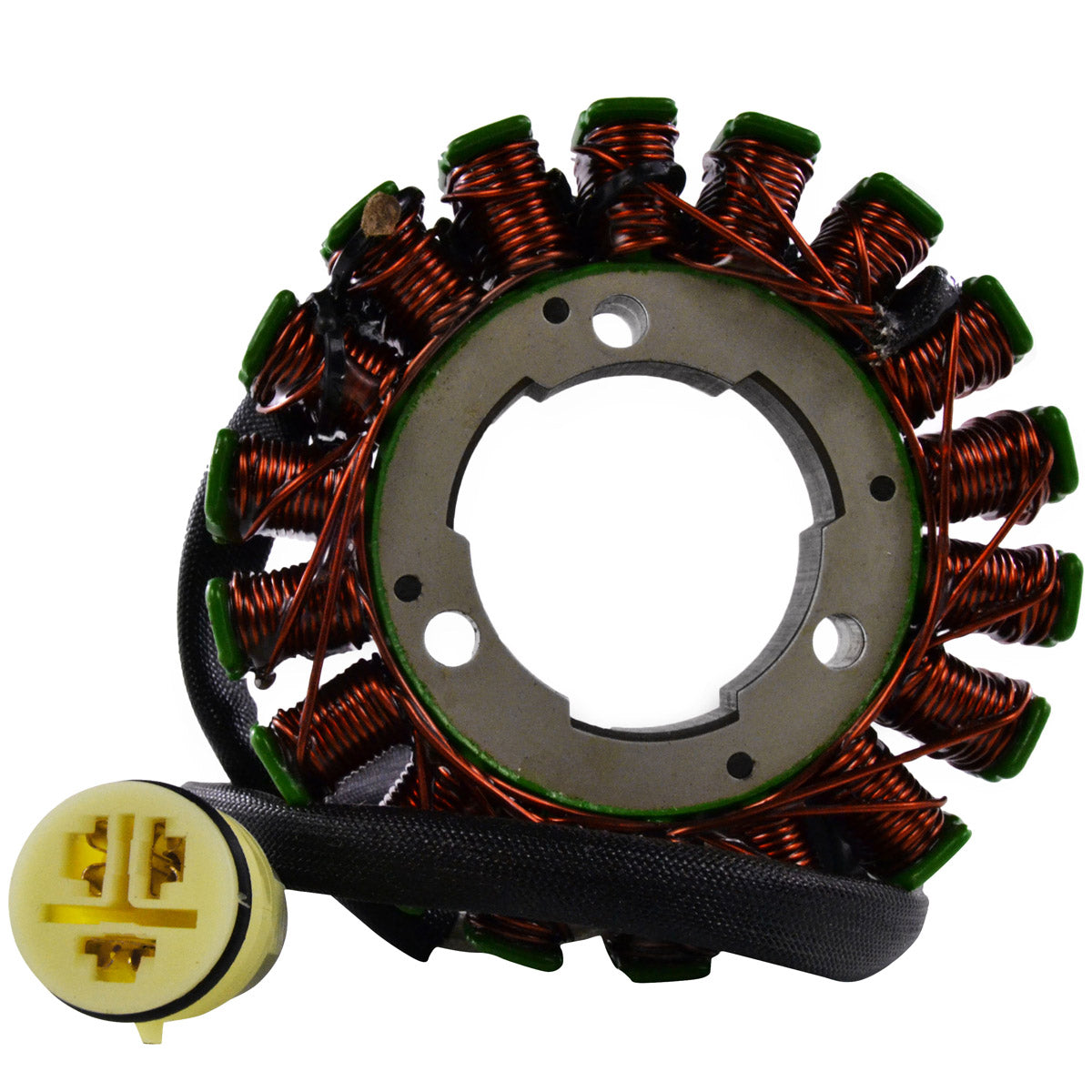

RMStator Generator Stator RM01528

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 41 mm
Exterior diameter : 104 mm
Thickness : 12 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 480 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator : Between Each White = 1.1 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01528

Fitment:

• 2009-2010 Kawasaki Jet Ski STX JT1500
• 2003-2007 Kawasaki Jet Ski STX12F JT1200
• 2004-2019 Kawasaki Jet Ski STX15F JT1500
• 2017-2019 Kawasaki Jet Ski SXR JS1500
• 2007-2019 Kawasaki Jet Ski Ultra LX JT1500

Note: Image is for reference only, actual product may vary slightly.
