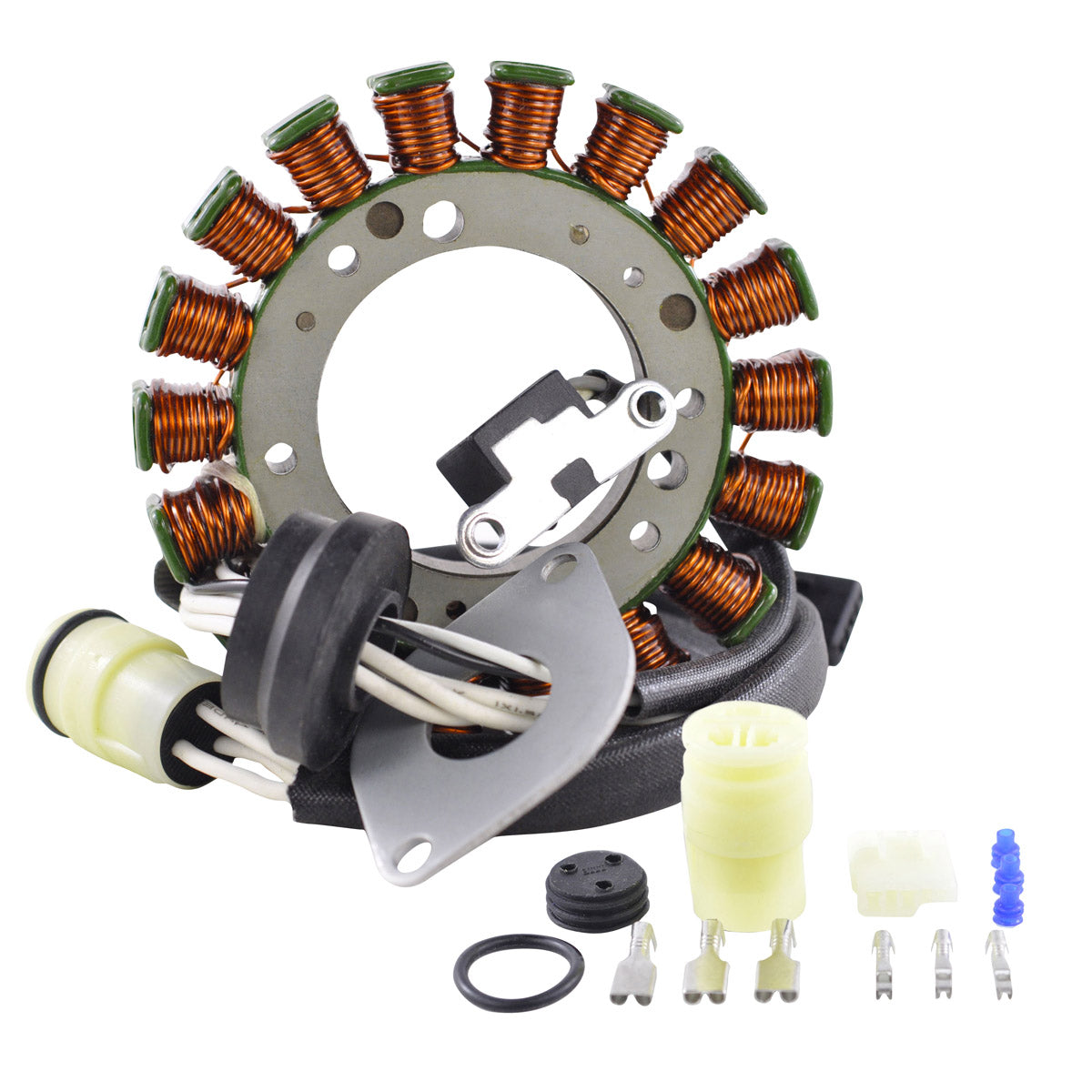

RMStator Stator RM01540
RMStator Stator RM01540
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 14 mm
Length of wires stator to grommet : 50 mm
Length of wires grommet to plug : 600 mm
Length of pickup coil's wire to grommet : 150 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins :5
Wire to wire resistance :
Alternator : Green between each Green = 0.4 ohms +-20%
Pickup : Black to White = 520 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01540
Fitment:
- 2012 Yamaha 212 SS
- 2012 Yamaha 212 X
- 2010-2012 Yamaha 242 Limited
- 2010-2012 Yamaha 242 Limited S
- 2012-2013 Yamaha AR 190
- 2010-2012 Yamaha AR 240 HO
- 2012-2013 Yamaha SX 190
- 2010-2012 Yamaha SX 240 HO
- 2008-2012 Yamaha WaveRunner FX FA1800 SHO
- 2009-2012 Yamaha WaveRunner FX FB1800 HO
- 2008-2012 Yamaha WaveRunner FX Cruiser FA1800A SHO
- 2009-2012 Yamaha WaveRunner FX Cruiser FB1800 HO
- 2009-2012 Yamaha WaveRunner FZR GX1800
- 2009-2012 Yamaha WaveRunner FZS GX1800A
- 2011-2012 Yamaha WaveRunner VXR VX1800AK
- 2011-2012 Yamaha WaveRunner VXS VX1800K
Note: Image is for reference only, actual product may vary slightly.
