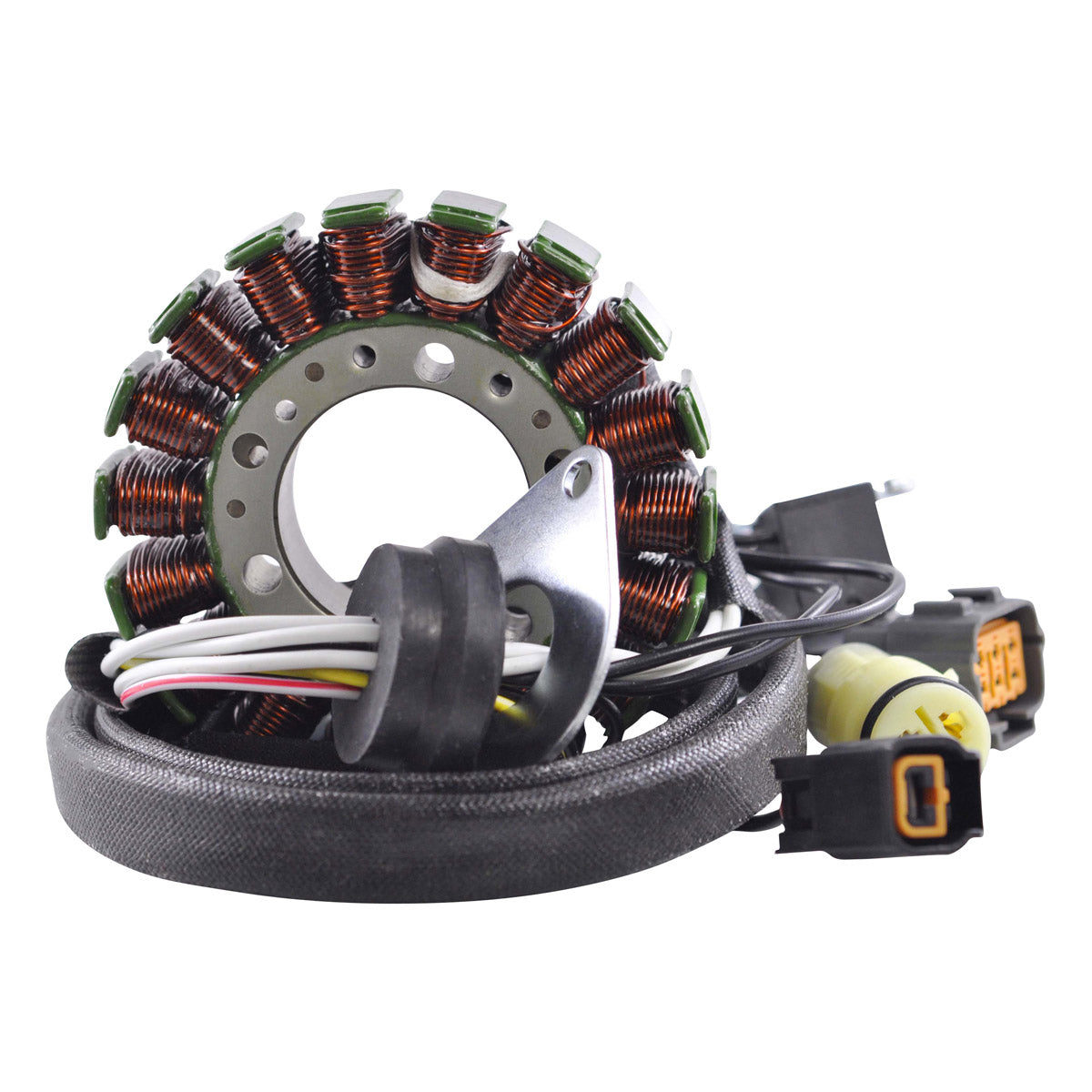

RMStator Generator Stator RM01542

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coils included (3)
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 22.5 mm
Length of wires stator to grommet : 57 mm
Length of wires grommet to plug : 990 mm
Length of pickup 1 coil's wire to grommet : 90 mm
Length of pickup 2 coil's wire to grommet : 260 mm
Length of pickup 3 coil's wire to grommet : 160 mm

Other specifications :

Number of wires : 9
Number of plugs : 3
Number of pins : 9

Wire to wire resistance :

Alternator : Green to Green = 0.9 ohms +-20%
Pickup 1 : White/Yellow to Black = 527 ohms +-20%
Pickup 2 : White/Black to Black = 526 ohms +-20%
Pickup 3 : White/Red to Black = 520 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01542

Fitment:

• 2003-2008 Yamaha WaveRunner GP1300R GP1300

Note: Image is for reference only, actual product may vary slightly.
