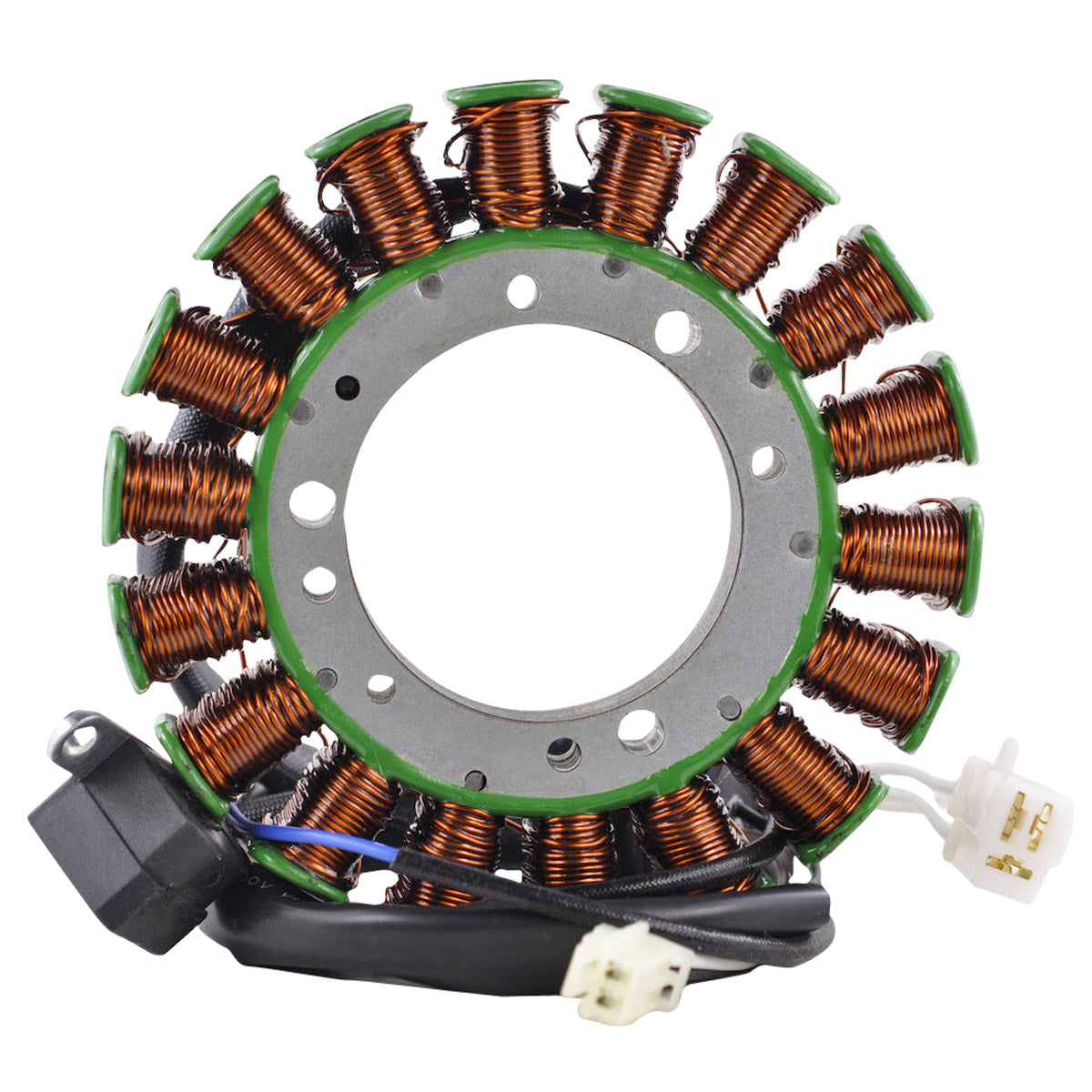

RMStator Generator Stator RM01554

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 58 mm
Exterior diameter : 130 mm
Thickness : 18 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 250 mm
Length of pickup coil's wire to grommet : 90 mm

Other specifications :

Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :

Alternator : White to White = 0.8 ohms +-20%
Pickup : Black to Grey = 209 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01554

Fitment:

• 2004 Yamaha V Star 1100 XVS1100 Custom
• 2006-2009 Yamaha V Star 1100 XVS1100 Custom
• 2005-2009 Yamaha V Star 1100 XVS1100 Midnight Custom
• 2004-2009 Yamaha V Star 1100 XVS1100A Classic
• 2003 Yamaha V Star 1100 XVS1100A Classic Cast Wheels
• 2003-2009 Yamaha V Star 1100 XVS1100AT Silverado

Note: Image is for reference only, actual product may vary slightly.
