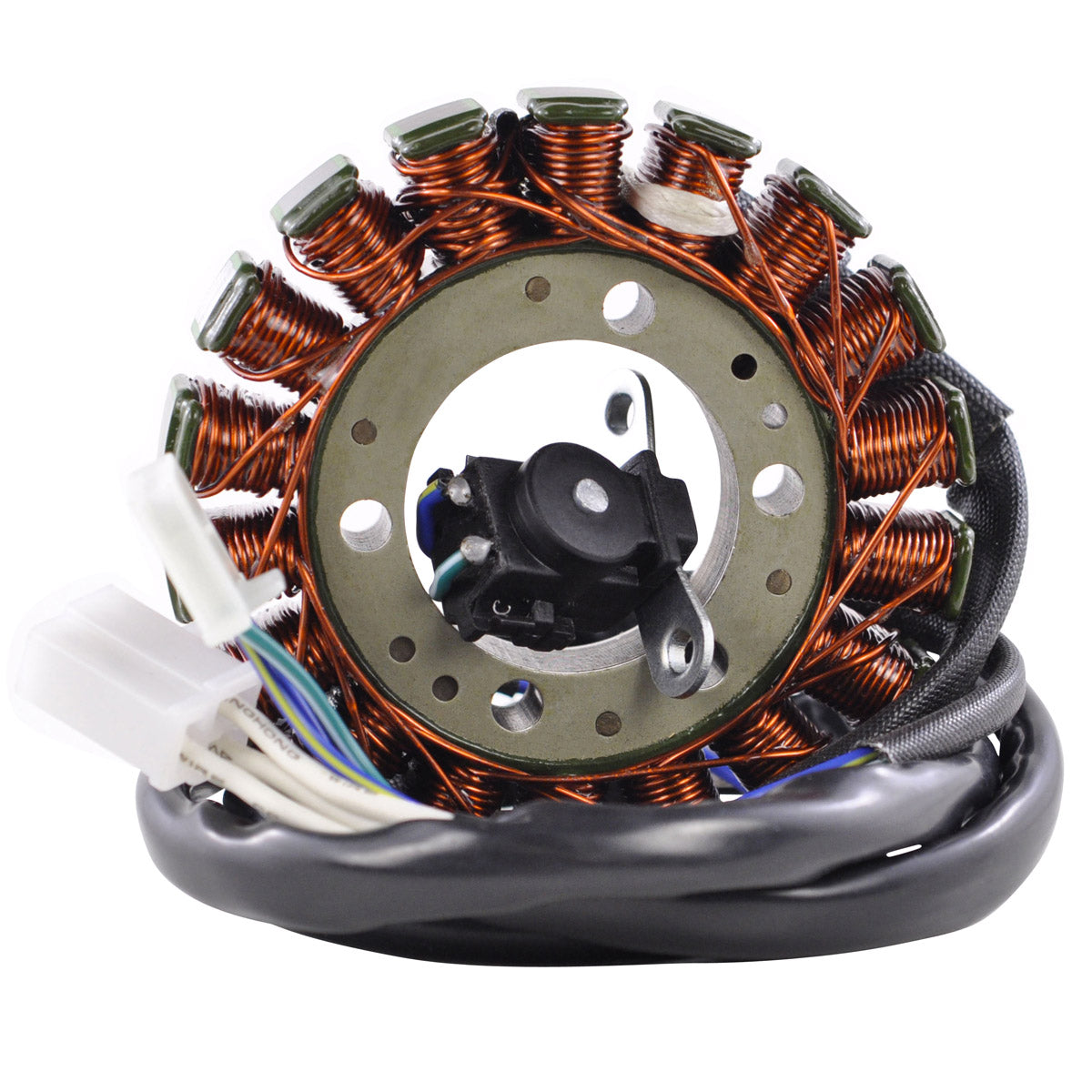

RMStator Generator Stator RM01557

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 103 mm
Thickness : 18 mm
Length of wires stator to grommet 1 : 122 mm

Length of wires between grommets : 80 mm
Length of wires grommet to plug : 805 mm
Length of pickup coil's wire to grommet : 125 mm

Other specifications :

Number of wires : 6
Number of plugs : 2
Number of pins :6

Wire to wire resistance :

Alternator : White between White = 0.5 ohms +-20%
Pickup :Green/White to Blue/Yellow = 240 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01557

Fitment:

• 2008-2021 Yamaha V Star 250 XV250
• 1995-2007 Yamaha Virago 250 XV250

Note: Image is for reference only, actual product may vary slightly.
