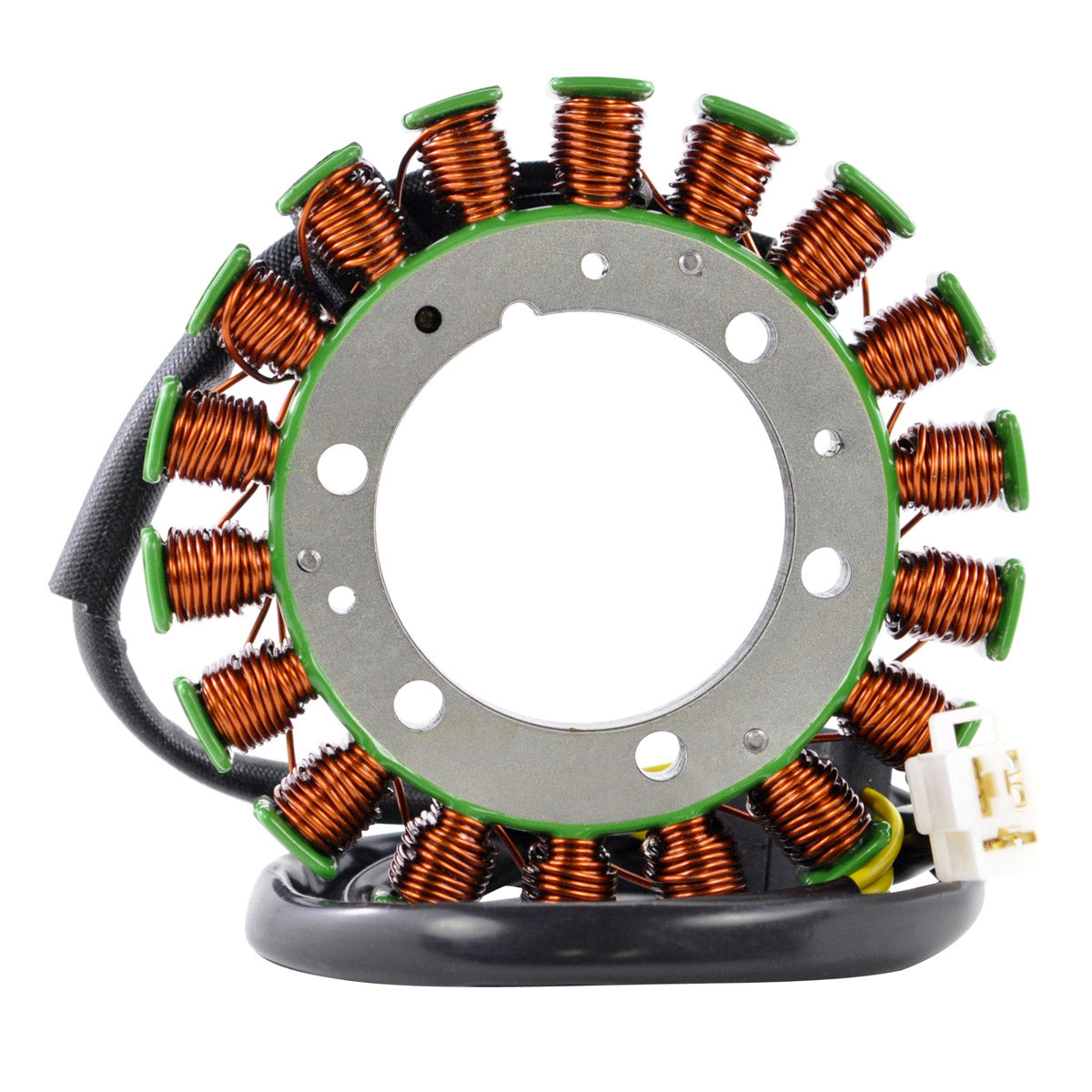

RMStator Generator Stator RM01558
Customer Ratings
RMStator Generator Stator RM01558
RMStator Generator Stator RM01558
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side), as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 14 mm
Length of wires stator to grommet 1 : 140 mm
Length of wires between grommet 1 and 2 : 7 mm
Length of wires grommet 2 to plug : 580 mm
Other specifications :
Number of wires : 5
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : White to White = 0.7 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01558
Fitment:
- 1987-1988 Yamaha Virago 535 XV535
- 1990 Yamaha Virago 535 XV535
- 1993-2000 Yamaha Virago 535 XV535
- 1994-1997 Yamaha Virago 535S XV535S
Note: Image is for reference only, actual product may vary slightly.
