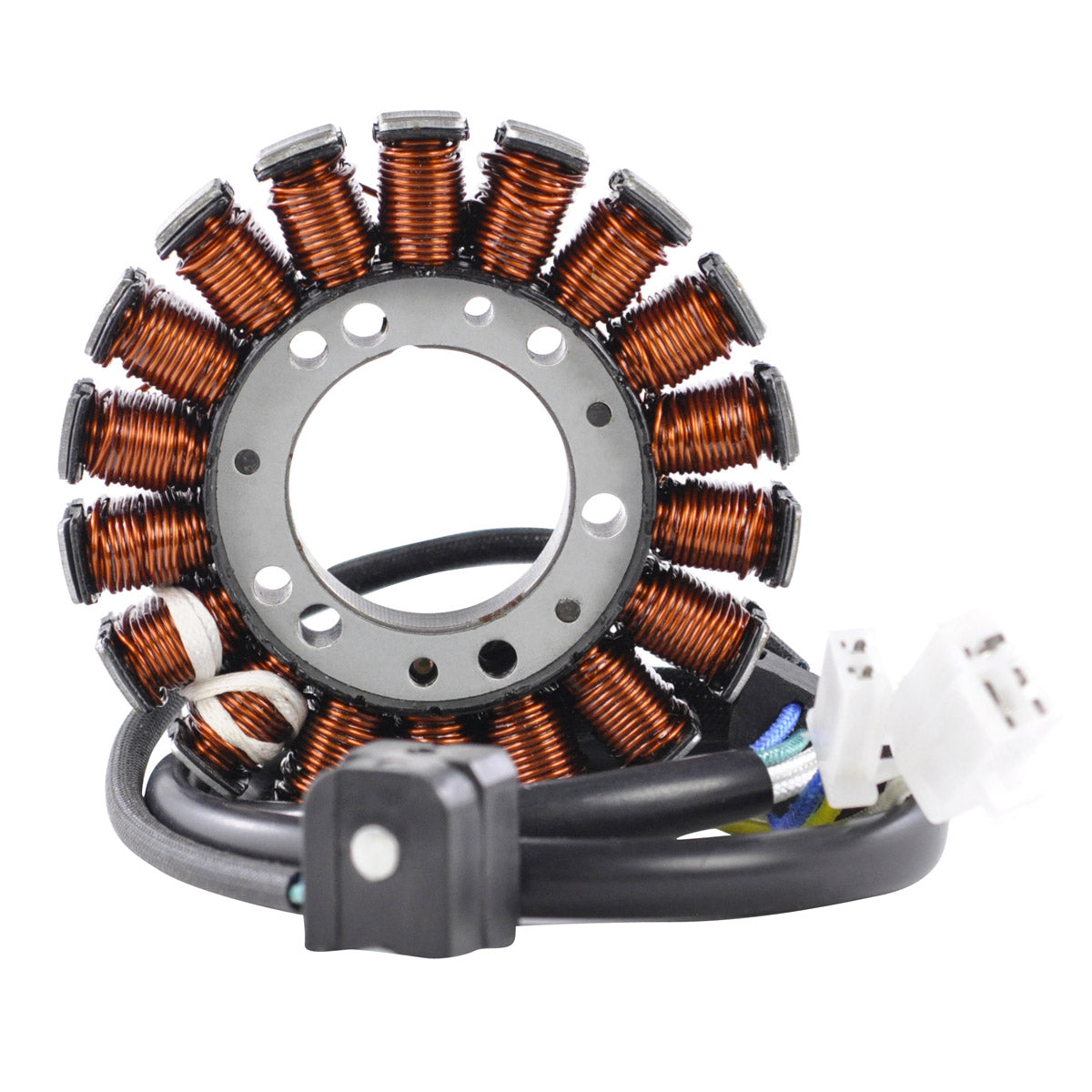

RMStator Generator Stator For 1999-2006 Yamaha TTR250 RM01560
Customer Ratings
RMStator Generator Stator For 1999-2006 Yamaha TTR250 RM01560
RMStator Generator Stator For 1999-2006 Yamaha TTR250 RM01560
Brand new aftermarket statorDirect replacement to your original unitPlug-and-play, direct fit, easy installationHighest grade lamination materialsHighest grade copper windings, resistant to 200 degrees Celsius.Pick up pulsar coil includedConnector includedRubber grommet includedAll products shipped are testedWe have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions : Interior diameter : 35 mm Exterior diameter : 93 mm Thickness : 14 mm Length of wires stator to grommet : 70 mm Length of wires grommet to plug : 470 mm Length of pickup coil's wire to grommet : 190 mmOther specifications : Number of wires : 5 Number of plugs : 2 Number of pins : 5 Wire to wire resistance : Alternator : White To White = 1.3 ohms +-20% Pickup : Blue To Yellow = 214 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01560
Fitment:
- 1999-2006 Yamaha TTR250
Note: Image is for reference only, actual product may vary slightly.
