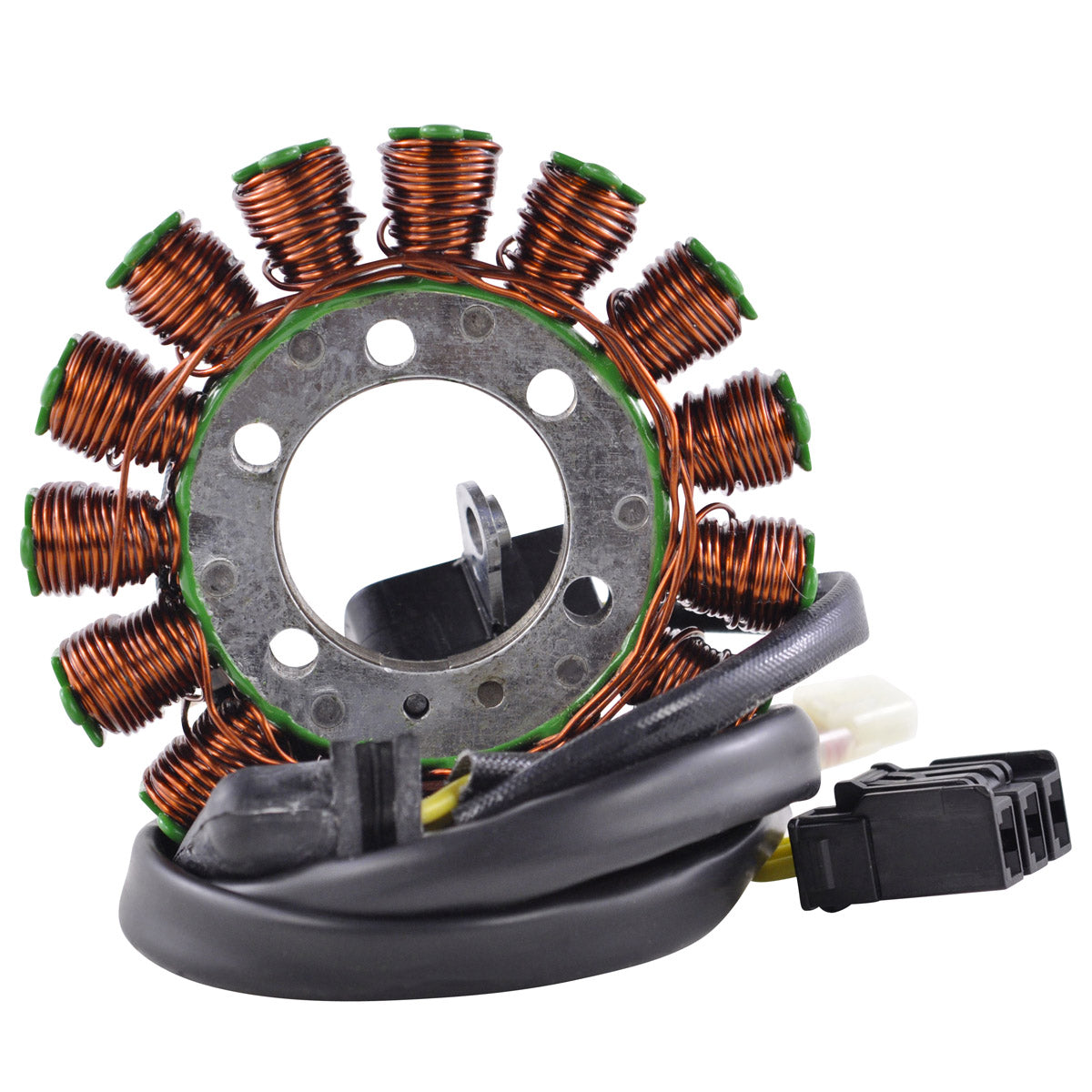

RMStator Generator Stator For 2008-2009 Honda CBR1000RR RM01568
Customer Ratings
RMStator Generator Stator For 2008-2009 Honda CBR1000RR RM01568
RMStator Generator Stator For 2008-2009 Honda CBR1000RR RM01568
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 38 mm
Exterior diameter : 104 mm
Thickness : 12 mm
Length of wires stator to grommet : 95 mm
Length of wires grommet to plug 1 : 540 mm
Length of wires grommet to plug 2 : 310 mm
Length of pickup coil's wire to grommet : 55 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Wire to wire resistance :
Alternator : Between each White = 0.5 ohms +/-20%
Pickup : White/Yellow to Yellow = 473 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01568
Fitment:
- 2008-2009 Honda CBR1000RR
Note: Image is for reference only, actual product may vary slightly.
