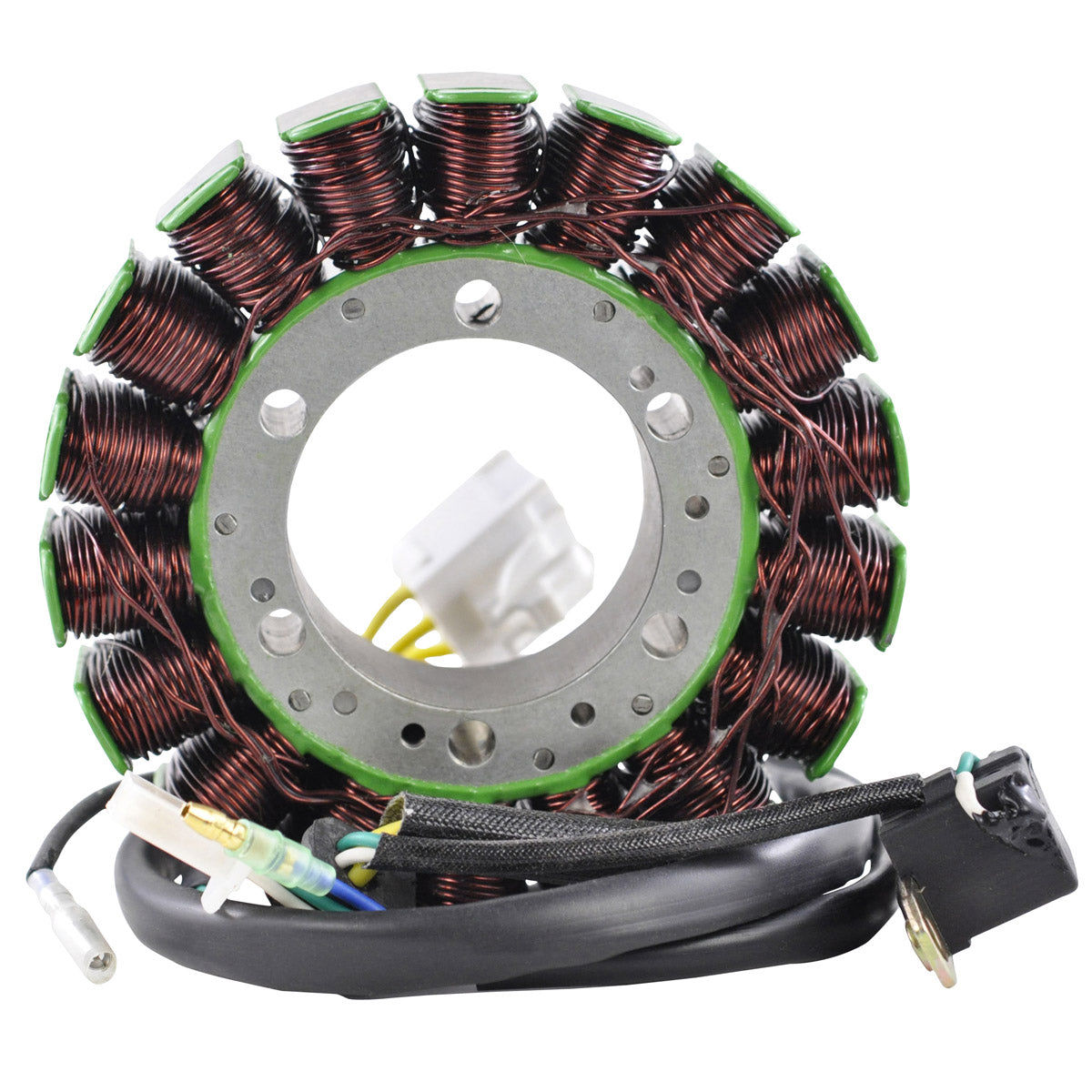

RMStator Generator Stator RM01572
Customer Ratings
RMStator Generator Stator RM01572
RMStator Generator Stator RM01572
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Back Plate included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 33 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to alternator : 410 mm
Length of wires grommet to pick up coil : 615 mm
Length of pickup coil's wire to grommet : 90 mm
Number of wires :2
Number of plugs :4
Number of pins :7
Wire to wire resistance :
Alternator :Between yellow wires = 0.6 ohms +-20%
Pickup :Green to White = 196 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01572
Fitment:
- 2004 Honda VTX1300C
- 2003-2004 Honda VTX1300S
Note: Image is for reference only, actual product may vary slightly.
