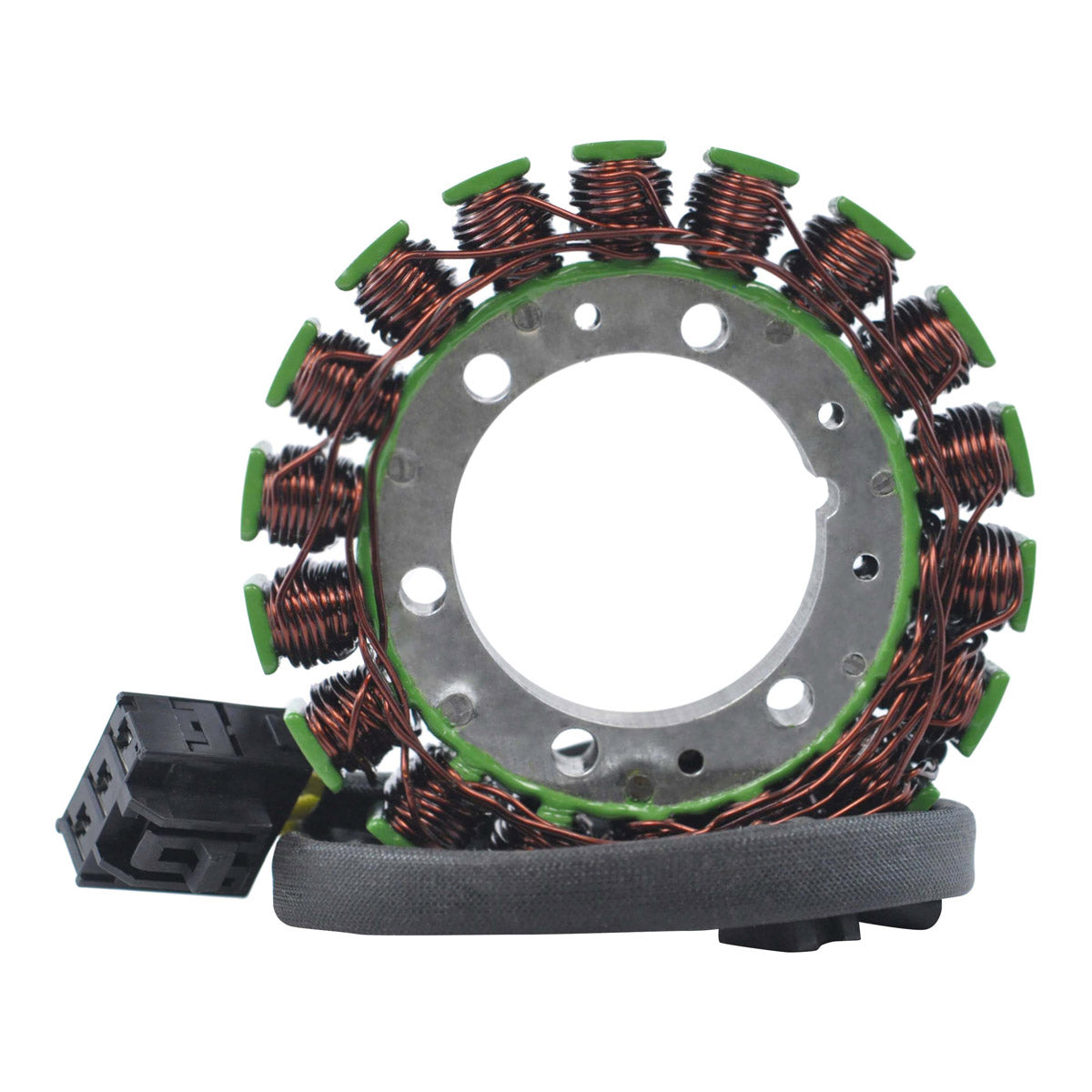

RMStator Stator RM01592

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 58.83mm
Exterior diameter : 114.90mm
Thickness : 19.75mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 450mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator : Yellow to Yellow = 0.3ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01592

Fitment:

• 2010-2013 Honda Shadow 750 VT750C
• 2011-2016 Honda Shadow Aero 750 VT750C
• 2018-2020 Honda Shadow Aero 750 VT750C
• 2010-2020 Honda Shadow Phantom 750 VT750C2
• 2010-2013 Honda Shadow RS 750 VT750RS
• 2012-2014 Honda Shadow Spirit 750 VT750C2

Note: Image is for reference only, actual product may vary slightly.
