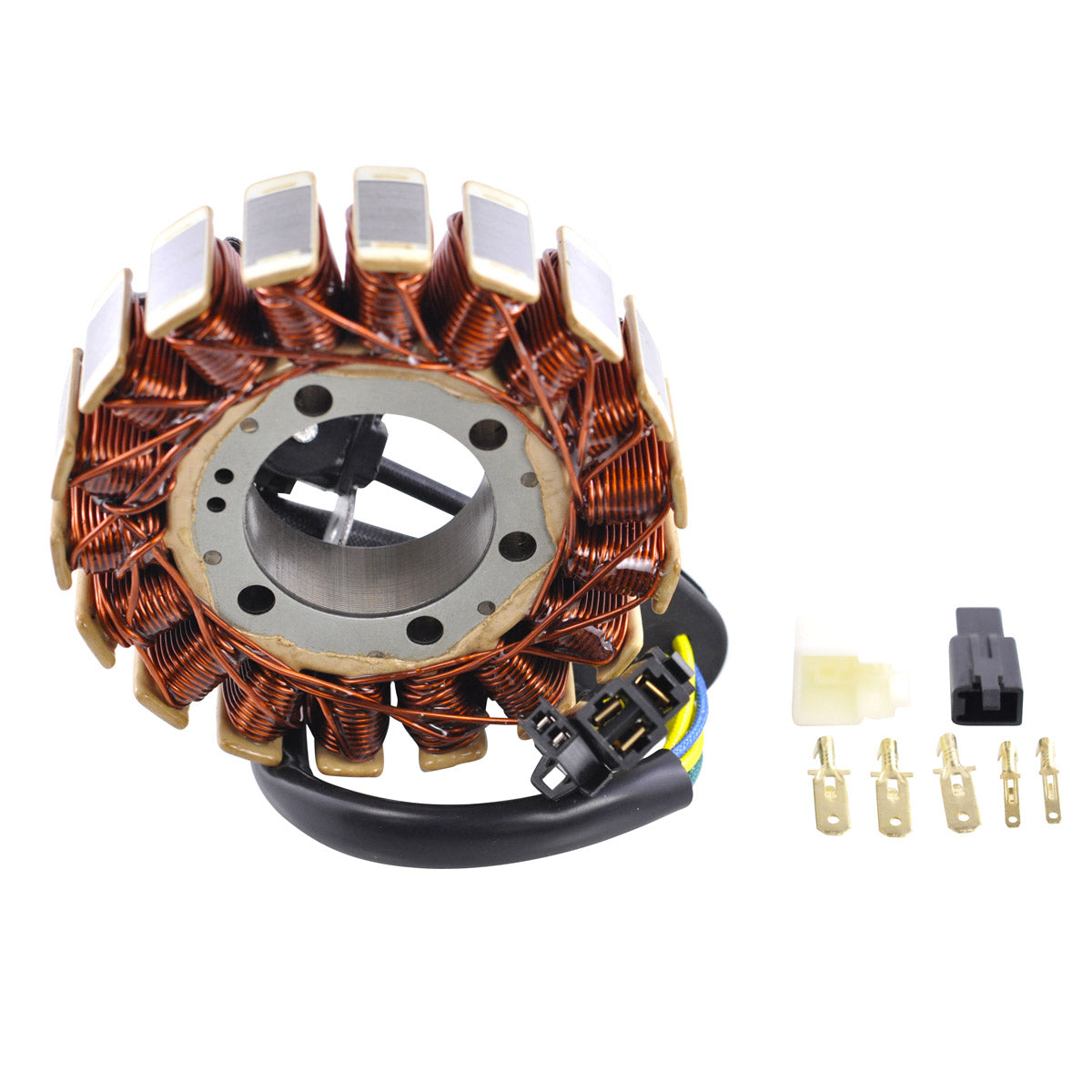

RMStator 500W Stator RM01597

Brand new aftermarket 500W Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side), as we know these are often melted corroded defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 108 mm
Thickness : 22 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 200 mm
Length of pickup coil's wire to grommet : 55 mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :

Alternator : White to White = 0.5 ohms +-20%
Pickup : Blue to Green = 239 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM01597

Fitment:

• 2008 Suzuki B-King GSX1300BK
• 2008-2009 Suzuki Hayabusa GSX1300R
• 2011-2017 Suzuki Hayabusa GSX1300R
• 2019 Suzuki Hayabusa GSX1300R

Note: Image is for reference only, actual product may vary slightly.
