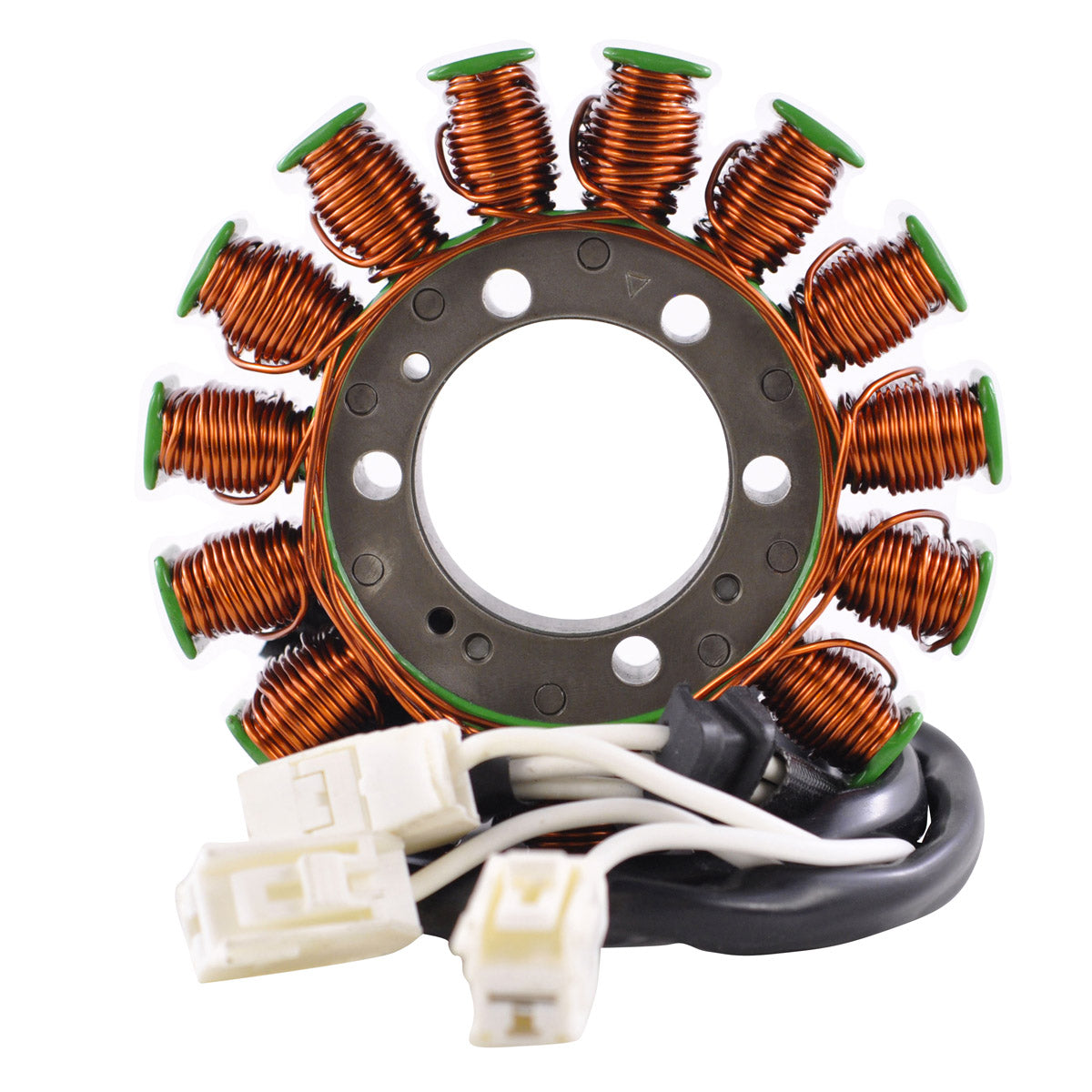

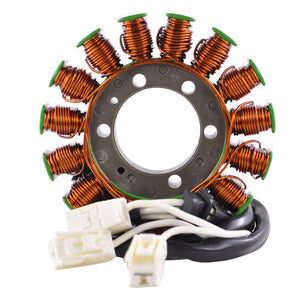

RMStator Generator Stator RM01602
Customer Ratings
RMStator Generator Stator RM01602
RMStator Generator Stator RM01602
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 20 mm
Length of wires stator to grommet : 95 mm
Length of wires grommet to plug : 780 mm
Other specifications :
Number of wires : 3
Number of plugs : 3
Number of pins : 3
Wire to wire resistance :
Alternator : Black to Black = 0.4 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM01602
Fitment:
- 2008-2019 Kawasaki Concours 14 ZG1400 ABS
Note: Image is for reference only, actual product may vary slightly.
