RMStator Stator CDI Box Coil Kit RM22411
Customer Ratings
RMStator Stator CDI Box Coil Kit RM22411
RMStator Stator CDI Box Coil Kit RM22411
WE HIGHLY RECOMMEND REPLACING THE VOLTAGE REGULATOR AT THE SAME TIME AS THE CDI UNIT.
IT IS THE REASON FOR CDI FAILURES.

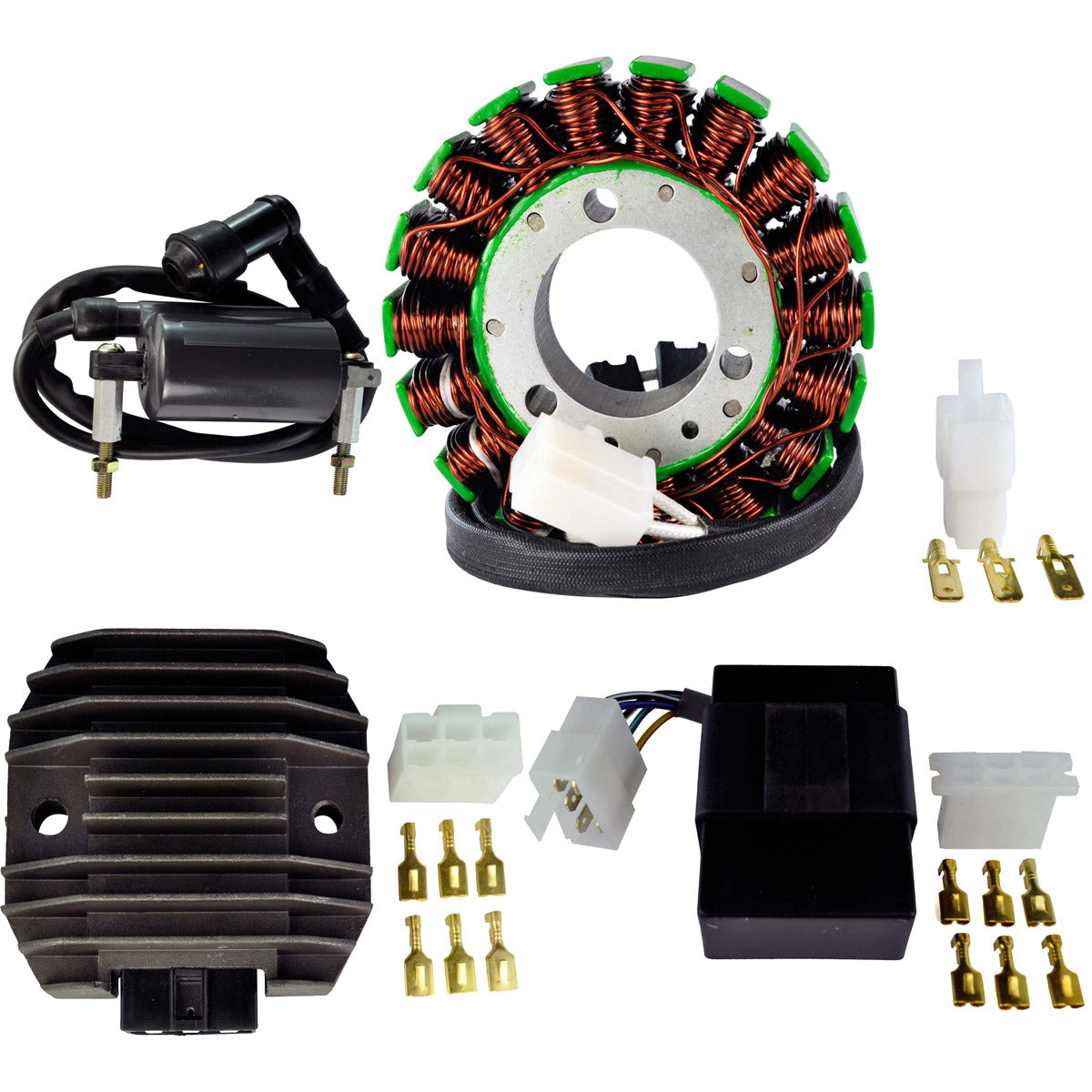

Brand New Kit Stator + Voltage Regulator Rectifier + PeakRPM CDI Box + External Ignition Coil
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
- All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part
- No assembly required
- Higher grade of electric components
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
- The Quality exceeds the OEM equipment
- Highest grade of lamination materials
- Spark plug cap(s) included
Technical Data
Stator Dimensions :
Interior diameter : 38mm
Exterior diameter : 102mm
Thickness : 18mm
Length of wires stator to grommet : 155mm
Length of wires grommet to plug : 390mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Dimensions Voltage Regulator Rectifier:
Width : 79mm
Length : 89mm
Height: 27mm
Fixation holes center to center : 70mm
Other specifications :
Number of plugs : 1
Number of pins : 6
Dimensions CDI Box :
Height: 25mm
Length: 75mm
Width: 50mm
Other specifications:
Number of plugs: 1
Number of pins: 5
Dimensions External Ignition Coil :
Distance between fixation holes: 80 mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22411
Fitment:
- 1986-1987 Kawasaki Bayou 300 KLF300A
Note: Image is for reference only, actual product may vary slightly.
