RMStator Stator Lighting For 2004-2009 Yamaha YFZ50 RM22430
RMStator Stator Lighting For 2004-2009 Yamaha YFZ50 RM22430

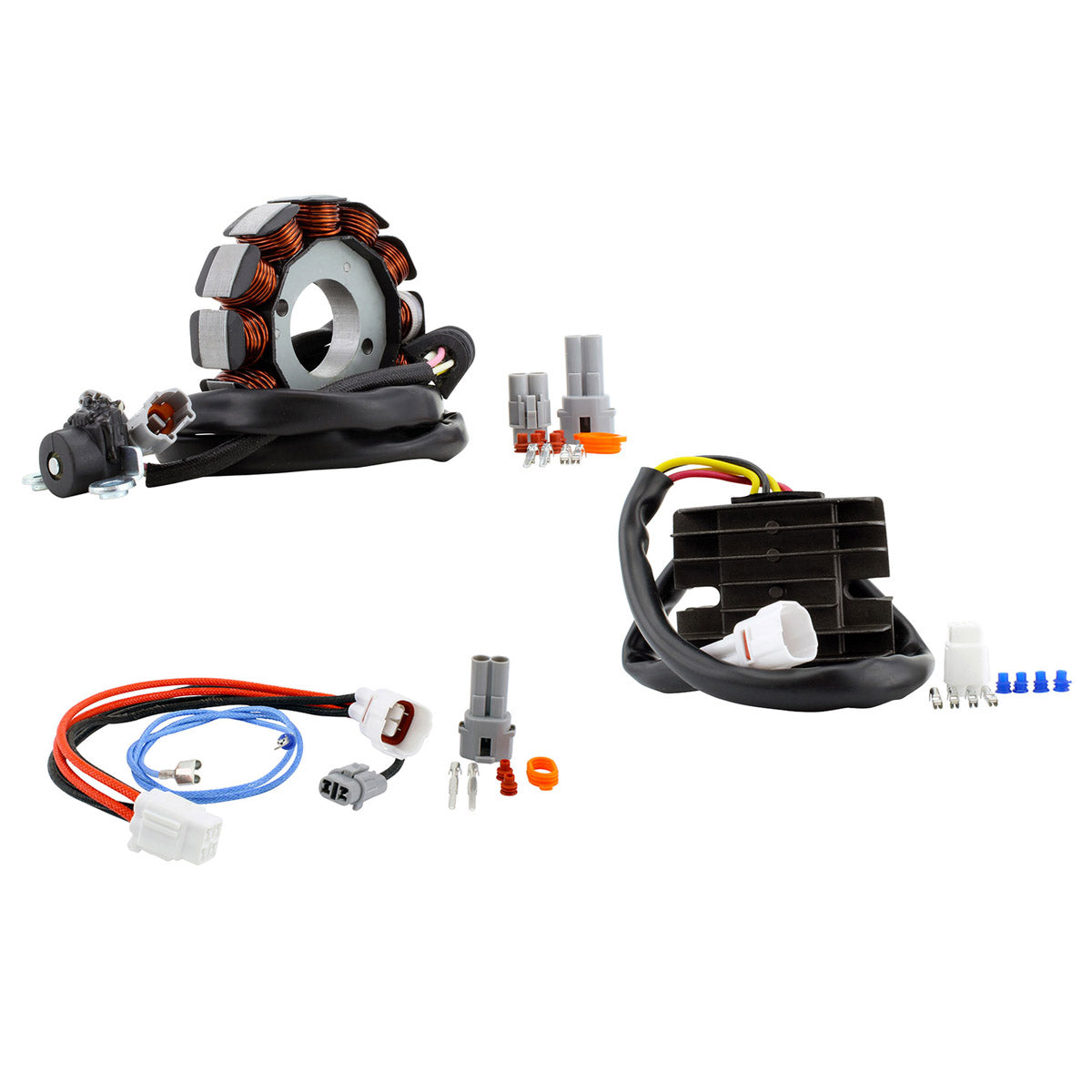

Brand new HO stator pick up coils and heavy duty regulator rectifier Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All product shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
High output stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- The Quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
Technical Data
Stator Dimensions
Interior diameter : 30 mm
Exterior diameter : 85 mm
Thickness : 10 mm
Length of wires stator to grommet : 180 mm
Length of wires grommet to plug : 900 mm
Length of pickup coil's wire to grommet : 90 mm
Other specifications :
Number of wires : 4
Number of plugs : 2
Number of pins : 4
Wire to wire resistance :
Pickup : White to Red = 275 ohms +/- 20%
Alternator : White to Yellow = 0.4 ohms +/- 20%
Voltage regulator rectifier Dimensions
Width : 63 mm
Length : 78 mm
Height: 26 mm
Fixation holes center to center : 60 mm
Wires length: 450 mm
Other specifications :
Number of plugs : 1
Number of pins : 4
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22430
Fitment:
- 2004-2009 Yamaha YFZ50
Note: Image is for reference only, actual product may vary slightly.
