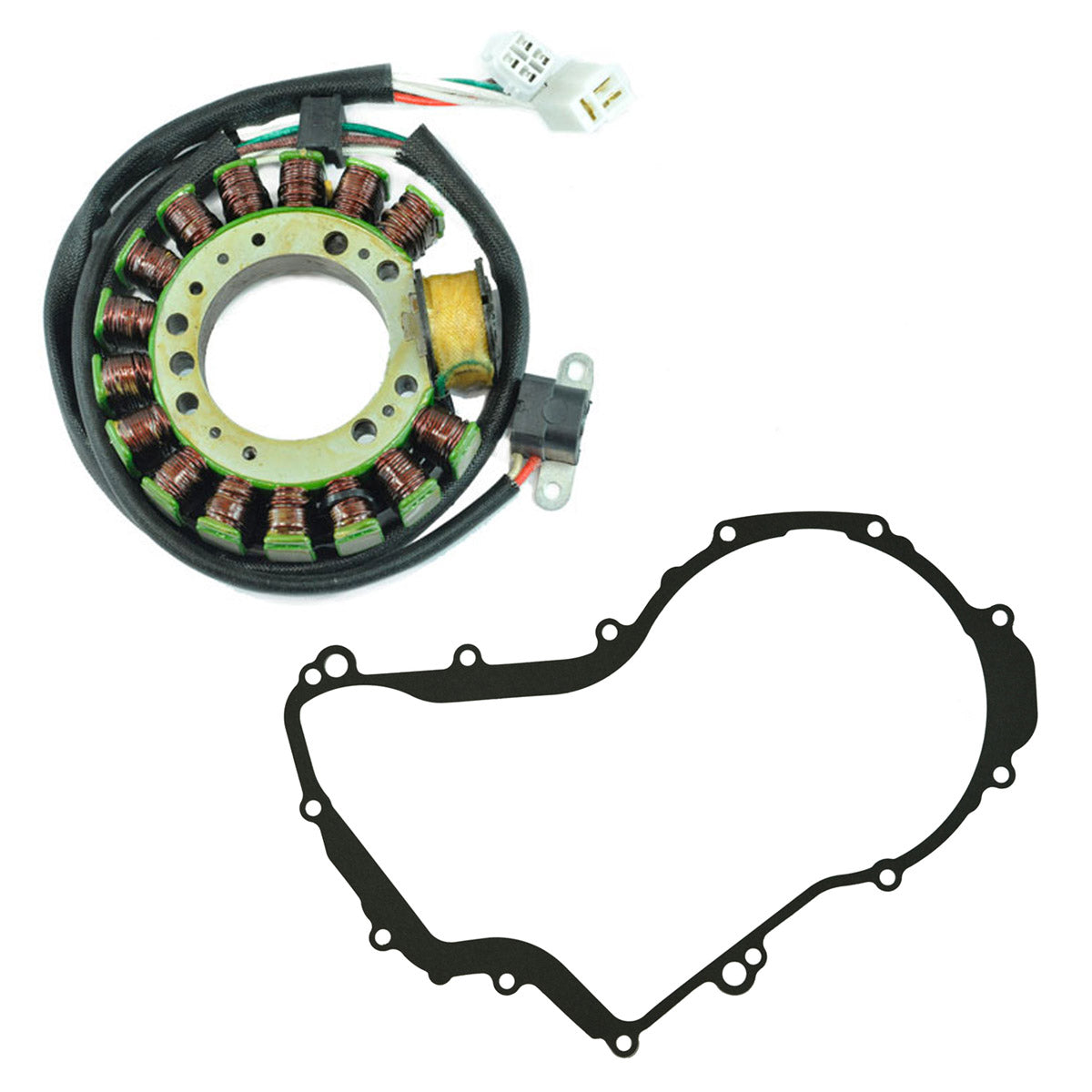

RMStator Stator Stator And Crankcase Cover Gasket Kit RM22605

Brand new kit aftermarket stator + crankcase cover gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Stator crankcase cover gasket included
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Stator Dimensions :
Interior diameter : 54mm
Exterior diameter : 115mm
Thickness : 14mm
Length of wires stator to grommet : 135mm
Length of wires grommet to plug : 480mm
Length of pickup coil's wire to grommet : 210mm

Other specifications :

Number of wires : 7
Number of plugs : 1
Number of pins : 7

Wire to wire resistance :

Alternator : White between each White = 0.4 ohms +/-20%
Pickup : White to Red = 570 ohms +/-20%
Source : Green to Brown = 318 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM22605

Fitment:

• 1998-1999 Yamaha Big Bear 350 YFM350FW 4x4
• 1997 Yamaha Big Bear 350 YFM350FW 4x4 SE
• 1999 Yamaha Big Bear 350 YFM350U 2x4
• 2000-2001 Yamaha Wolverine 350 YFM350X

Note: Image is for reference only, actual product may vary slightly.
