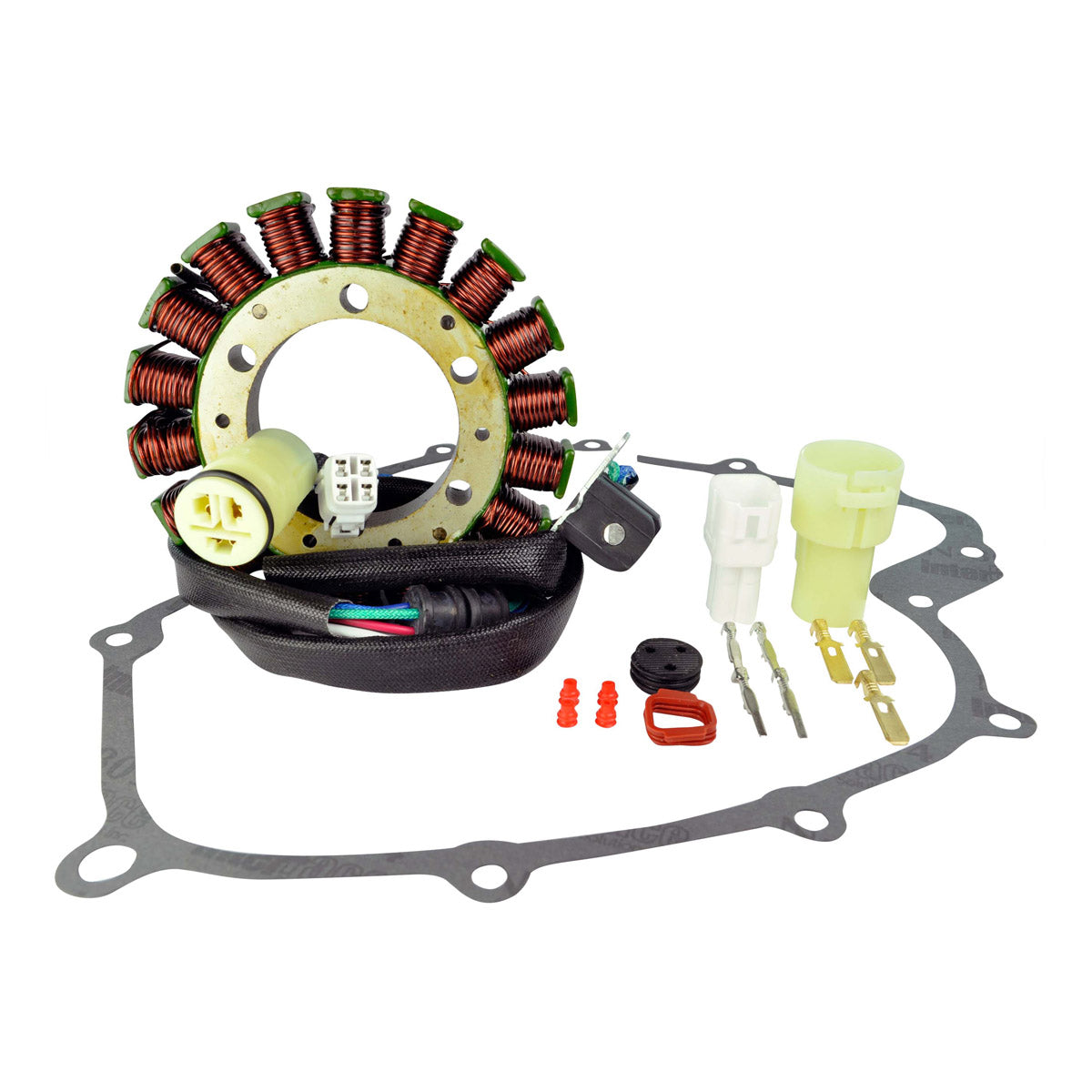

RMStator Stator Kit With And Cover Gasket RM22611
Customer Ratings
RMStator Stator Kit With And Cover Gasket RM22611
RMStator Stator Kit With And Cover Gasket RM22611
Brand new aftermarket High Output Stator + Crankcase Cover Gasket
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Technical Data
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 14 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 500 mm
Length of pickup coil's wire to grommet : 150 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : White Between Each White = 0.4 ohms +/-20%
Pickup : Blue To Green = 450 ohms +/-20%
Position sensor : Red To White/Blue = 0.4 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22611
Fitment:
- 2002-2008 Yamaha Grizzly 660 YFM660FA 4x4
- 2004-2007 Yamaha Rhino 660 YXR660FA 4x4
Note: Image is for reference only, actual product may vary slightly.
