RMStator Generator Stator Kit With Cover Gasket RM22612
Customer Ratings
RMStator Generator Stator Kit With Cover Gasket RM22612
RMStator Generator Stator Kit With Cover Gasket RM22612

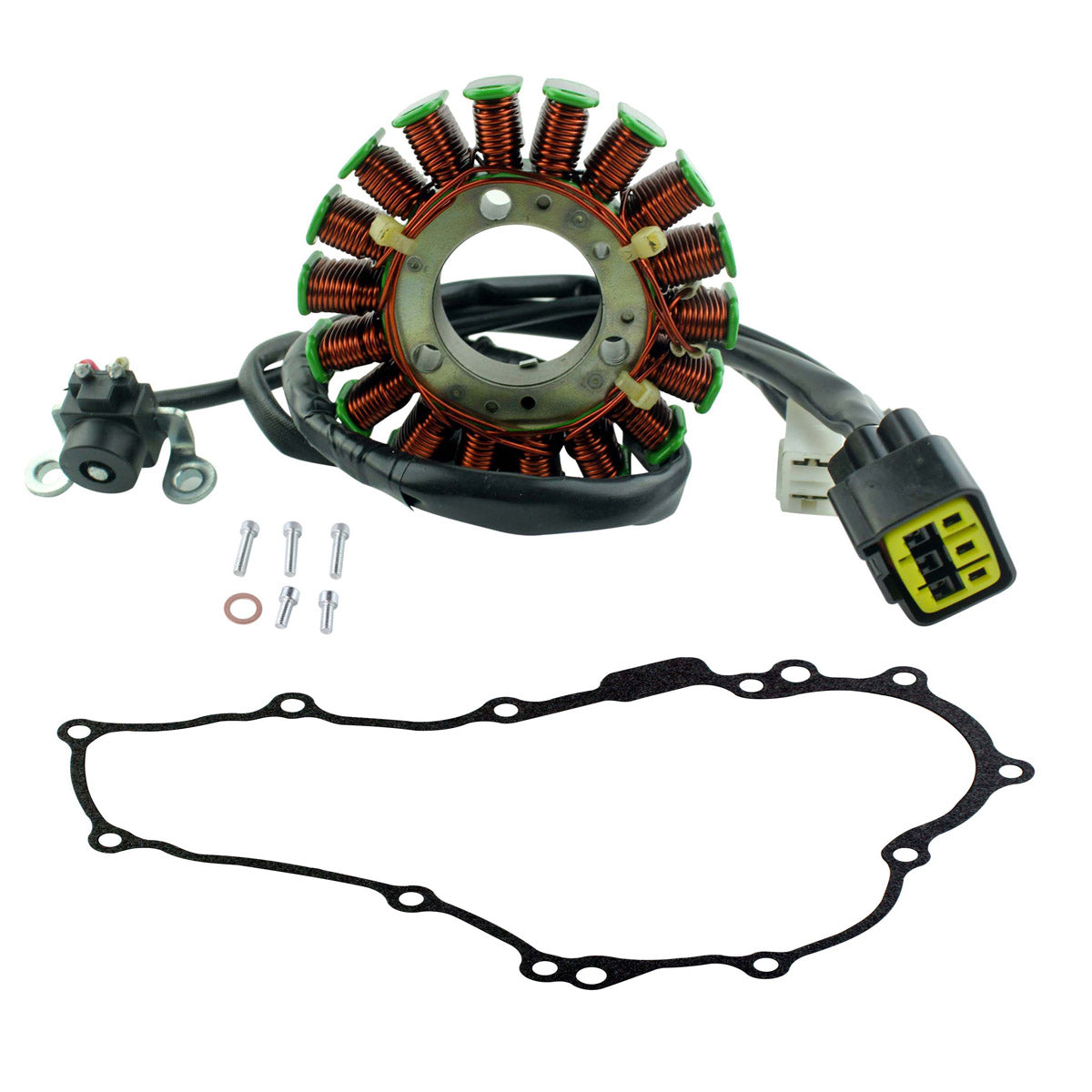

Brand New Yamaha Recall Kit Stator + Bolt Set + Stator Crankcase Cover Gasket
Recall on your stator?
Going to the dealership to get your recall taken care of means your bike won't be available for 3 weeks.
When you need your bike ready yesterday, look for other options.
We will ship your part fast enough for you to receive it as soon as tomorrow, so you can have it installed immediately.
With so many OEM recalls these days, riders are ripe for reliable parts.
With over 20 years of specializing in rebuilding and manufacturing stators, we give a reliable alternative to the not always reliable OEM parts.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Brand new stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
Technical Data
Stator Dimensions:
Interior diameter : 35mm
Exterior diameter : 98mm
Thickness : 15mm
Length of wires stator to grommet : 140mm
Length of wires grommet to plug : 400mm
Length of pickup coil's wire to grommet : 85mm
Other specifications :
Number of wires : 7
Number of plugs : 3
Number of pins : 9
Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : Pink to White = 265ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22612
Fitment:
- 2008-2016 Yamaha WR250R
- 2008-2011 Yamaha WR250X
Note: Image is for reference only, actual product may vary slightly.
