RMStator 100W Stator Kit With External Ignition Coil, Flywheel and Puller
Customer Ratings
RMStator 100W Stator Kit With External Ignition Coil, Flywheel and Puller
RMStator 100W Stator Kit With External Ignition Coil, Flywheel and Puller

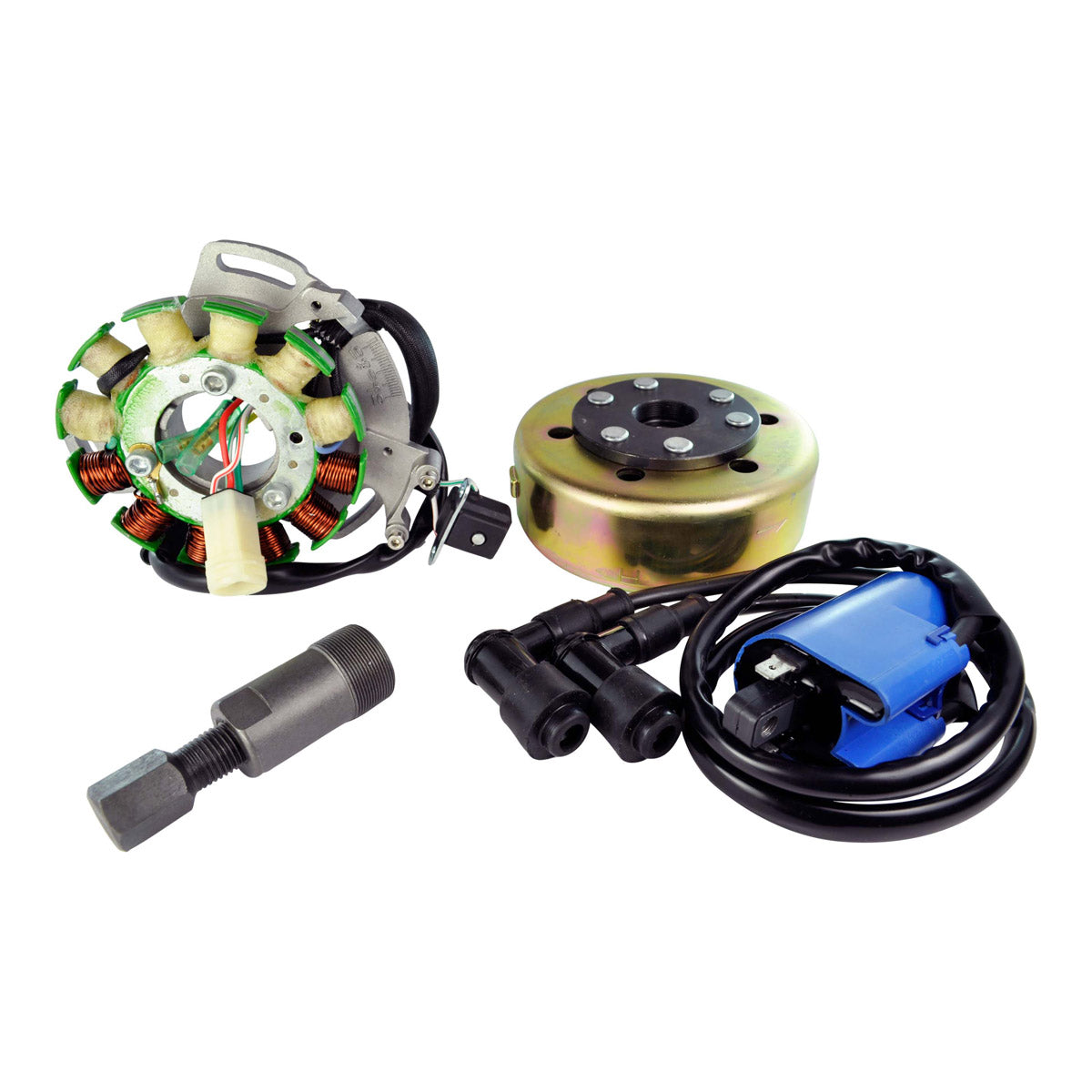

Brand New Kit Stator + Flywheel + External Ignition Coil + Flywheel Puller
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
High Output Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Back Plate included
RMSTATOR is offering a new replacement flywheel with stronger magnets for your Suzuki and Kawasaki, this flywheel can be used as a direct replacement to the OEM.
We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm's.External Ignition Coil- Highest grade of lamination materials
- Spark plug cap(s) included
- 27 MM x 1.0 Left hand male
Technical Data
Stator
Number of wires : 6
Number of terminals : 6
Alternator : Yellow to Black = 0.8 ohms+/-20%
Source 1 : Green to Red = 18 ohms+/-20%
Pickup 1 : White/Green to White/Red = 115 ohms+/-20%
Interior Diameter: 42mm
Exterior Diamter: 103mm
Thickness: 17mm
External Ignition coil
Bracket center to Bracket: 90mm
Flywheel
Diameter: 130 mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22803
Fitment:
- 1987-1994 Yamaha Banshee 350 YFZ350
Note: Image is for reference only, actual product may vary slightly.
