RMStator Stator Kit With Ignition Coil RM22809
RMStator Stator Kit With Ignition Coil RM22809

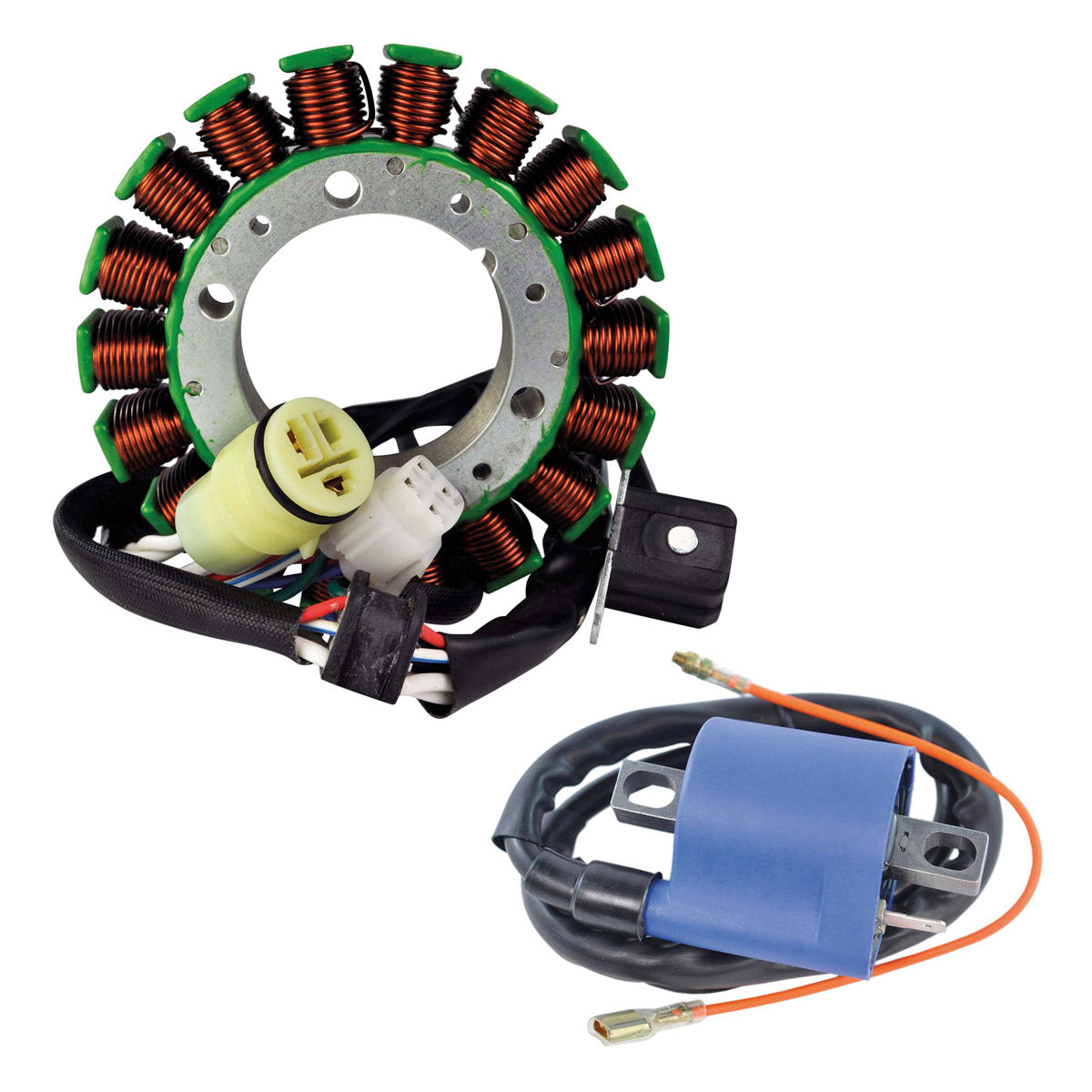

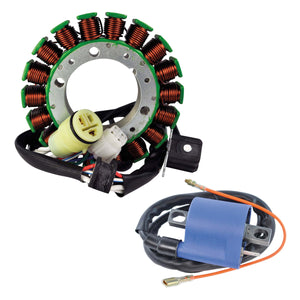

Brand New Kit High Output Stator + External Ignition Coil
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
- All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- You must re-install your OEM spark plug cap(s)
- Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install
- Highest grade of lamination materials
Technical Data
Stator Dimensions :
Interior diameter: 53 mm
Exterior diameter: 114 mm
Thickness: 13 mm
Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7
Wire to wire resistance:
Alternator : White between each White = 0.4 ohms+/-20%
Pickup: Green to Blue = 518 ohms =+/-20%
Position Sensor: Red to White/Blue = 0.1 ohms+/-20%
Dimensions External Ignition Coil :
Distance between fixation holes: 60 mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22809
Fitment:
- 2000-2012 Yamaha Big Bear 400 YFM400
- 2007 Yamaha Big Bear 400 YFM400FB 4x4 IRS
- 2004-2013 Yamaha Raptor 350 YFM350R
- 2005-2007 Yamaha Raptor 350 YFM350RSE Special Edition
- 2002-2004 Yamaha Warrior 350 YFM350X
Note: Image is for reference only, actual product may vary slightly.
