RMStator CDI Box RM22822
Customer Ratings
RMStator CDI Box RM22822
RMStator CDI Box RM22822
WE HIGHLY RECOMMEND REPLACING THE VOLTAGE REGULATOR AT THE SAME TIME AS THE CDI UNIT.
IT IS THE REASON FOR CDI FAILURES.

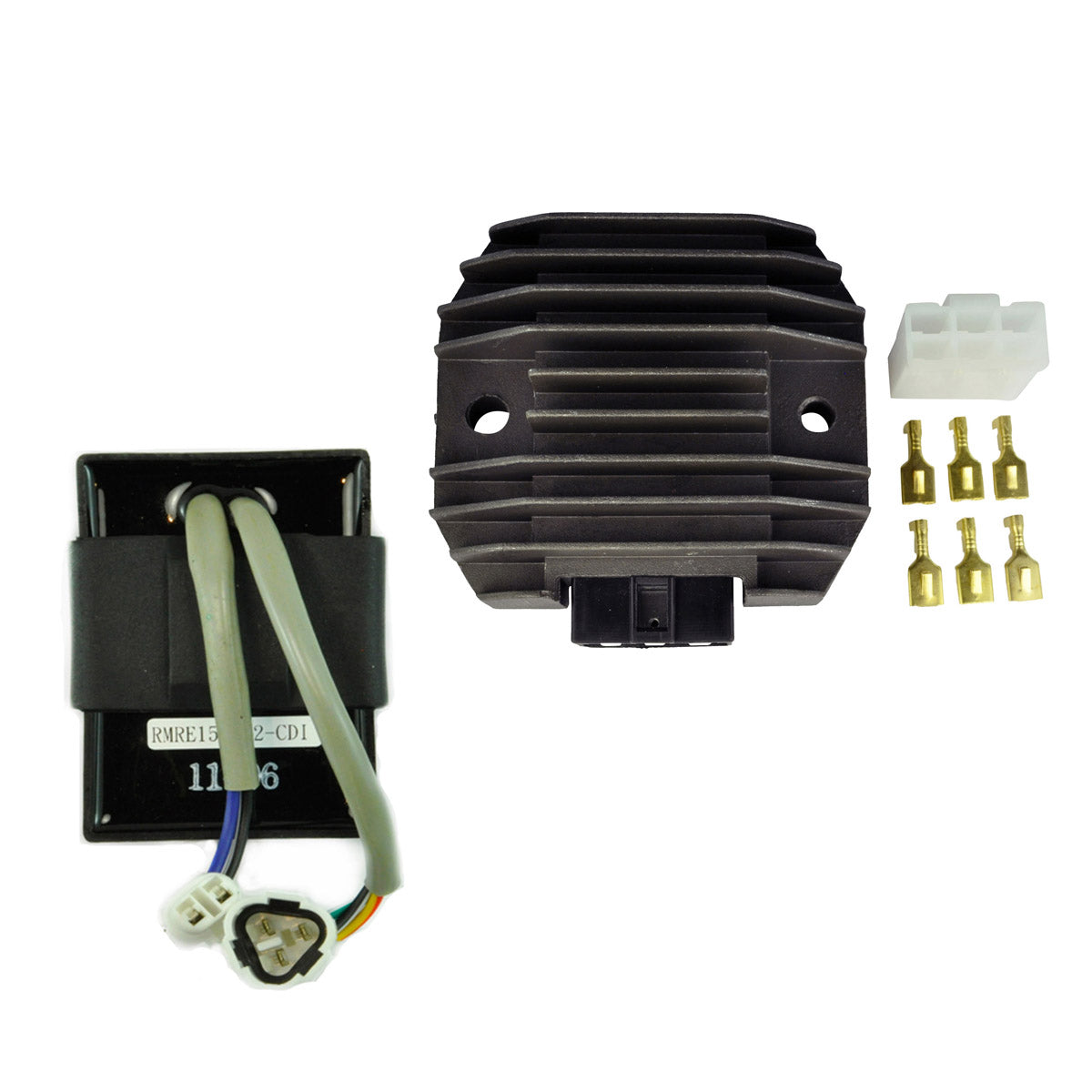

Brand New Kit CDI Box + Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The Quality exceeds the OEM equipment
- All shipped products are tested
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Voltage regulator rectifier
- Improved heat sink and charging capabilities
- Higher grade of electric components
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
CDI Box- Original timing curve
- Higher grade of electronic components
Technical Data
Voltage Regulator Rectifier:
Width : 79mm
Length : 89mm
Height: 27mm
Fixation holes center to center : 70mm
Other specifications :
Number of plugs : 1
Number of pins : 6
CDI Box
Number of plugs: 2
Number of pins: 5
Height: 22mm
Length: 74mm
Width: 80mm
The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this; we recommend that you rule everything else out before replacing the CDI box
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22822
Fitment:
- 1988-1991 Kawasaki Bayou 300 KLF300B
Note: Image is for reference only, actual product may vary slightly.
