RMStator Stator Kit With , Hp CDI Box , Ignition Coil And Cover Gasket RM22831
Customer Ratings
RMStator Stator Kit With , Hp CDI Box , Ignition Coil And Cover Gasket RM22831
RMStator Stator Kit With , Hp CDI Box , Ignition Coil And Cover Gasket RM22831

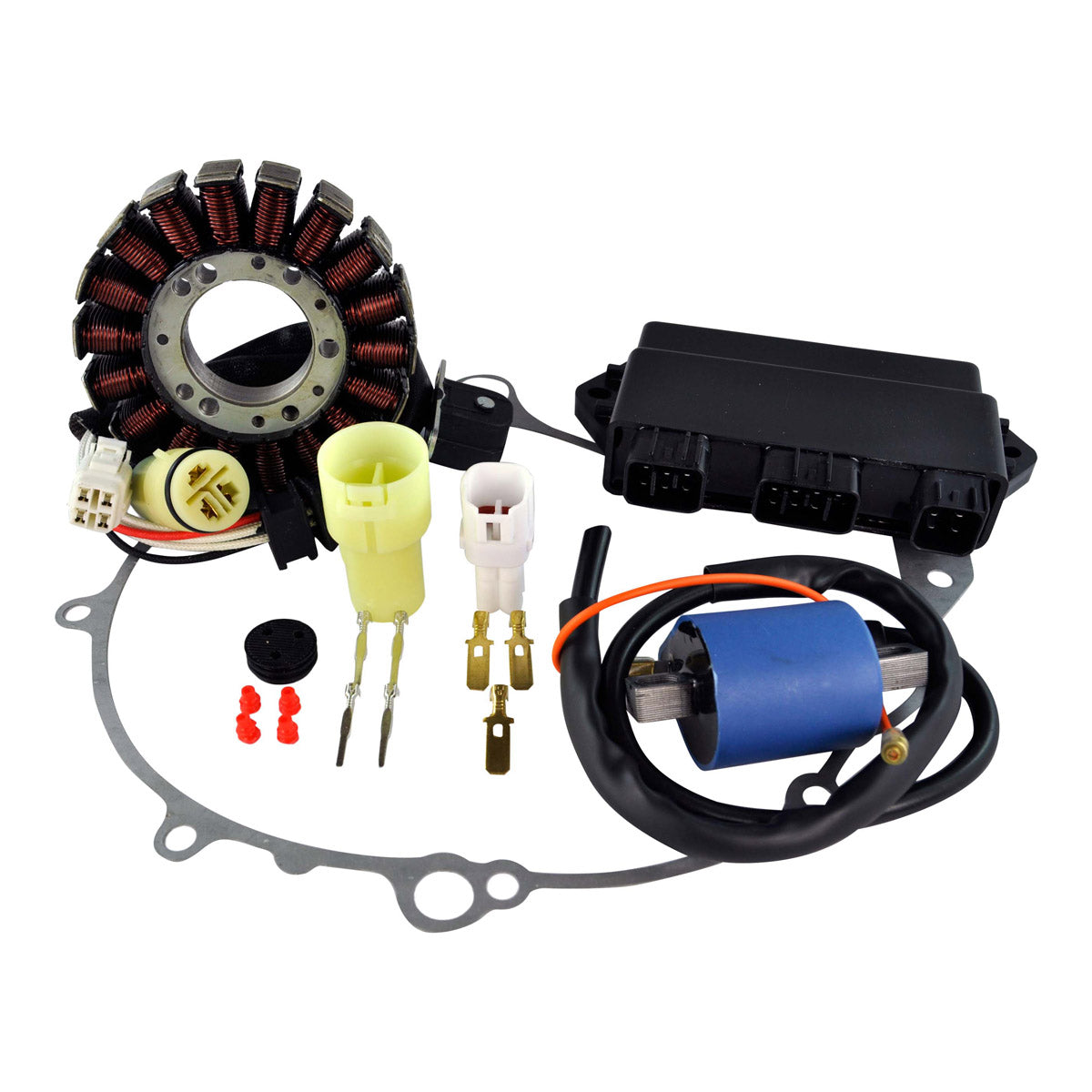

Brand New Kit High Output Stator + PeakRPM CDI Box + External Ignition Coil + Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- All product shipped are tested
- All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components.
- The Quality exceeds the OEM equipment
- You must re-install your OEM spark plug cap(s).
- Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install..
- Highest grade lamination materials.
Technical Data
Stator Dimensions :
Interior diameter: 34 mm
Exterior diameter: 94 mm
Thickness: 13 mm
Other specifications:
Number of wires: 7
Number of plugs: 2
Number of pins: 7
Wire to wire resistance:
Alternator: White between each White = 0.4 ohms +/-20%
Pickup: Blue to Green = 450 ohms =+/-20%
Position Sensor: Black to Red = 0.1 ohms+/-20%
Dimensions CDI Box :
Height: 27mm
Length: 110mm
Width: 78mm
Distance between fixation holes: 125mm
Other specifications:
Number of plugs: 3
Number of pins: 18
Dimensions External Ignition Coil :
Distance between fixation holes: 60 mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22831
Fitment:
- 2001 Yamaha Raptor 660R YFM660R
Note: Image is for reference only, actual product may vary slightly.
