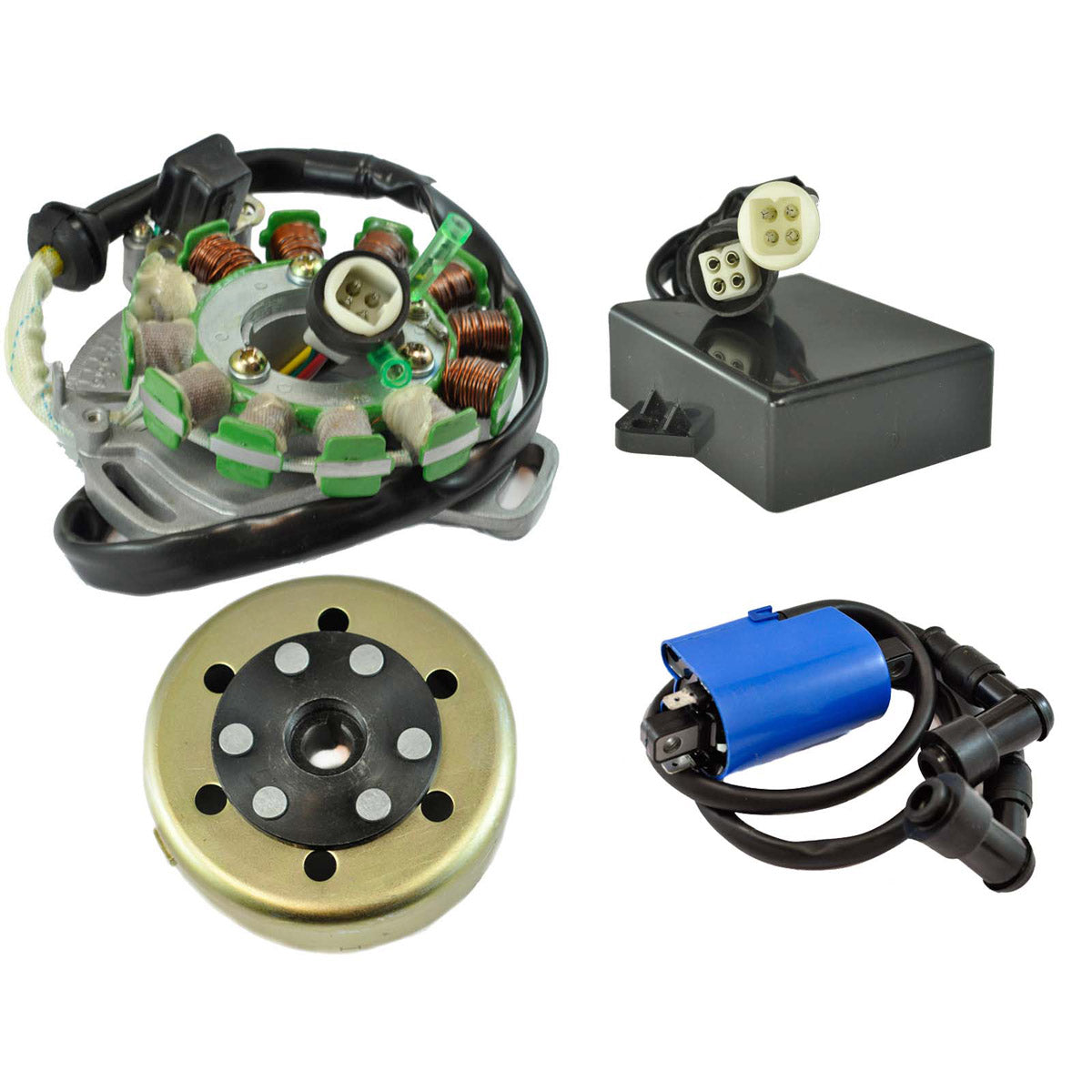

RMStator 200 W Stator And Regulator Rectifier, Peak RPM CDI Box, Ignition Coil and Flywheel Kit

Brand new HO Stator + PeakRPM CDI Box + Regulator rectifier + Flywheel + External ignition coil Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Adjustable timing plate to advance and retard up to 10 degrees included

• 12 Volts regulator used by Baja winners
• For use with all standard halogen and quartz lights
• Precise voltage control, eliminates light burnout
• Reduce flickering and dimming
• Simple installation
• Works with all other OEM parts
• Rated at 225 watts

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

RMSTATOR is offering a new replacement flywheel with stronger magnetsfor your YAMAHA YFZ350 BANSHEE, this flywheel can be used as a direct replacement to the OEM.

We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm's.

• The Quality exceeds the OEM equipment

• Highest grade of lamination materials
• The Quality exceeds the OEM equipment
• Spark plug cap(s) included

If your old parts are defective, RM Stator offer replacements parts of high qualities at a fraction of the cost of genuine parts.

Technical Data

Stator
Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 14mm
Length of wires stator to grommet : 90mm
Length of wires grommet to plug : 380mm
Length of pickup coil's wire to grommet : 100mm

Other specifications :

Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :

Alternator : Black to Yellow = 0.2 ohms +/-20%
Pickup : White/Red to White/Green = 100 ohms +/-20%
Source : Red to Green = 15 ohms +/-20%

CDI Box
Number of plugs : 2
Number of pins : 8
Height : 25 mm
Lenght : 85mm
Width : 71mm
Fixation holes center to center : 85mm
Wires lenght : 120mm 140mm

Flywheel
Exterior diameter : 128mm
Interior diameter : 105mm
Interior diameter center housing: 21mm
Exterior diameter center housing : 34mm
Thickness Exterior : 12mm
Thickness Interior : 7mm

External ignition coil
Bracket center to Bracket: 90mm
Wires lenght : 590 mm
Primary Resistance: 0.4?
Secondary Resistance: 6.0K?
Damped Resistance: 5K
Voltage Transfer Ratio: 150:1
Insulation Resistance: >1000M

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM22846

Fitment:

• 1987-1994 Yamaha Banshee 350 YFZ350

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
RM22846
