RMStator 100W Stator RM22847
Customer Ratings
RMStator 100W Stator RM22847
RMStator 100W Stator RM22847

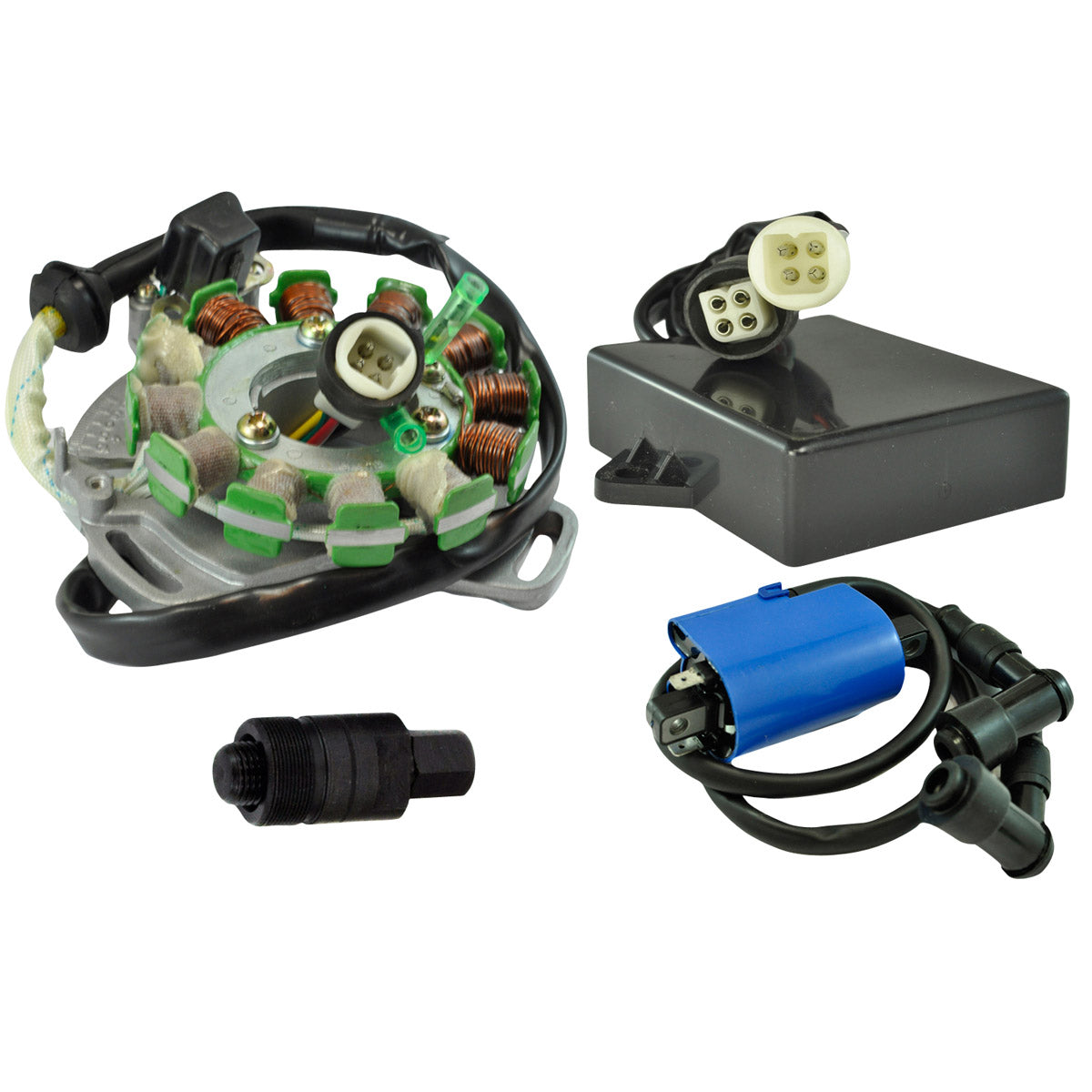

Brand new kit High Output Stator + External ignition Coil + Flywheel Puller
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
High Output stator assembly 100 watts- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Back Plate included
- Highest grade of lamination materials
- Spark plug cap(s) included
Brand new aftermarket PeakRPM CDI box
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
- The Quality exceeds the OEM equipment
- 27 MM x 1.0 Left hand male
Technical Data
Stator
Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 5mm
Length of wires stator to grommet : 125mm
Length of wires grommet to plug : 310mm
Length of pickup coil's wire to grommet : 90mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins :6
Wire to wire resistance :
Alternator : Black to yellow = 0.2 ohms +/-20%
Pickup : White/Red to White/Green = 125 ohms +/-20%
Source : Green to Red = 22 ohms +/-20%
External Ignition Coil
Bracket center to bracket : 90mm
Primary Resistance: 0.4?
Secondary Resistance: 6.0K?
Damped Resistance: 5K
Voltage Transfer Ratio: 150:1
Insulation Resistance: >1000M
CDI
Dimensions:
Height: 25mm
Length: 85mm
Width: 71mm
Fixation holes center to center : 85mm
Other specifications:
Number of plugs: 2
Number of pins: 8
Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this; we recommend that you rule everything else out before replacing the CDI box..
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22847
Fitment:
- 1987-1994 Yamaha Banshee 350 YFZ350
Note: Image is for reference only, actual product may vary slightly.
