RMStator 200 W Stator, AC Regulator and High Performance CDI Box Kit RM22859
Customer Ratings
RMStator 200 W Stator, AC Regulator and High Performance CDI Box Kit RM22859
RMStator 200 W Stator, AC Regulator and High Performance CDI Box Kit RM22859

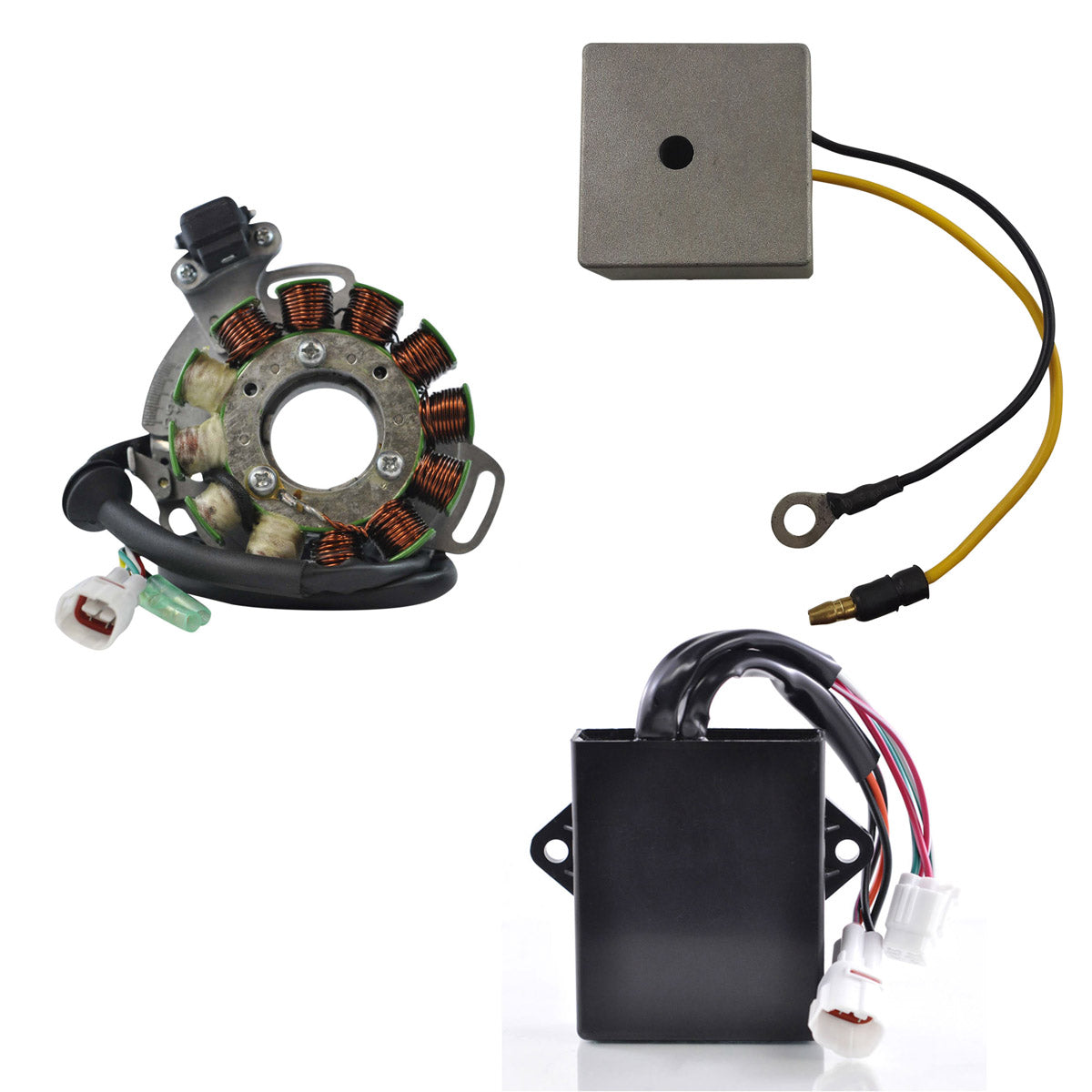

Brand New Kit Stator + AC Regulator + PeakRPM CDI Box
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
High Output Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Back Plate included
For a limited time we are including a FREE Tympanum AC regulator required to run the extra wattage supplied from our 200W stator.
- AC Regulator
- 12 Volts regulator used by Baja winners
- For use with all standard halogen and quartz lights
- Precise voltage control, eliminates light burnout
- Reduce flickering and dimming
- Simple installation
- Works with all other OEM parts
- Rated at 225 watts
- Our PeakRPM CDI Box provides the optimal output for your ride
- Higher grade of electronic components
Technical Data
Stator
Interior diameter : 103mm
Exterior diameter : 34mm
Thickness : 27mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 520mm
Length of pickup coil's wire to grommet : 80mm
Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6
Wire to wire resistance :
Alternator : Yellow to Black = 0.4ohms +/-20%
Pickup : White/Green to White/Red = 115ohms +/-20%
Source : Green to Red = 12ohms +/-20%
Dimensions AC Regulator:
Height: 20 mm
Length: 45 mm
Width: 45 mm
Other specifications:
Number of terminals: 2
Wires length: 130 mm
Height: 25mm
Length: 87mm
Width: 71mm
Fixation holes center to center: 85mm
Wires length: 140mm
Other specifications:
Number of plugs: 2
Number of pins: 8
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22859
Fitment:
- 1995-1996 Yamaha Banshee 350 YFZ350
Note: Image is for reference only, actual product may vary slightly.
