RMStator Stator Stator And Crankcase Cover Gasket And Ignition Coil Kit RM22862
Customer Ratings
RMStator Stator Stator And Crankcase Cover Gasket And Ignition Coil Kit RM22862
RMStator Stator Stator And Crankcase Cover Gasket And Ignition Coil Kit RM22862

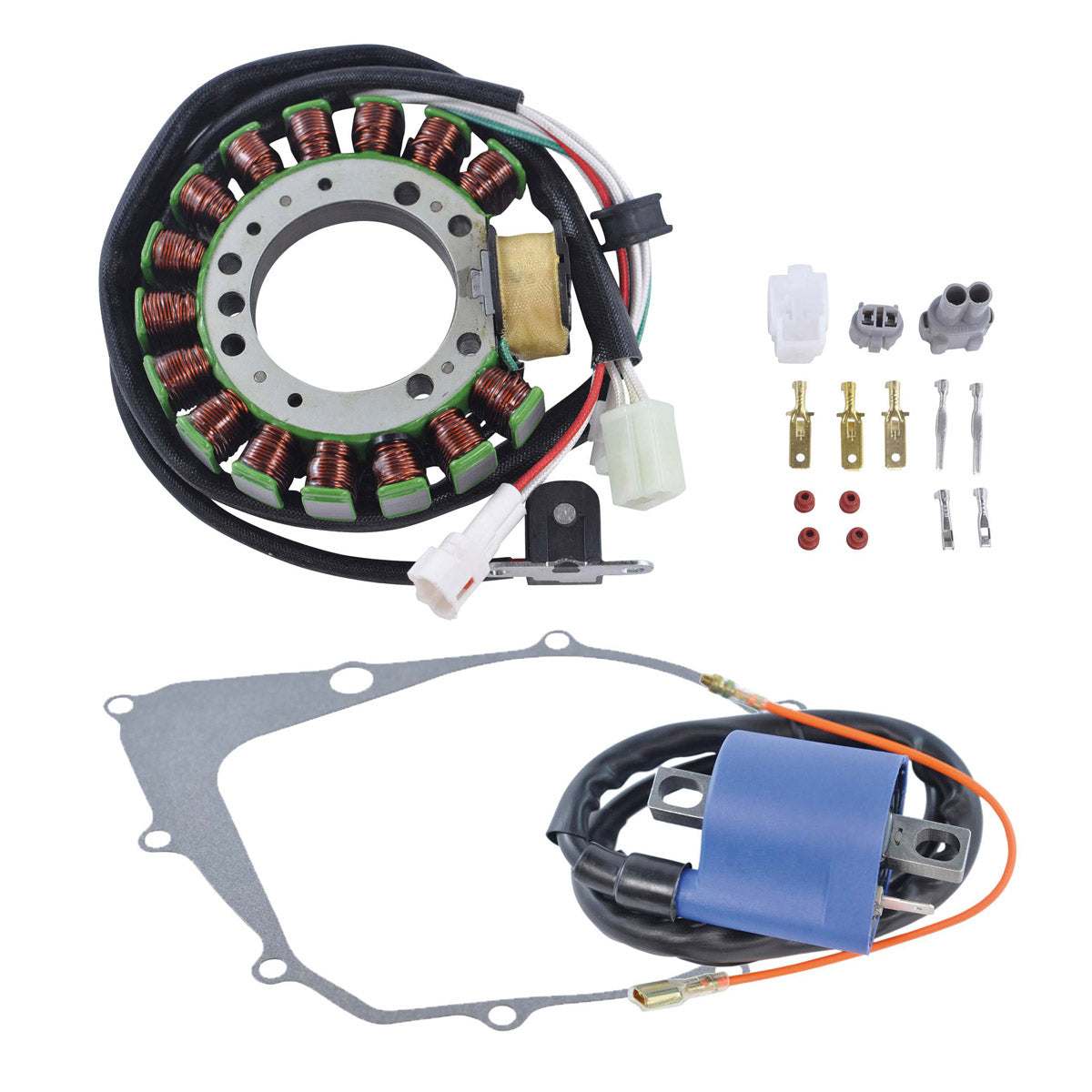

Brand New Kit Stator + External Ignition Coil + Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Crankcase cover gasket included
External Ignition Coil
- You must re-install your OEM spark plug cap(s)
- Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install
- Highest grade of lamination materials
Technical Data
Stator Dimensions
Dimensions :
Interior diameter : 53 mm
Exterior diameter : 115 mm
Thickness : 14 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 420 mm
Length of pickup coil's wire to grommet : 300 mm
Other specifications :
Number of wires : 7
Number of plugs : 3
Number of pins : 7
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : White to Red = 450 ohms +/-20%
Source : Green to Brown = 320 ohms +/-20%
External ignition coil
Fixation holes center to center: 55 mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22862
Fitment:
- 1995-1997 Yamaha Big Bear 350 YFM350FW 4x4
- 1997-1998 Yamaha Big Bear 350 YFM350U 2x4
- 1993-1997 Yamaha Kodiak 400 YFM400A
- 1995 Yamaha Moto 4 YFM350ER
- 1996-2001 Yamaha Warrior 350 YFM350X
- 1996-1997 Yamaha Warrior 350 YFM350X Maine NH
Note: Image is for reference only, actual product may vary slightly.
