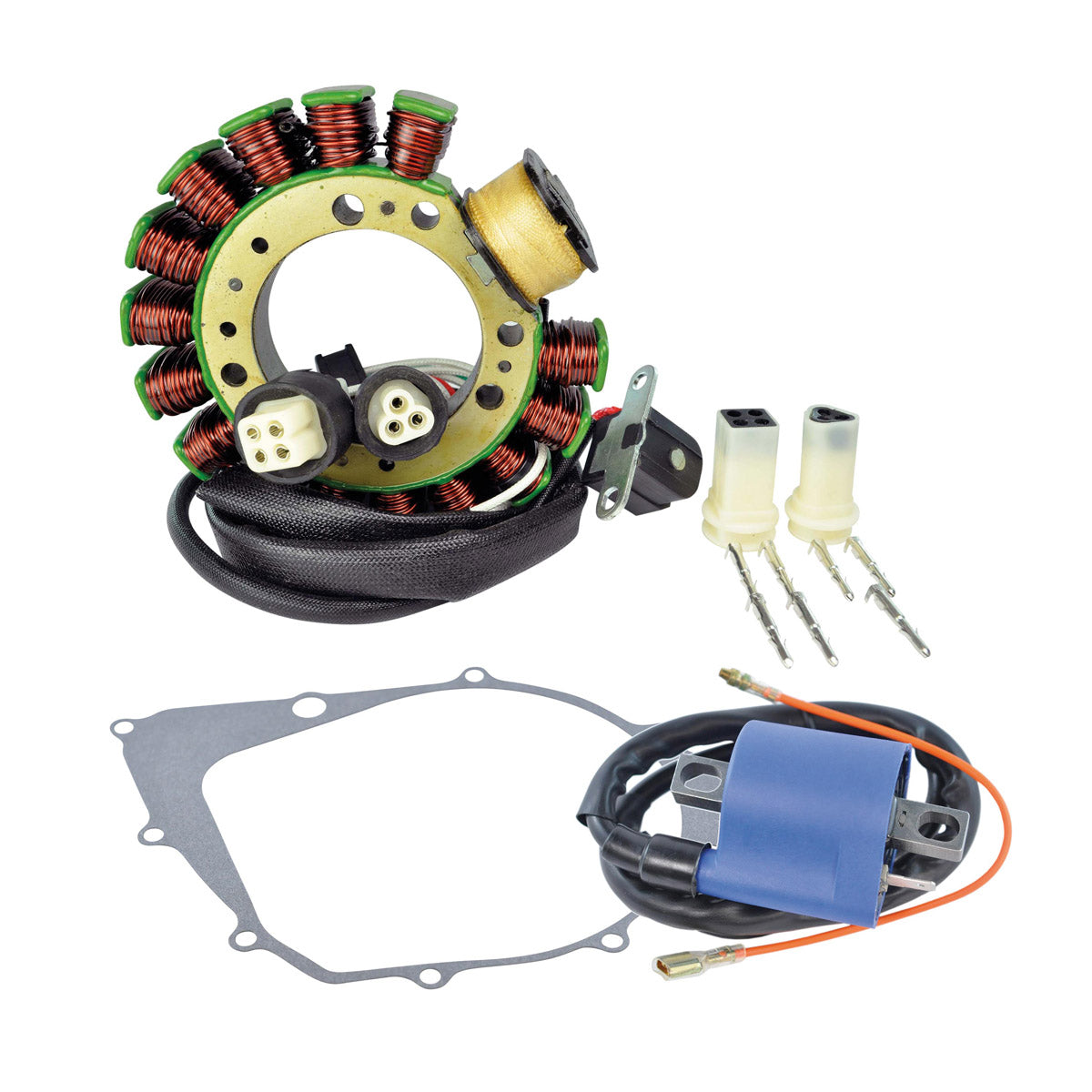

RMStator Stator Kit With External Ignition Coil, and Crankcase Cover Gasket
Customer Ratings
RMStator Stator Kit With External Ignition Coil, and Crankcase Cover Gasket
RMStator Stator Kit With External Ignition Coil, and Crankcase Cover Gasket
Brand New Kit Stator + External Ignition Coil + Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Stator:- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- You must re-install your OEM spark plug cap(s)
- Once your OEM spark plug cap(s) are re-installed, our part becomes a Plug-and-play unit, direct fit, and easy to install
- Highest grade of lamination materials
Technical Data
Stator
Interior diameter : 53mm
Exterior diameter : 115mm
Thickness : 13mm
Length of wires stator to grommet : 110mm
Length of wires grommet to plug : 500mm
Length of pickup coil's wire to grommet : 130mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Pickup : White to Red = 570ohms +/-20%
Source : Brown to Green = 315ohms +/-20%
External ignition coil
Bracket to bracket center 55 mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22863
Fitment:
- 1988 Yamaha Big Bear 350 YFM350FW 4x4
- 1990-1994 Yamaha Big Bear 350 YFM350FW 4x4
- 1990 Yamaha Moto 4 YFM350ER
- 1992-1994 Yamaha Moto 4 YFM350ER
- 1990-1995 Yamaha Warrior 350 YFM350X
- 1991-1995 Yamaha Warrior 350 YFM350X Maine NH
Note: Image is for reference only, actual product may vary slightly.
