RMStator Flywheel Kit RM22870

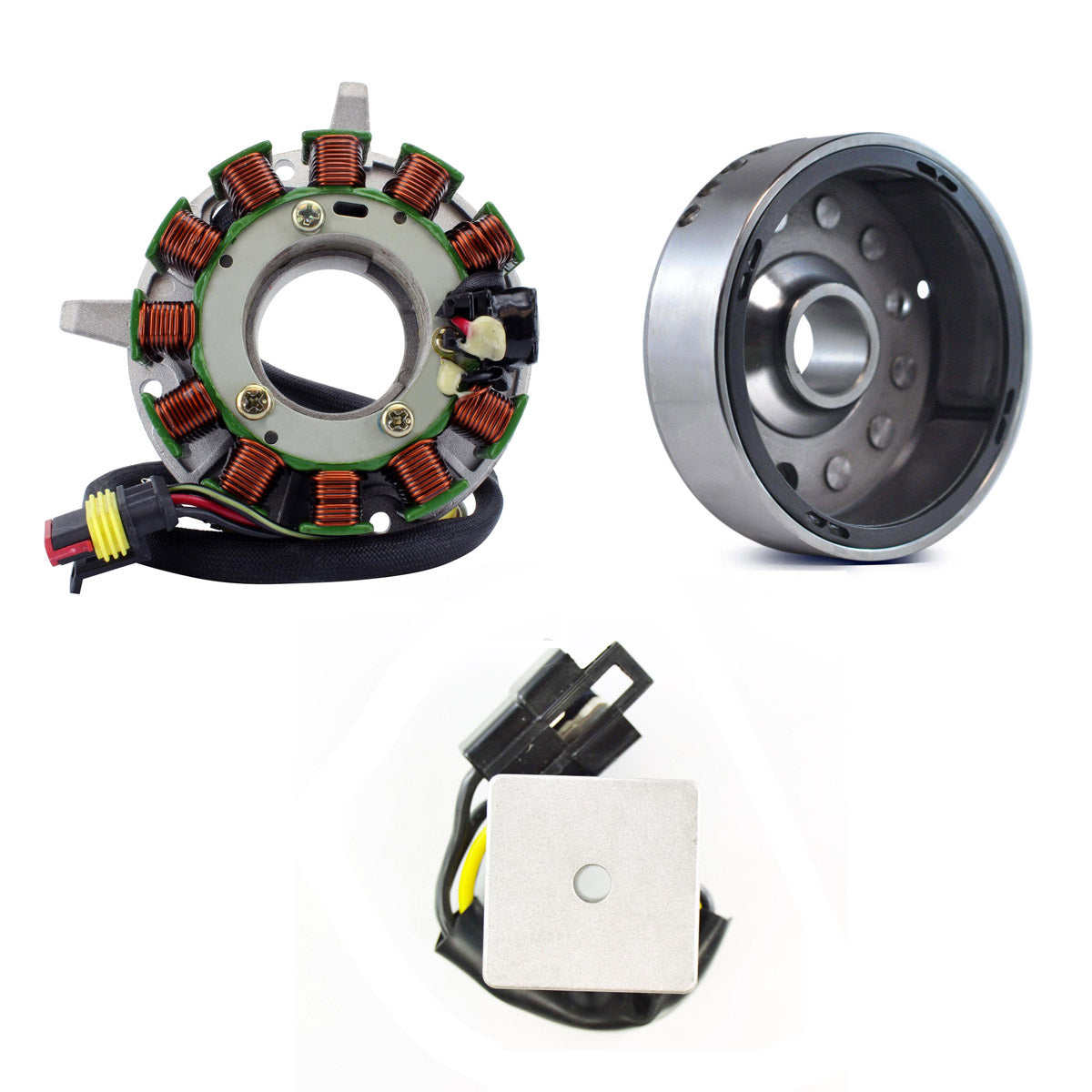

Brand New Magneto Flywheel + Stator + Voltage Regulator Rectifier Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Back Plate included
• Connector included

• No assembly required
• Higher grade of electric components
• The quality exceeds the OEM equipment

Technical Data

Stator

Dimensions :

Interior diameter : 43 mm
Exterior diameter : 110 mm
Thickness : 32 mm
Length of wires stator to grommet : 500 mm

Other specifications :

Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :

Alternator : Yellow to Yellow = 0.4 ohms +/-20%
Alternator : Yellow to Ground = 0.LSource : Red to Black = 80 ohms +/-20%

Dimensions:
Width: 41 mm
Length: 41 mm
Height: 21 mm
Wires length: 95 mm
Fixation hole center to edge: 20 mm

Other specifications:
Number of plugs: 1
Number of pins: 3
Number of wires: 4

Dimensions:
Exterior Diameter: 117 mm
Interior Diameter: 96 mm
Interior Diameter Center Housing: 24 mm
Exterior Diameter Center Housing: 35 mm
Thickness (exterior): 46 mm
Thickness (interior): 23 mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM22870

Fitment:

• 1998 Ski-doo Tundra II 280 Carb F/C
• 1998-2000 Ski-doo Tundra R 280 Carb F/C
• 2002-2005 Ski-doo Tundra R 280 Carb F/C

Note: Image is for reference only, actual product may vary slightly.
