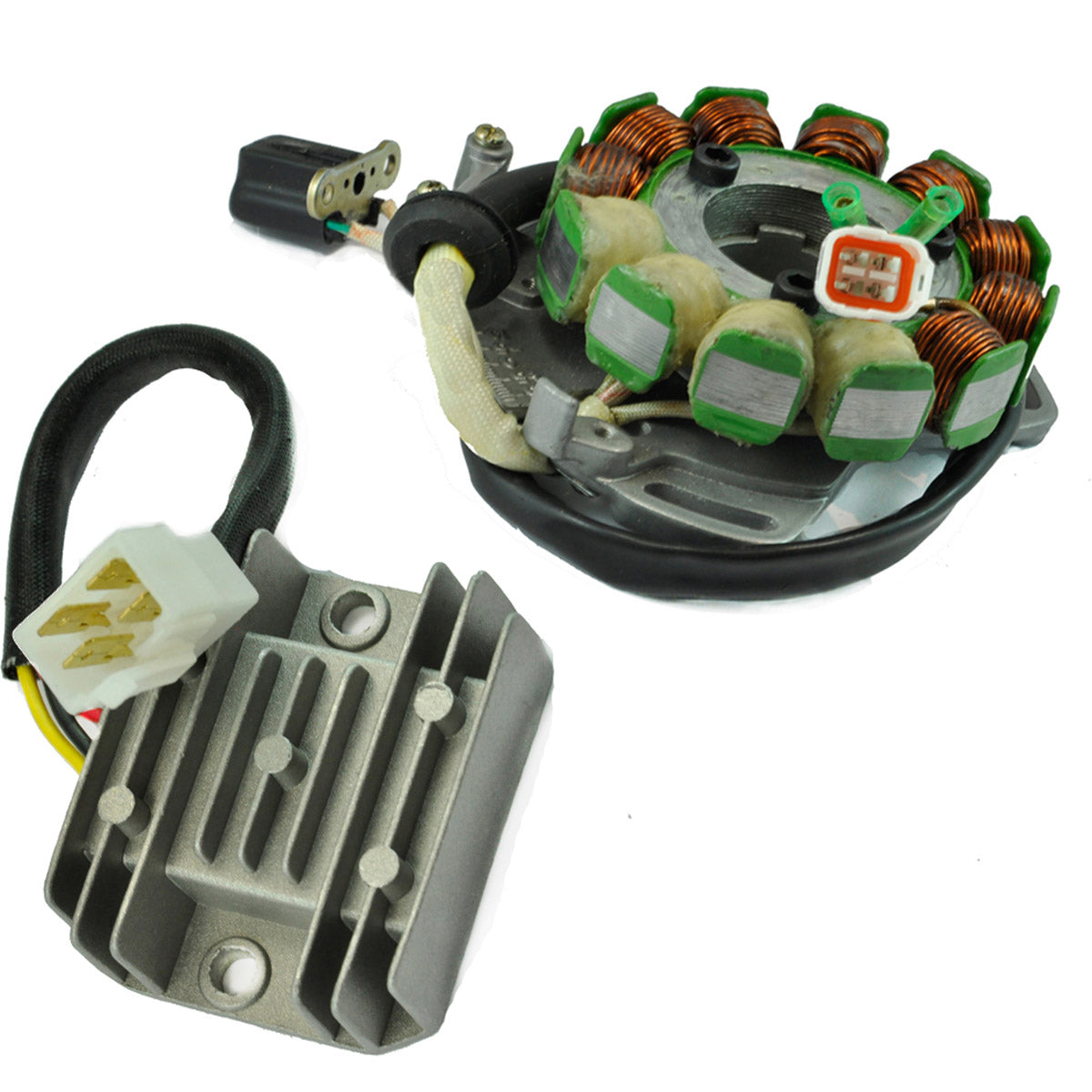

RMStator Stator Regulator Rectifier Kit RM22955

Brand new HO Stator + Voltage Regulator Rectifier Kit 200 watts

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• Adjustable timing plate to advance and retard up to 10 degrees included

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

• 12 volt regulator used by Baja winners
• Rated at 225 watts
• The Quality exceeds the OEM equipment
• Precise voltage control, eliminates light burnout
• Reduce flickering and dimming
• Improved heat sink and charging capabilities
• Higher grade of electric components

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

Technical Data

Stator
Number of wires : 6
Number of terminals : 6
Alternator : Yellow to Black = 0.4 ohms+/-20%
Pick up 1 : White/Green to White/Red = 115 ohms+/-20%
Source 1 = Green to Red 12 ohms+/-20%
Interior Diameter: 34mm
Exterior Diamter: 103mm
Thickness: ?27mm

Regulator rectifier
Number of wires : 4
Number of terminals : 4
Bracket center to center: 55 mm
Thickness: 22 mm
Height: 56 mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM22955

Fitment:

• 1995-2006 Yamaha Banshee 350 YFZ350

Note: Image is for reference only, actual product may vary slightly.
