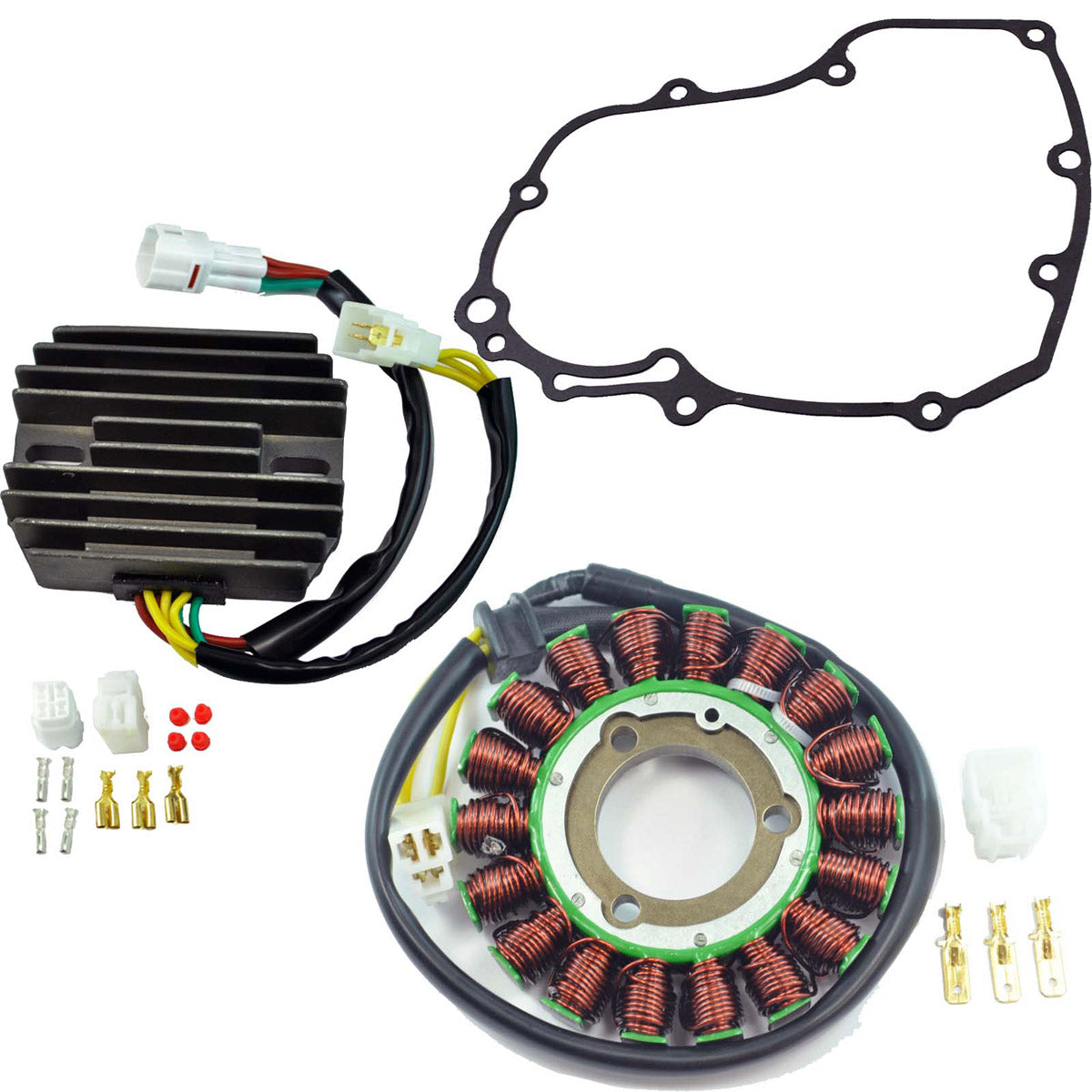

RMStator Heavy Duty Stator, Regulator & Gasket Hd Stator + Voltage Reg + Stator Cover Gask Kit
Customer Ratings
RMStator Heavy Duty Stator, Regulator & Gasket Hd Stator + Voltage Reg + Stator Cover Gask Kit
RMStator Heavy Duty Stator, Regulator & Gasket Hd Stator + Voltage Reg + Stator Cover Gask Kit
Brand new Stator + Voltage Regulator Rectifier + Gasket Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- Gasket included
At RMSTATOR, we believe that proper installation guarantees a longer lifetime. This is why we include, at no extra charge, a stator cover gasket and a dielectric grease tube.
Consult the connector's circle of death for more information on dielectric grease.
- The Quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
Technical Data
Stator
Dimensions :
Interior diameter : 36mm
Exterior diameter : 106mm
Thickness : 8mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 315mm
Length of pickup coil's wire to grommet : N/A
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins :3
Wire to wire resistance :
Alternator : Yellow Between each Yellow = 0.4 ohms +/-20%
Voltage regulator rectifier
Dimensions :
Width : 30mm
Length : 100mm
Height: 80mm
Wires length : 260mm 250mm
Fixation holes center to center : 80mm
Other specifications :
Number of plugs : 2
Number of wires : 7
Number of pins : 7
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22964
Fitment:
- 2006-2009 Suzuki GSXR600
- 2011-2015 Suzuki GSXR600
- 2006-2009 Suzuki GSXR750
- 2011-2015 Suzuki GSXR750
Note: Image is for reference only, actual product may vary slightly.
