RMStator Mosfet Stator + Mosfet Voltage Reg Rec + Gasket Kit RM22965
Customer Ratings
RMStator Mosfet Stator + Mosfet Voltage Reg Rec + Gasket Kit RM22965
RMStator Mosfet Stator + Mosfet Voltage Reg Rec + Gasket Kit RM22965

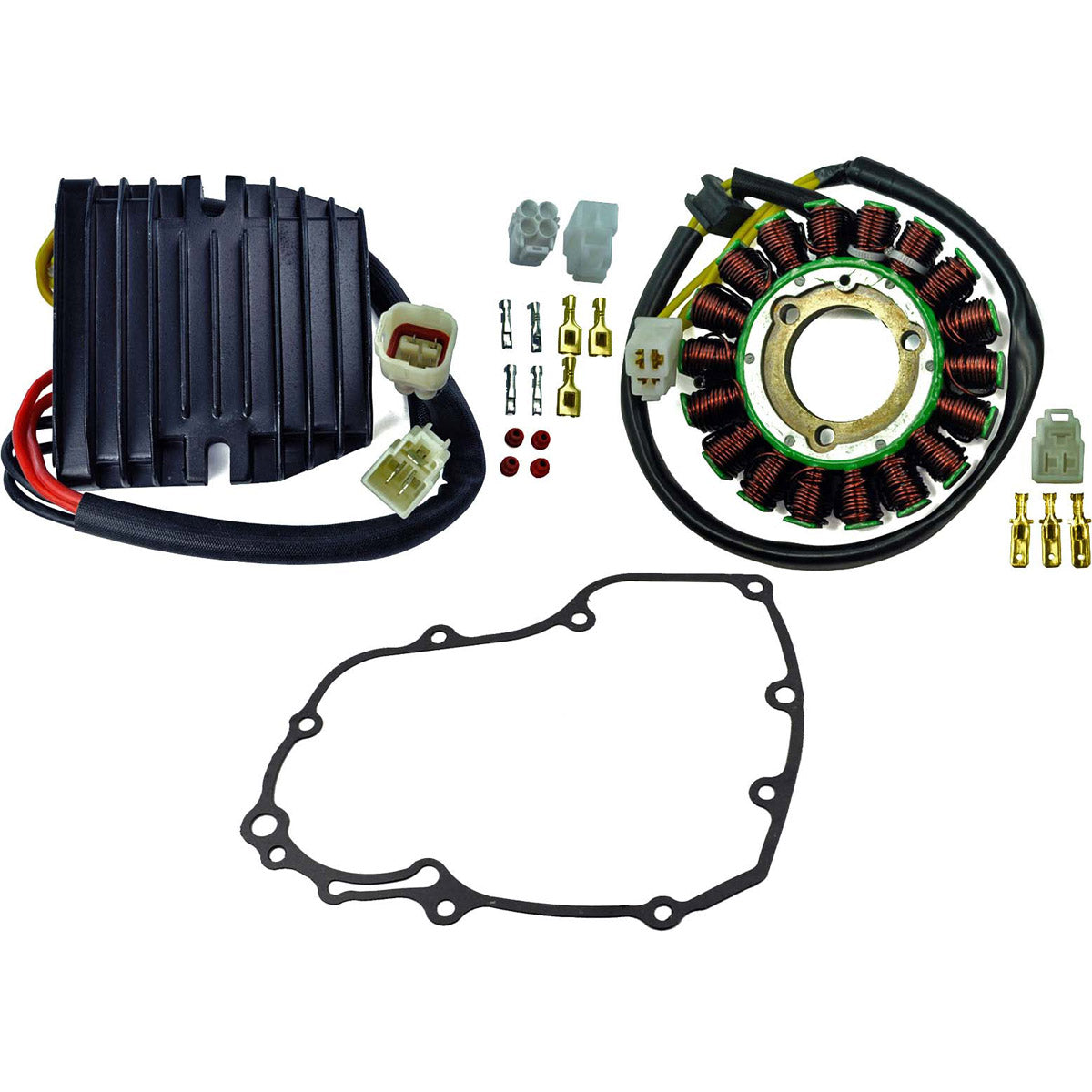

Brand new stator + Mosfet voltage regulator rectifier + Gasket Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All product shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- Gasket included
At RMSTATOR, we believe that proper installation guarantees a longer lifetime. This is why we include, at no extra charge, a stator cover gasket and a dielectric grease tube.
Consult the connector’s circle of death for more information on dielectric grease.
STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
Technical Data
Stator
Dimensions :
Interior diameter : 36mm
Exterior diameter : 106mm
Thickness : 8mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 315mm
Length of pickup coil's wire to grommet : N/A
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Yellow Between each Yellow = 0.4 ohms +/-20%
Mosfet voltage regulator rectifier
Dimensions :
Width : 92mm
Length : 92mm
Height: 30mm
Wires length : 250mm
Fixation holes center to center : 75mm
Other specifications :
Number of plugs : 2
Number of wires : 7
Number of pins : 7
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22965
Fitment:
- 2006-2009 Suzuki GSXR600
- 2011-2017 Suzuki GSXR600
- 2006-2009 Suzuki GSXR750
- 2011-2017 Suzuki GSXR750
Note: Image is for reference only, actual product may vary slightly.
