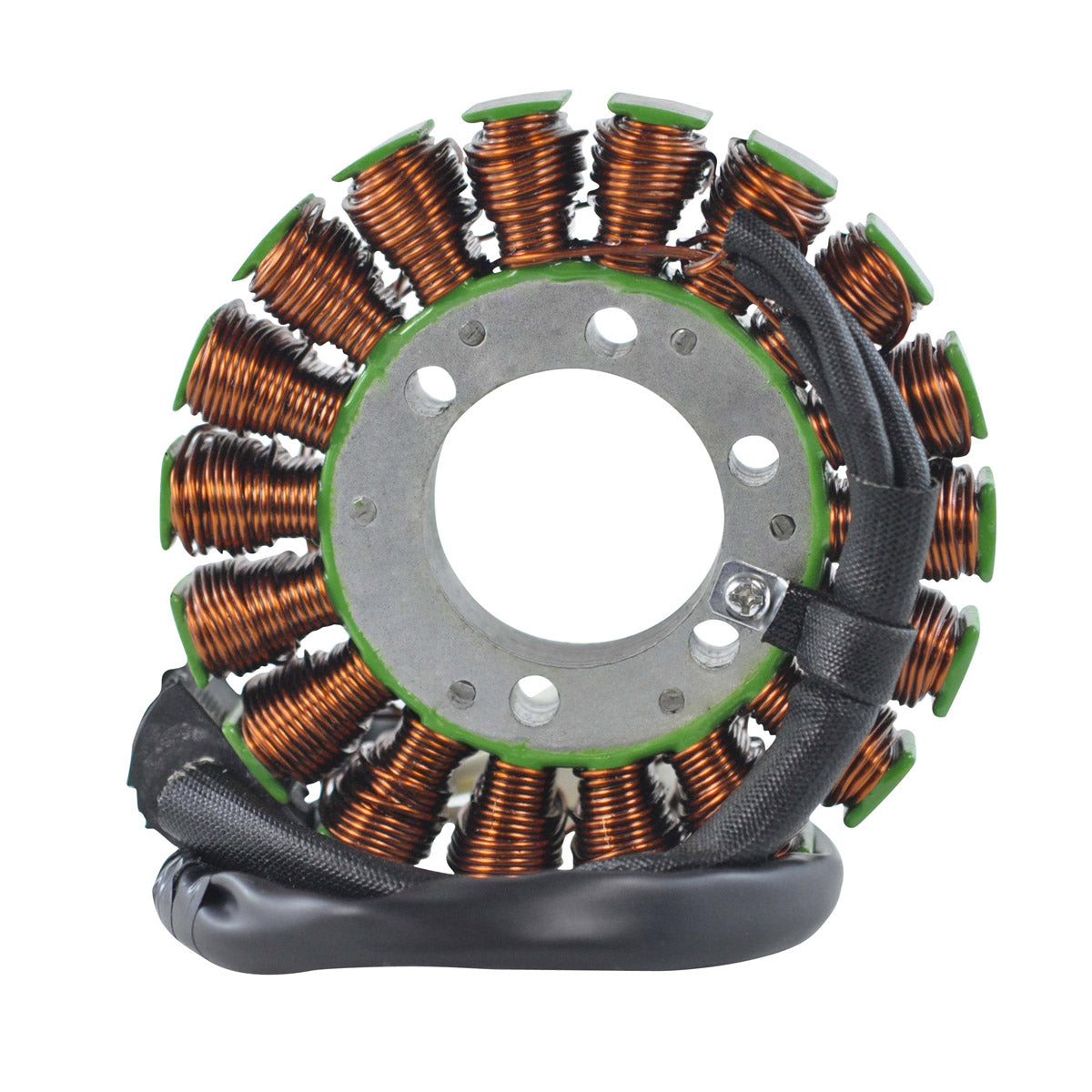

RMStator Stator And Voltage Regulator Rectifier Kit RM22966
Customer Ratings
RMStator Stator And Voltage Regulator Rectifier Kit RM22966
RMStator Stator And Voltage Regulator Rectifier Kit RM22966
Brand New Kit Stator + Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Stator- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- The Quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Technical Data
Stator Dimensions
Interior diameter : 37mm
Exterior diameter : 105mm
Thickness : 18mm
Length of wires stator to grommet : 75mm
Length of wires grommet to plug : 300mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : White between each White = 0.4ohms +/-20%
Dimensions Voltage Regulator Rectifier
Width : 80mm
Length : 90mm
Height: 28mm
Fixation holes center to center : 70mm
Other specifications :
Number of plugs : 1
Number of pins : 5
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM22966
Fitment:
- 2003-2005 Yamaha YZF R6 600
- 2006-2009 Yamaha YZF R6S 600
Note: Image is for reference only, actual product may vary slightly.
