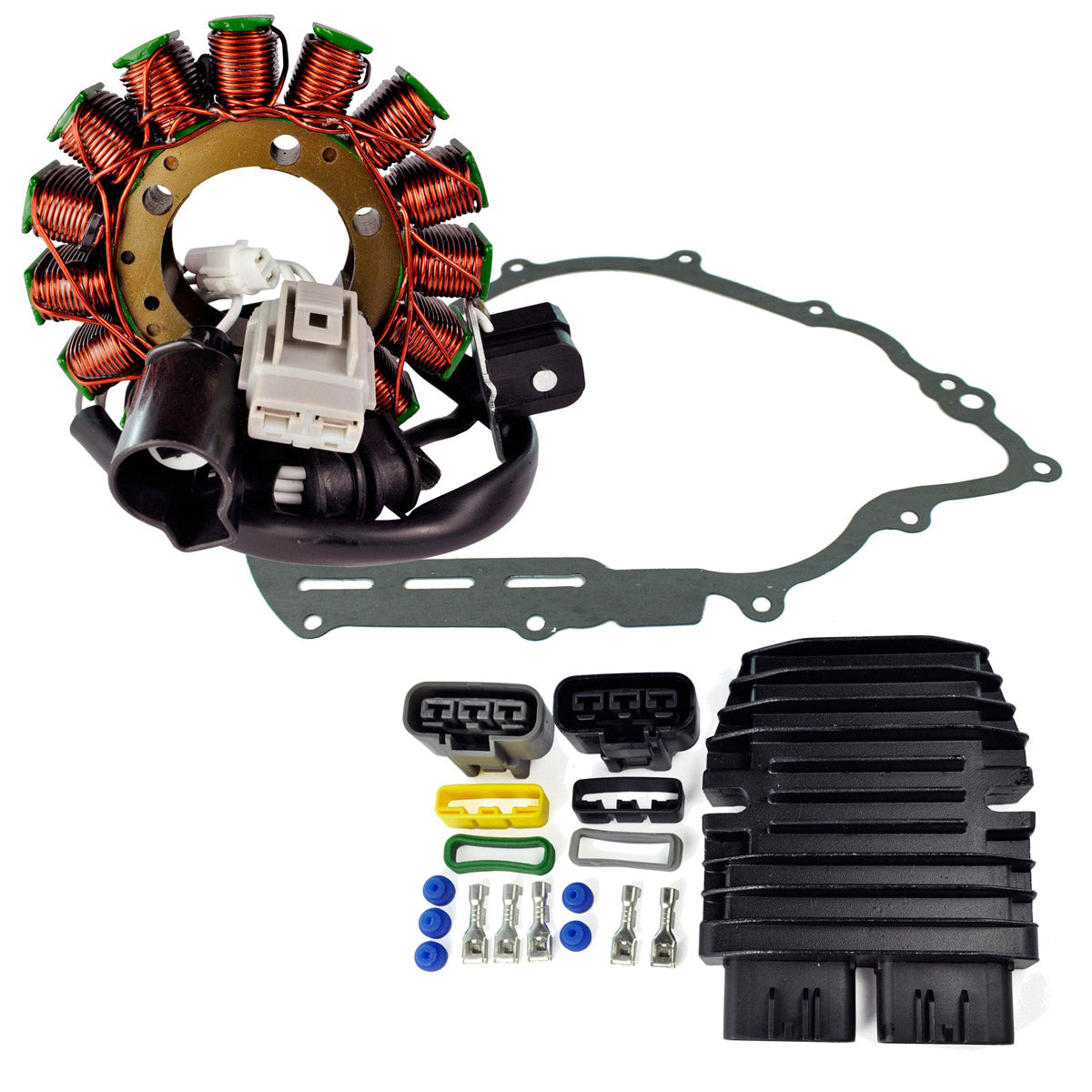

RMStator Stator Kit With Mosfet Voltage Regulator Rectifier And Crankcase Gasket
Customer Ratings
RMStator Stator Kit With Mosfet Voltage Regulator Rectifier And Crankcase Gasket
RMStator Stator Kit With Mosfet Voltage Regulator Rectifier And Crankcase Gasket
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
Brand new Kit Stator + Gasket + Mosfet Voltage Regulator Rectifier
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Stator:- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
Mosfet Voltage Regulator Rectifier
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
This modern, ultra-reliable design can handle up to 50amp peaks and 30amp continuous 3 phase, 30amp single phase.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Higher grade of electronic components
- Improved heat sink and charging capabilities
Technical Data
Stator Dimensions :
Interior diameter : 41 mm
Exterior diameter : 105 mm
Thickness : 19 mm
Length of wires stator to grommet : 65 mm
Length of wires grommet to plug : 400 mm
Length of pickup coil's wire to grommet : 65 mm
Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5
Wire to wire resistance :
Alternator : White to White = 0.4 ohms +/-20%
Pickup : White to Grey = 500 ohms +/-20%
Dimensions Mosfet Voltage Regulator Rectifier:
Width : 95 mm
Length : 110 mm
Height: 30 mm
Fixation holes center to center : 78 mm
Other specifications :
Number of plugs : 2
Number of pins : 6
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM23002
Fitment:
- 2008-2009 Yamaha Rhino 700 YXR700F 4x4 FI
- 2011-2013 Yamaha Rhino 700 YXR700F 4x4 FI
- 2014-2016 Yamaha Viking 700 YXM700DH 4x4 FI
Note: Image is for reference only, actual product may vary slightly.
