RMStator Stator Kit With Flywheel , Cover Gasket And Puller Tool RM23027
Customer Ratings
RMStator Stator Kit With Flywheel , Cover Gasket And Puller Tool RM23027
RMStator Stator Kit With Flywheel , Cover Gasket And Puller Tool RM23027
PLEASE NOTE: This kit will not fit automatic transmissions, but only the manual models.

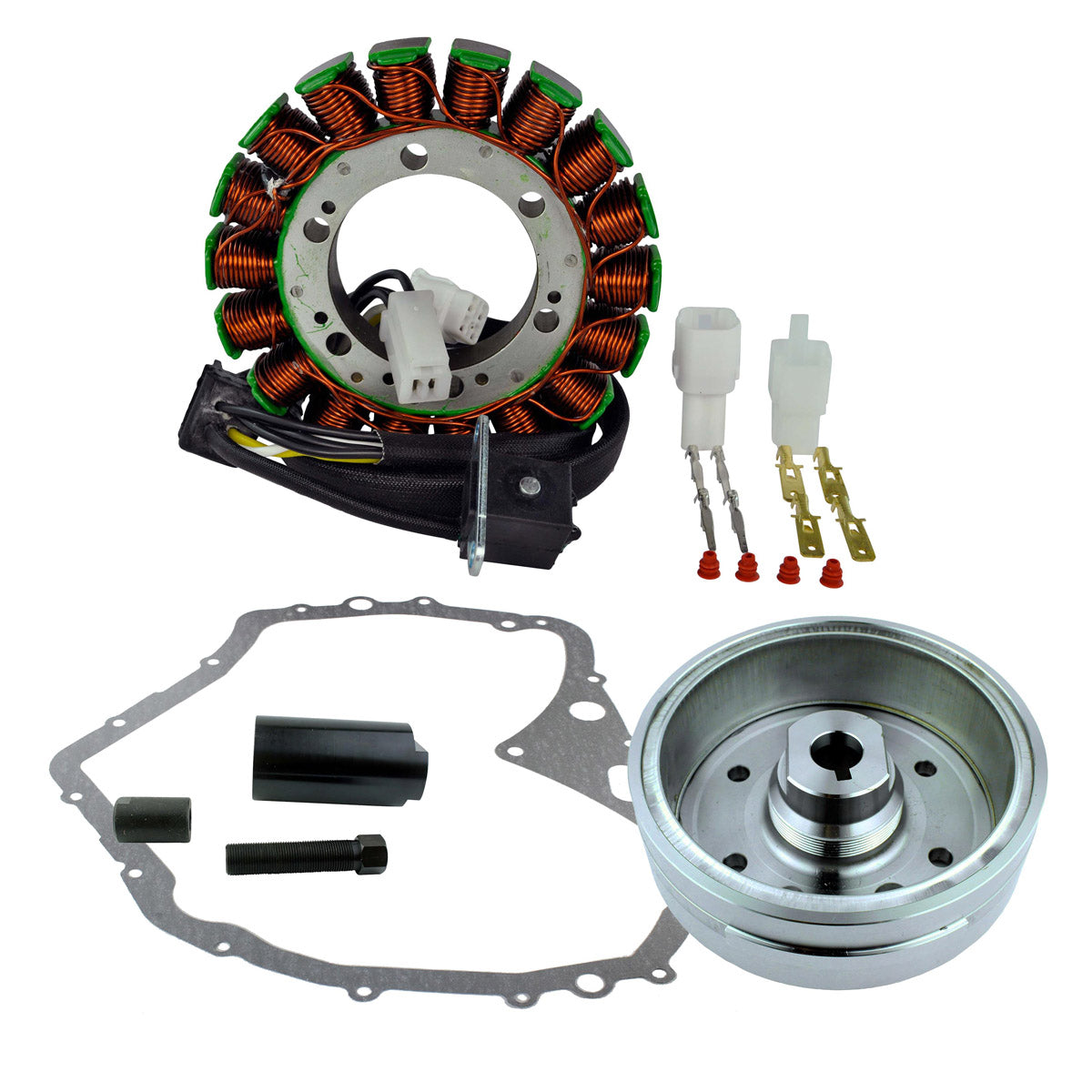

Brand new Kit Magneto Flywheel + Puller + Stator + Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
RMSTATOR is offering a new replacement flywheel. This flywheel can be used as a direct replacement to the OEM.
Why our RM11502 flywheel is improved
2002-2007 Suzuki Eiger 400 and 2003-2008 Arctic Cat 400 ATVs are plagued with problems on the original flywheels. The additives in the motor oil were dissolving the epoxy that holds the magnets in the flywheel, causing them to detach and scatter throughout the engine.
The bad news is that by the time the problem occurred, no manufacturer would provide warranty repairs.
The good news is that RMSTATOR has manufactured a redesigned flywheel where the magnets are sealed in the flywheel, which reinforces the epoxy and prevents them from detaching. This new flywheel configuration corrects the problem permanently.
Dealership estimates to repair this failure are over $500 in parts alone. RMSTATOR offers you a high quality replacement part that corrects the problem for half the price. The RM11502 flywheel is not only a cost effective way to replace your failed Suzuki or Arctic Cat flywheel, but a great investment when replaced before the failure occurs.
Flywheel Puller:
- 50 MM x 1.5 Right Hand Female
- Brand new flywheel puller
Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
Technical Data
Stator:
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm
Other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 7
Wire to wire resistance:
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up Coil : Blue to green = 200 ohms+/- 20%
Position Sensor :White to yellow = 0.2 ohms+/- 20%
Flywheel
Dimensions :
Exterior Diameter: 143 mm
Interior Diameter: 120 mm
Interior Diameter Center Housing: 18 mm
Exterior Diameter Center Housing: 42 mm
Thickness (exterior): 12 mm
Thickness (interior): 13 mm
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM23027
Fitment:
- 2003-2008 Arctic Cat 400 2x4
- 2002-2007 Suzuki Eiger 400 LTF400 2x4 Manual
Note: Image is for reference only, actual product may vary slightly.
