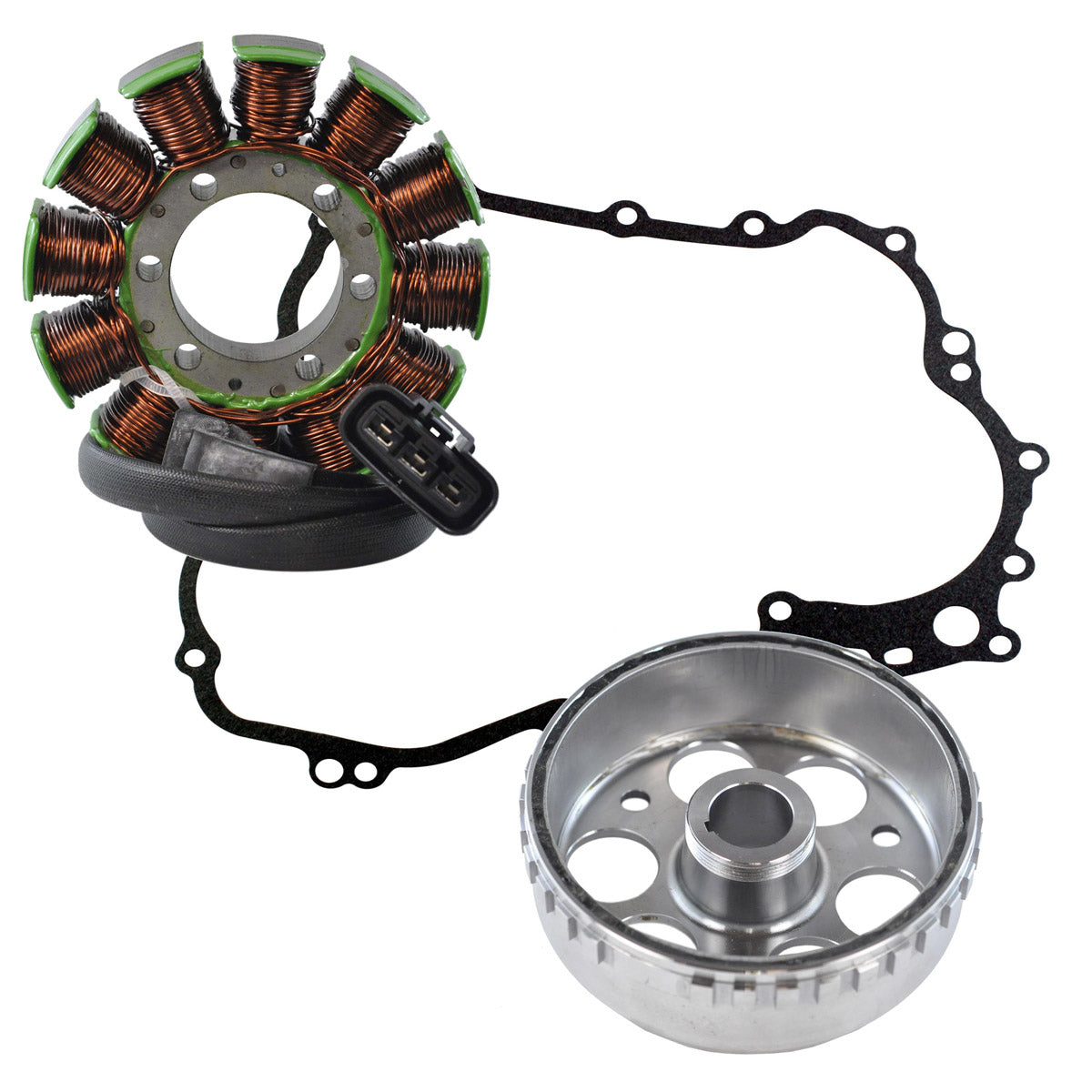

RMStator Stator With Crankcase Cover Gasket and Flywheel Kit RM23033

Brand New Kit Magneto Flywheel + Stator + Gasket

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

RMSTATOR is offering a new replacement flywheel for your Ski-doo. This flywheel can be used as a direct replacement to the OEM.

What is improved about the RM11503 flywheel?

Ski-doo 1200 snowmobiles are plagued with problems on the original flywheels. The additives in the motor oil were dissolving the epoxy that holds the magnets in the flywheel, causing them to detach and scatter throughout the engine.

The bad news is that by the time the problem occurred, no manufacturer would provide warranty repairs.

The good news is that RMSTATOR has manufactured a redesigned flywheel where the magnets are sealed in the flywheel, which reinforces the epoxy and prevents them from detaching. This new flywheel configuration corrects the problem permanently.

Dealership estimates to repair this failure are over $500 in parts alone. RMSTATOR offers you a high quality replacement part that corrects the problem for half the price. The RM11503 flywheel is not only a cost effective way to replace your failed Ski-doo flywheel, but a great investment when replaced before the failure occurs.

SEAL THAT PROTECTS THE MAGNET'S EPOXY FROM OIL ADDITIVES

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connector included
• Rubber grommet included

Technical Data

Stator Dimensions:
Interior diameter : 42 mm
Exterior diameter : 114 mm
Thickness : 19 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 600 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator : Yellow between each Yellow = 0.4 ohms +/-20%

Flywheel Dimensions:
Exterior Diameter: 129 mm
Interior Diameter: 116 mm
Interior Diameter Center Housing: 30 mm
Exterior Diameter Center Housing: 38 mm
Thickness (exterior): 7 mm
Thickness (interior): 7 mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RM23033

Fitment:

• 2010-2016 Ski-doo Expedition 1200 4 TEC TUV EFI L/C
• 2010-2016 Ski-doo Expedition 1200 SE 4-TEC TUV EFI L/C
• 2010-2015 Ski-doo Grand Touring 1200 SE 4 TEC EFI L/C
• 2009-2015 Ski-doo GSX 1200 SE 4 TEC EFI L/C
• 2009 Ski-doo GTX 1200 SE 4 TEC EFI L/C
• 2009-2014 Ski-doo MXZ 1200 Adrenaline 4 TEC EFI L/C
• 2009 Ski-doo MXZ 1200 Renegade 4 TEC EFI L/C
• 2009 Ski-doo MXZ 1200 Renegade X 4 TEC EFI L/C
• 2011-2015 Ski-doo MXZ 1200 TNT EFI L/C
• 2009-2015 Ski-doo MXZ X 1200 4-TEC EFI L/C
• 2010-2015 Ski-doo Renegade 1200 Adrenaline 4-TEC EFI L/C
• 2010-2015 Ski-doo Renegade X 1200 4-TEC EFI L/C

Note: Image is for reference only, actual product may vary slightly.
