RMStator Regulator RM30502
Customer Ratings
RMStator Regulator RM30502
RMStator Regulator RM30502
Brand new aftermarket voltage regulator rectifier
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- Connector included
- No assembly required
- Higher grade of electric components.
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
Technical Data
Dimensions:
Width: 80 mm
Length: 100 mm
Height: 30 mm
Wires length: 260 mm, 250 mm
Fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM30502
Fitment:
- 2007-2009 Suzuki Bandit 1250S GSF1250S
- 2016 Suzuki Bandit 1250S GSF1250S
- 2008-2009 Suzuki B-King GSX1300BK
- 2005-2009 Suzuki Boulevard C50 VL1800
- 2011-2017 Suzuki Boulevard C50 VL1800
- 2019 Suzuki Boulevard C50 VL1800
- 2004 Suzuki Boulevard C50T VL800T
- 2006-2009 Suzuki Boulevard C50T VL800T
- 2011-2017 Suzuki Boulevard C50T VL800T
- 2005-2009 Suzuki Boulevard C90 VL1500
- 2005-2009 Suzuki Boulevard C90T VL1500T
- 2005-2009 Suzuki Boulevard M50 VZ800
- 2013-2017 Suzuki Boulevard M50 VZ800
- 2011 Suzuki GSX1250FA ABS
- 2005-2009 Suzuki GSXR1000
- 2011-2016 Suzuki GSXR1000
- 2006-2009 Suzuki GSXR600
- 2011-2019 Suzuki GSXR600
- 2006-2009 Suzuki GSXR750
- 2011-2019 Suzuki GSXR750
- 2015-2016 Suzuki GSXS750
- 2008-2009 Suzuki Hayabusa GSX1300R
- 2011-2012 Suzuki Hayabusa GSX1300R
- 2001-2005 Suzuki Intruder Volusia 800 VL800
- 2008-2009 Suzuki Katana 650 GSX650F
- 2005-2006 Suzuki King Quad 700 LTA700X 4x4
- 2009 Suzuki SFV650 Gladius
- 2014-2015 Suzuki SFV650 Gladius
- 2017 Suzuki SV650
- 2008-2009 Suzuki Vstrom 650 DL650
- 2011-2017 Suzuki Vstrom 650 DL650
- 2019 Suzuki Vstrom 650 DL650

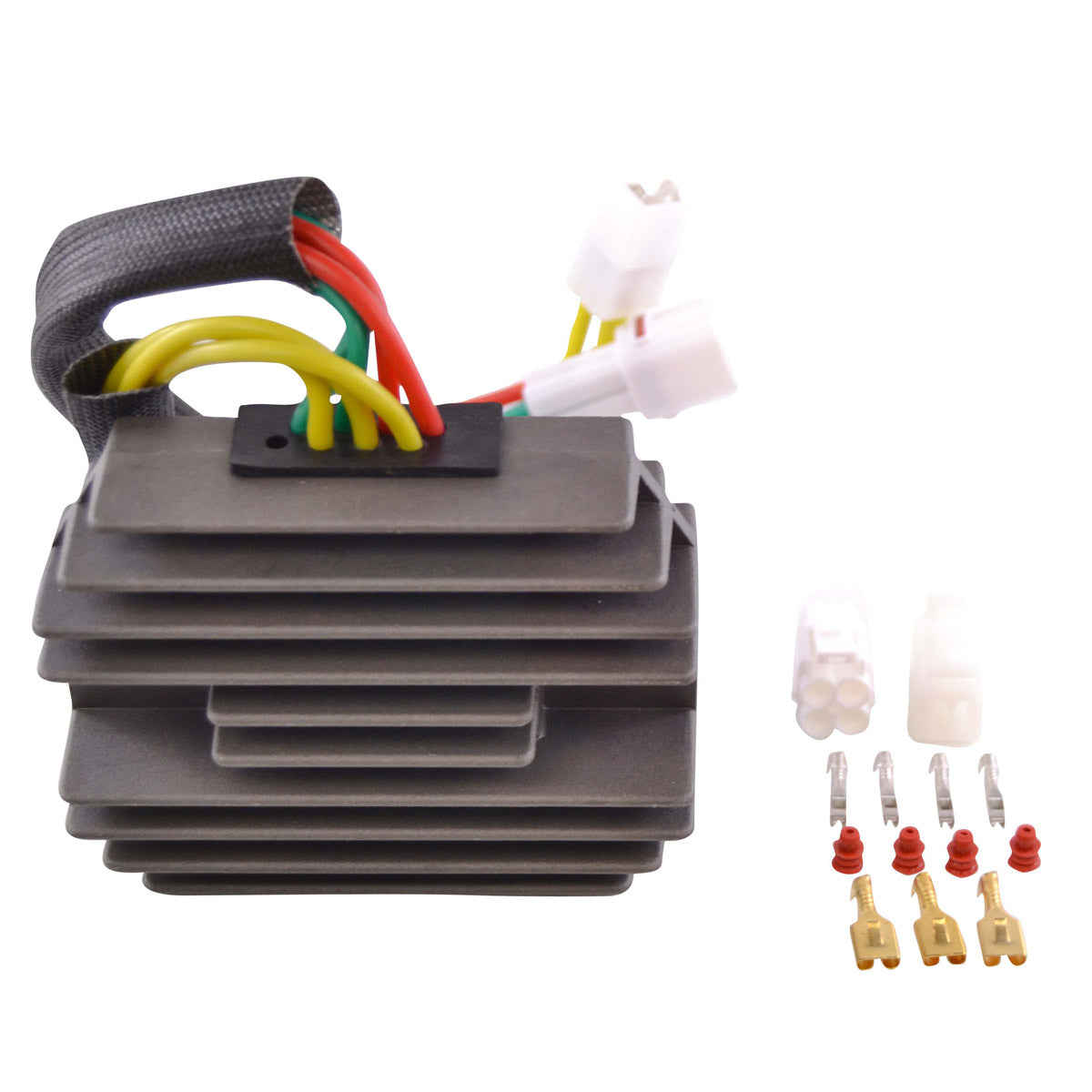

Note: Image is for reference only, actual product may vary slightly.
