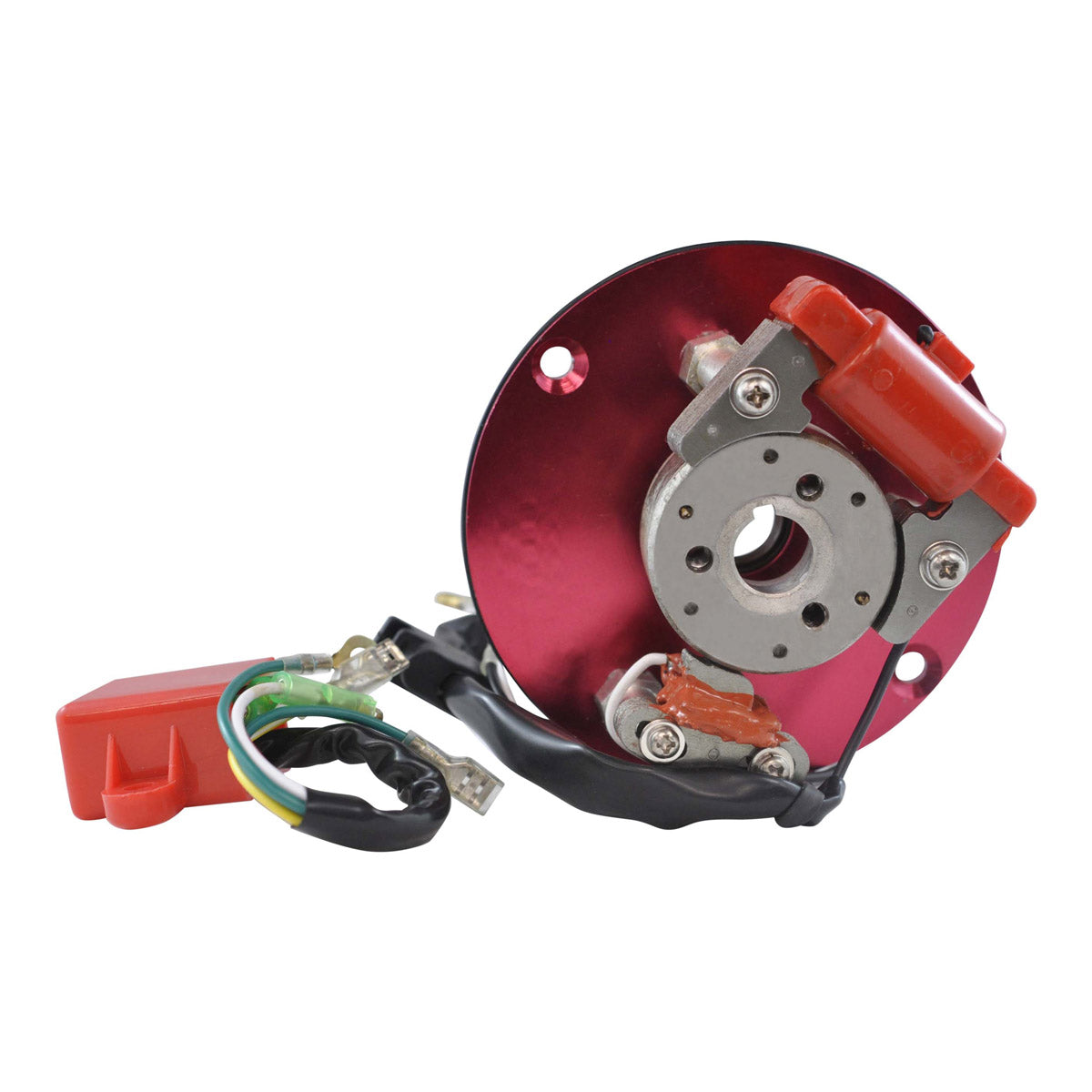

RMStator Inner Rotor Kit RM40003
RMStator Inner Rotor Kit RM40003
Brand New Inner Rotor Kit
- Includes Flywheel, Stator, Stator Base, and CDI Box
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Stator and Stator Plate:- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- Back Plate included
- Eliminate the weight of your flywheel and let your motor really twist like a 2 stroke
- This unit is good up to 15 000 RPM's
- Enhanced timing curve, increased rev limiter (approximately 1000 rpm)
- Higher grade of electronic components
- The Quality exceeds the OEM equipment
- Connector included
Technical Data
Stator Dimensions:
Interior diameter : 17mm
Exterior diameter : 115mm
Thickness : 6mm
Length of wires stator to grommet : 100mm
Length of wires grommet to plug : 225mm & 260mm
Length of pickup coil's wire to grommet : 100mm
Fixation holes center to center back plate: 95mm
Other specifications :
Number of wires : 2
Number of plugs : 2
Number of pins : 2
Wire to wire resistance :
Pickup : White to Ground = 61 ohms +/-20%
Source : Black to Ground = 608 ohms +/-20%
Dimensions Flywheel:
Exterior Diameter: 50mm
Interior Diameter: 15mm
Thickness: 25mm
Fixation holes center to center: 24mm
Dimensions CDI Box :
Height: 25mm
Length: 38mm
Width: 37mm
Wires length: 140mm
Other specifications:
Number of plugs: 5
Number of pins: 5
Number of wires: 5
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RM40003
Fitment:
- 2004-2016 Honda CRF50F
- 2000-2004 Honda XR50R
- 1997-2004 Honda XR70R
- 1994-1999 Honda ZR 50 R
Note: Image is for reference only, actual product may vary slightly.
