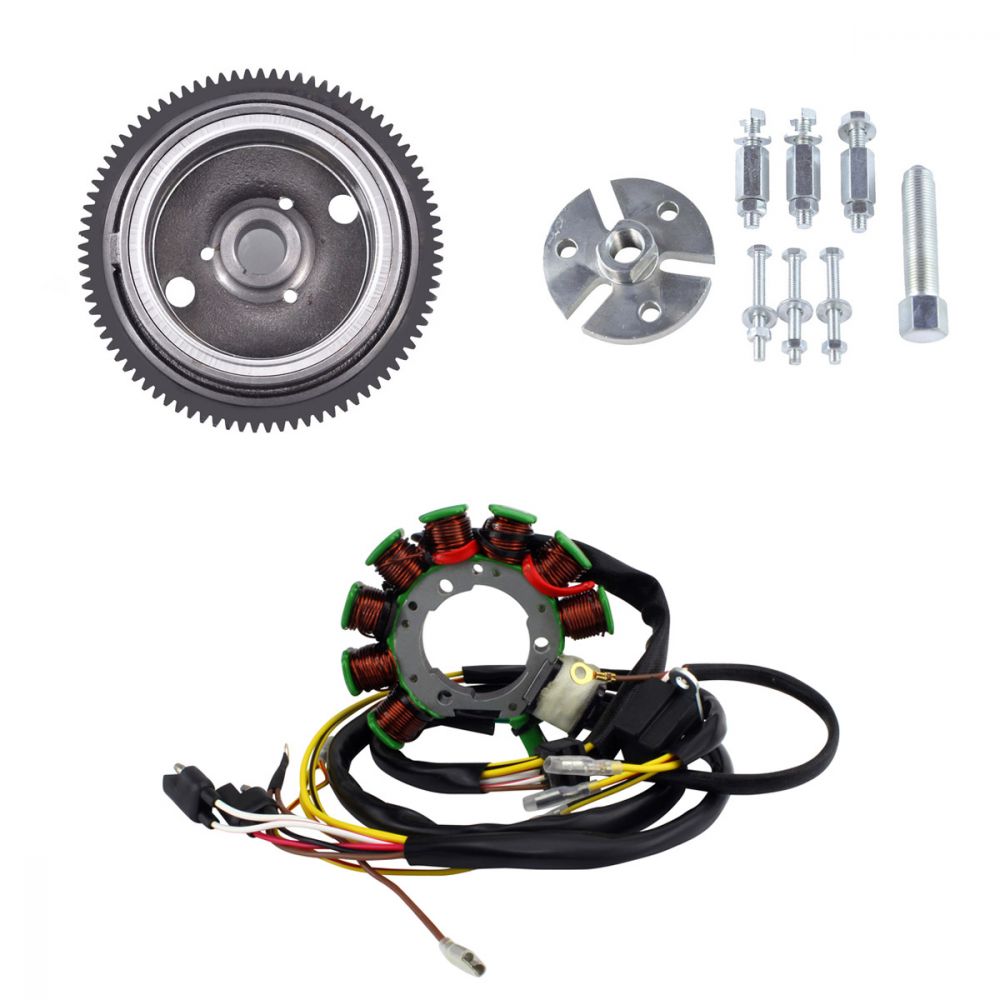

RMStator Stator RMS010-100032
Customer Ratings
RMStator Stator RMS010-100032
RMStator Stator RMS010-100032
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 54mm
Exterior diameter : 115mm
Thickness : 18mm
Length of wires stator to grommet : 114 mm
Length of wires grommet to plug : 85 mm
Length of pickup coil's wire to grommet : 560 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : Blue To Green = 200 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-100032
Fitment:
- 2007-2009 CF-Moto CF500
- 2011-2016 CF-Moto CF500
- 2014-2015 CF-Moto UFORCE 500 EPS
- 2011-2015 CF-Moto X5 Short Wheel Base
Note: Image is for reference only, actual product may vary slightly.
