RMStator Generator Stator RMS010-100038

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included (2)
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 20 mm
Length of wires stator to grommet : 115 mm
Length of wires between grommets : 5 mm
Length of pickup coil's wire to grommet : 600 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator : White Between White = 0.4 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-100038

Fitment:

• 2008-2009 Yamaha Road Star XV1700A
• 2008-2010 Yamaha Road Star XV1700AT Silverado
• 2008-2014 Yamaha Road Star S XV1700AS
• 2008-2014 Yamaha Road Star S XV1700AS Silverado

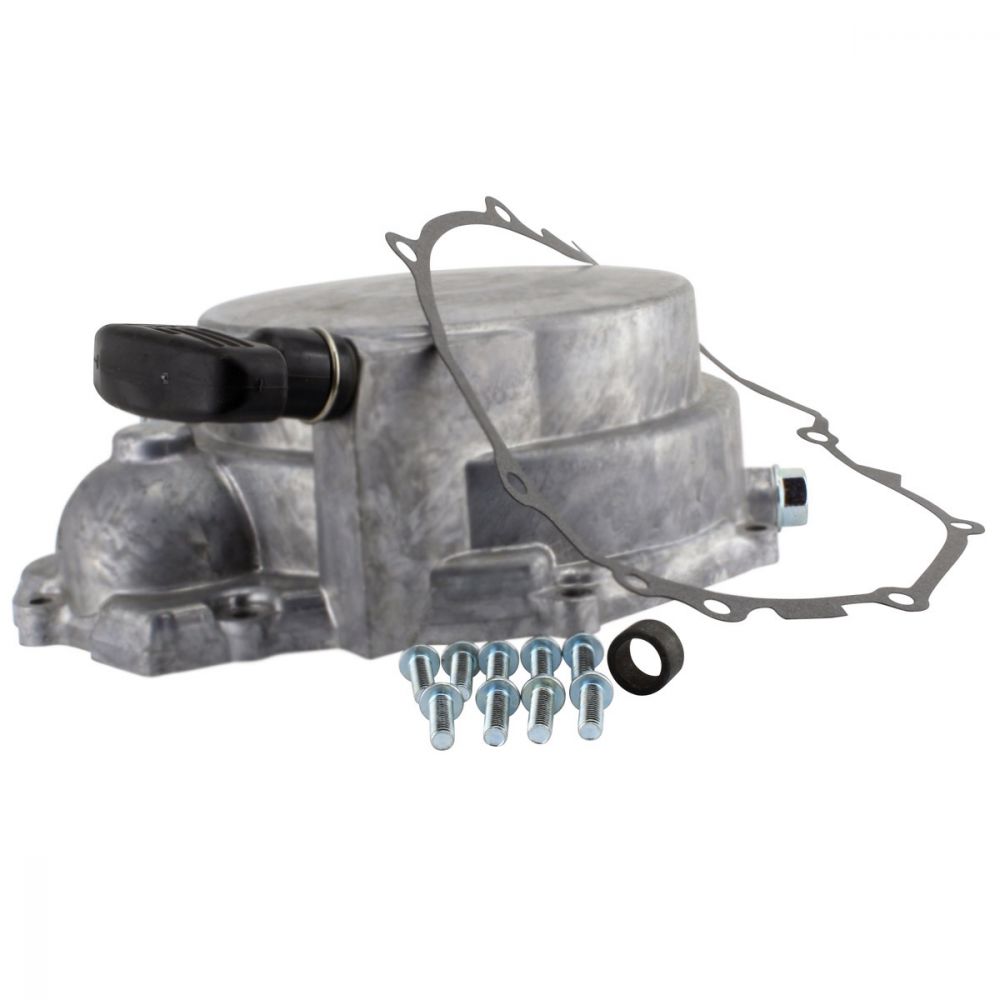

Note: Image is for reference only, actual product may vary slightly.
