RMStator Stator RMS010-100217
Customer Ratings
RMStator Stator RMS010-100217
RMStator Stator RMS010-100217
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 10 mm
Length of wires stator to green plugs : 123 mm
Length of wires stator to other plug : 93 mm
Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 3
Wire to wire resistance :
Alternator : Green to Green = 0.8 ohms +-20%
Source : Black/Red to Blue = 811 ohms +-20%
Source 2 : Black/Red to Red = 208 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-100217
Fitment:
- 1996-1998 Yamaha Exciter 220
- 1995-1996 Yamaha WaveRaider 1100 RA1100
- 1996-1997 Yamaha WaveVenture 1100 WVT1100

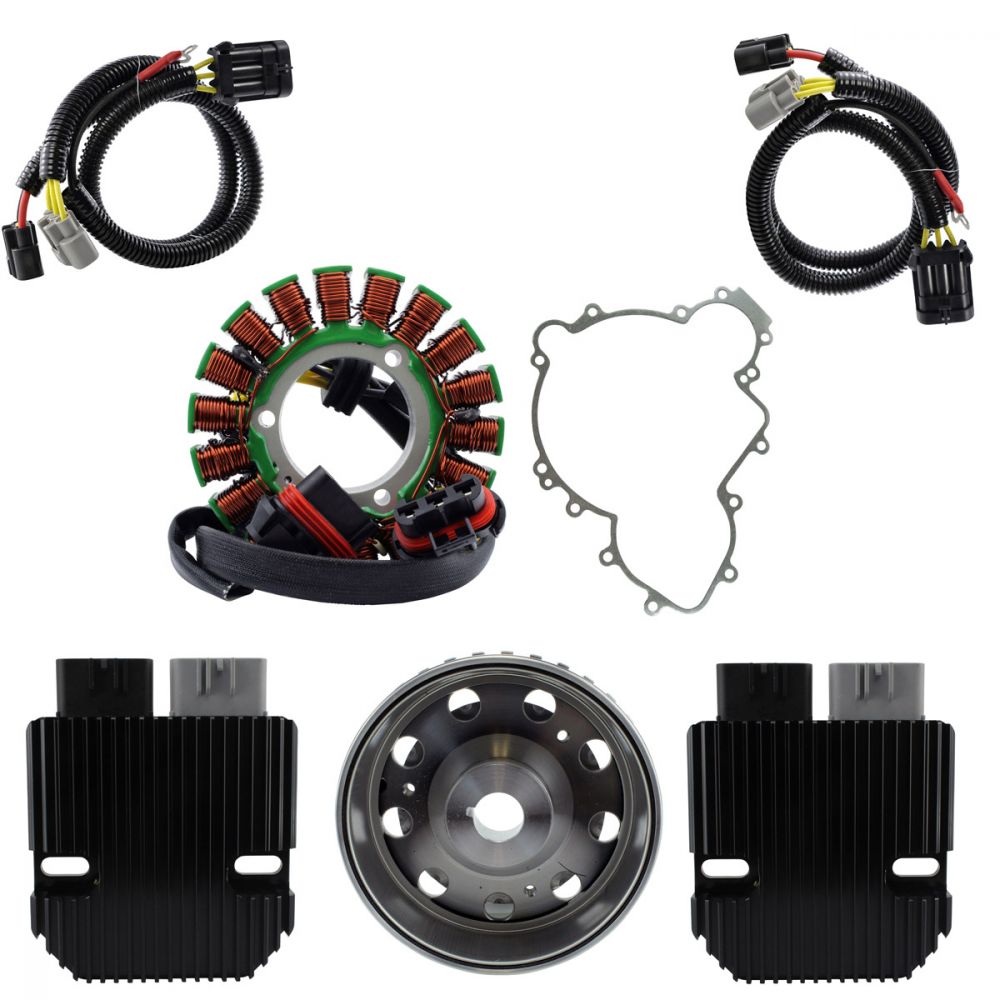

Note: Image is for reference only, actual product may vary slightly.
