RMStator Generator Stator RMS010-101413

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 12 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 170 mm
Length of pickup coil's wire to grommet : 35 mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :

Alternator : Between each Black = 0.5 ohms +-20%
Pickup : Black to Black/Red = 117 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-101413

Fitment:

• 2007-2009 Suzuki Bandit 1250S GSF1250S
• 2016 Suzuki Bandit 1250S GSF1250S
• 2011 Suzuki GSX1250FA ABS
• 2008-2009 Suzuki Katana 650 GSX650F

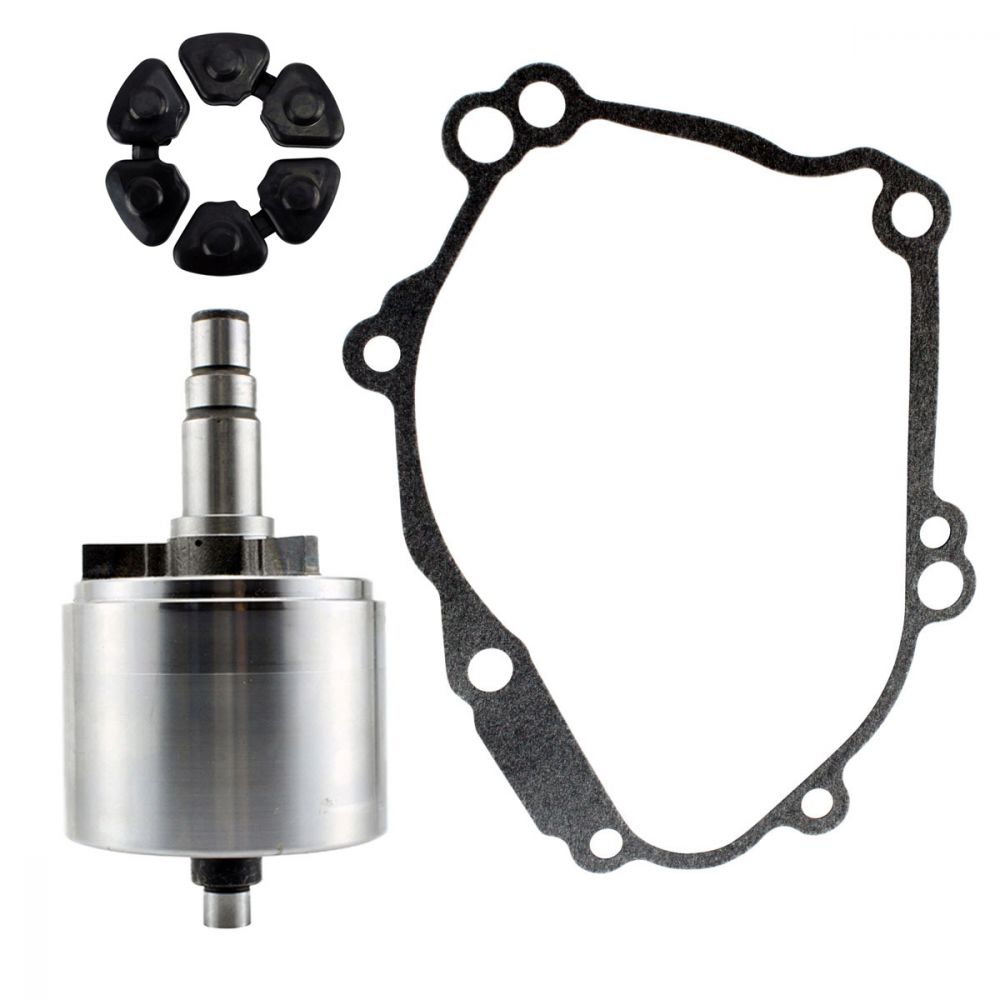

Note: Image is for reference only, actual product may vary slightly.
