RMStator Generator Stator For 1999-2010 Suzuki GZ250 RMS010-101506

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 38 mm
Exterior diameter : 104 mm
Thickness : 14.5 mm
Length of wires stator to grommet : 190 mm
Length of wires grommet to plug : 410 mm
Length of pickup coil's wire to grommet : 60 mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :

Alternator : Yellow to Yellow = 0.9 ohms +-20%
Pickup : Green to Blue = 520 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-101506

Fitment:

• 1999-2010 Suzuki GZ250

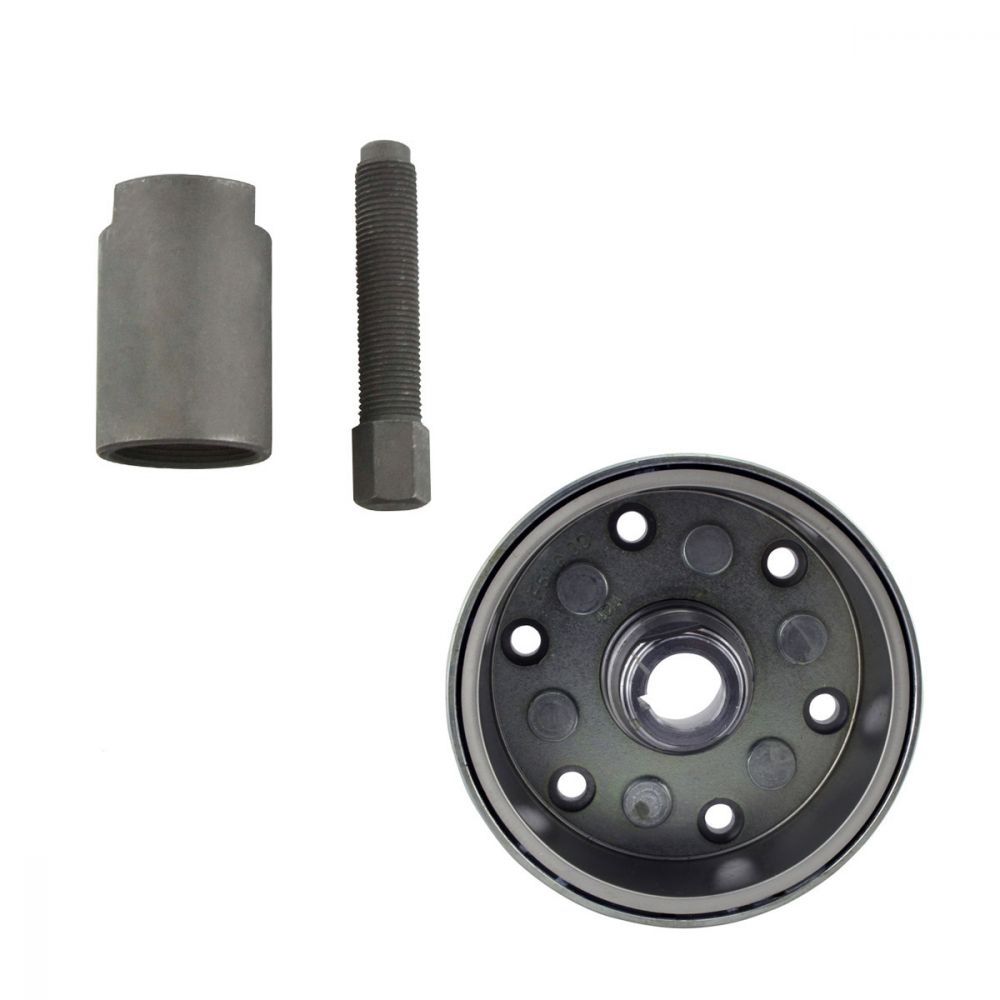

Note: Image is for reference only, actual product may vary slightly.
