RMStator Generator Stator RMS010-101518

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter: 42 mm
Exterior diameter: 104 mm
Thickness: 22 mm
Length of wires stator to grommet: 90 mm
Length of wires grommet to plug: 450 mm
Length of pickup coil wire 1 to grommet: 280 mm
Length of pickup coil wire 2 to grommet: 125 mm

Other specifications :

Number of wires: 6
Number of plugs: 2
Number of pins: 6

Wire to wire resistance:
Alternator: Green between each Green = 0.9 ohms +/-20%
Pickup 1: White to Black = 518 ohms +/-20%
Pickup 2: Red to Black = 524 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-101518

Fitment:

• 2008-2010 Yamaha 212 SS
• 2008-2010 Yamaha 212 X
• 2008-2009 Yamaha 232 Limited
• 2009 Yamaha 232 Limited S
• 2004-2006 Yamaha AR 230
• 2005-2009 Yamaha AR 230 HO
• 2003-2005 Yamaha SR 230
• 2007 Yamaha SR 230 HO
• 2004-2006 Yamaha SX 230
• 2005-2009 Yamaha SX 230 HO
• 2005-2008 Yamaha WaveRunner FX FX1000
• 2002-2004 Yamaha WaveRunner FX FX1000 140
• 2004-2008 Yamaha WaveRunner FX FX1100 HO
• 2003-2008 Yamaha WaveRunner FX Cruiser FX1000A
• 2004-2008 Yamaha WaveRunner FX Cruiser FX1100A HO

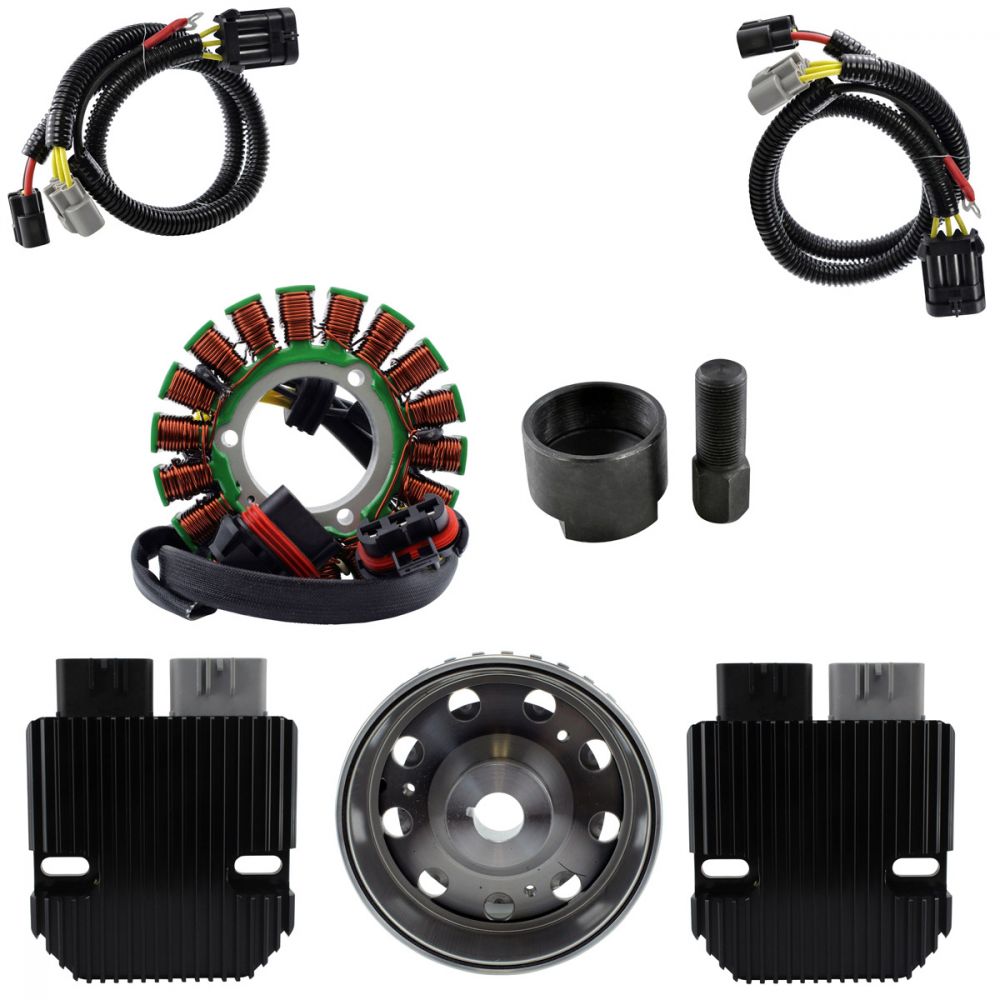

Note: Image is for reference only, actual product may vary slightly.
