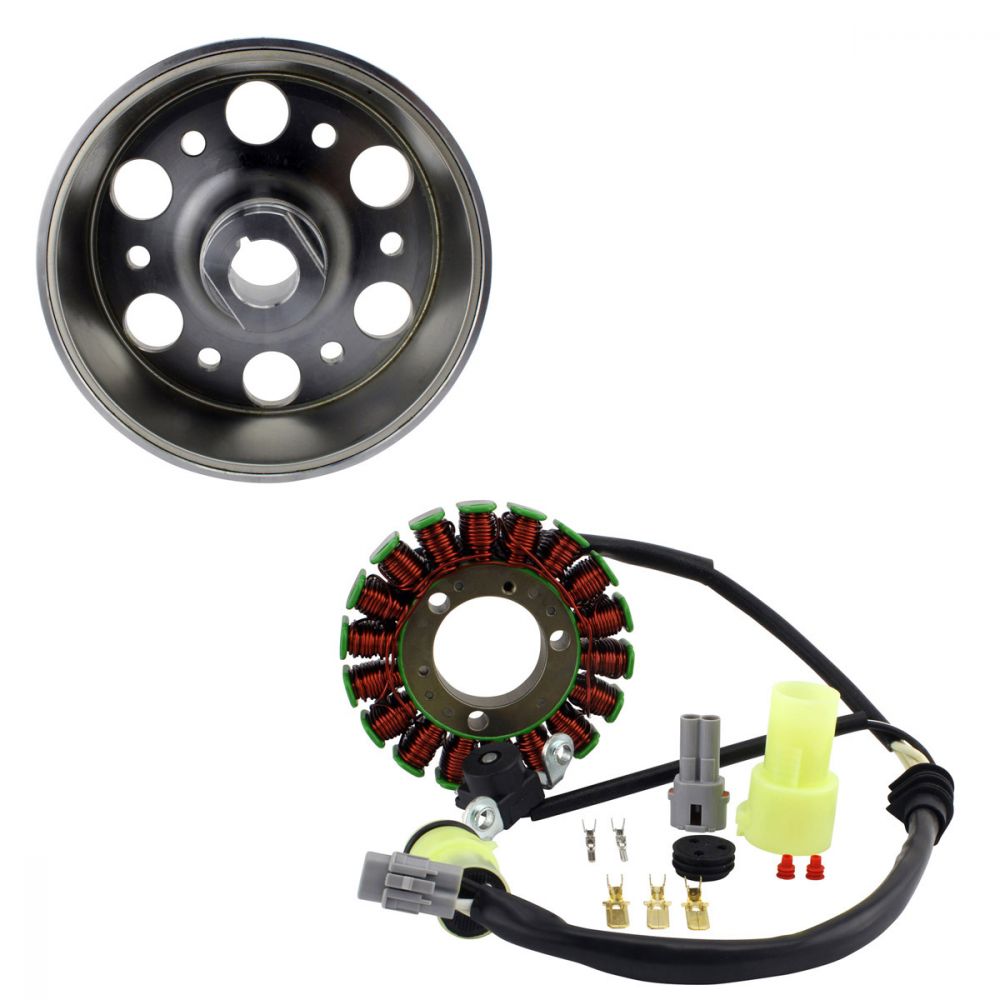

RMStator Stator RMS010-101534

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 28 mm
Exterior diameter : 84 mm
Thickness : 12 mm
Length of wires stator to grommet : 82 mm
Length of wires grommet to plug : 400 mm
Length of pickup coil's wire to grommet : 40 mm

Other specifications :

Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :

Alternator : White To Yellow = 0.6 ohms +/-20%
Pickup : = Green To Red = 100 ohms +/-20%
Source : Red/White To Black/Red = 15 ohms +/-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-101534

Fitment:

• 2007-2008 KTM 144 SX
• 2017-2019 KTM 150 XCW
• 2013-2016 KTM 200 Duke
• 2013-2016 KTM 200 XCW
• 2008-2016 KTM 250 XC
• 2008-2016 KTM 250 XCW
• 2009-2016 KTM 300 EXC
• 2008-2016 KTM 300 XC
• 2008-2016 KTM 300 XCW
• 2014-2016 KTM Freeride 250 R

Note: Image is for reference only, actual product may vary slightly.
