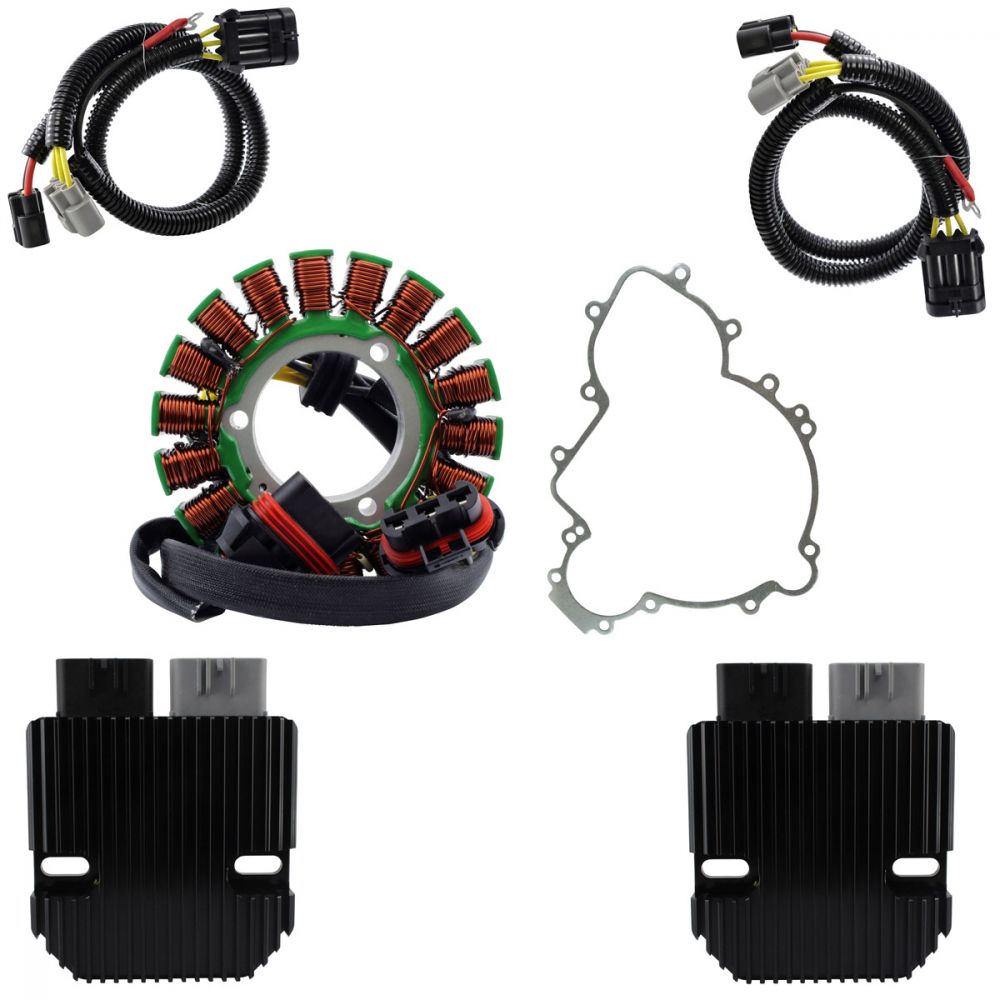

RMStator Generator Stator RMS010-101538

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 25 mm
Length of wires stator to grommet : 135 mm
Length of wires grommet to plug : 400 mm

Other specifications :

Number of wires :3
Number of plugs : 1
Number of pins :3

Wire to wire resistance :

Alternator : Yellow between Yellow = 0.5 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-101538

Fitment:

• 2010-2012 Sea-doo 210 Challenger
• 2010-2012 Sea-doo 210 Challenger SE
• 2010-2012 Sea-doo 210 WAKE
• 2005-2012 Sea-doo Challenger 180 1500 cc 180 hp
• 2010-2012 Sea-doo Challenger 210 hp
• 2007-2012 Sea-doo Challenger 230 4200 cc 310 hp
• 2006-2016 Sea-Doo GTI 1500 cc 130 hp
• 2011-2016 Sea-Doo GTI 155 Limited
• 2008-2017 Sea-Doo GTI 155 SE
• 2007 Sea-Doo GTI 4TEC SE 1500 cc 155 hp
• 2012-2016 Sea-Doo GTR 215
• 2017 Sea-Doo GTR 230
• 2011-2017 Sea-Doo GTS 130
• 2008-2016 Sea-Doo GTX 155
• 2008-2016 Sea-Doo GTX 215
• 2009 Sea-Doo GTX 255 Limited iS
• 2010-2017 Sea-Doo GTX 260 Limited S
• 2016-2017 Sea-Doo GTX 300 Limited
• 2002-2008 Sea-Doo GTX 4TEC 1500
• 2003-2008 Sea-Doo GTX 4TEC Supercharged
• 2006-2007 Sea-doo Islandia 220 3000 cc 310 hp
• 2008-2009 Sea-doo Islandia 430 SE
• 2005 Sea-Doo RXP
• 2004-2009 Sea-Doo RXP 215
• 2008-2011 Sea-Doo RXP X 255
• 2012-2015 Sea-Doo RXP X 260
• 2016-2017 Sea-Doo RXP X 300
• 2005 Sea-Doo RXT
• 2005-2010 Sea-Doo RXT 1500 cc 215 hp
• 2010-2017 Sea-Doo RXT 260
• 2008-2009 Sea-Doo RXT X 255
• 2010-2016 Sea-Doo RXT X 260
• 2016-2017 Sea-Doo RXT X 300
• 2012 Sea-Doo SP 180
• 2011-2012 Sea-Doo SP 210
• 2011-2012 Sea-Doo SP 230
• 2007-2012 Sea-doo Speedster 150 1500 cc 155 hp
• 2004-2012 Sea-doo Speedster 200 3000 cc 310 hp
• 2007 Sea-doo Speedster 200 3000 cc 310 hp 4-Tec
• 2008 Sea-doo Speedster 3000 cc 310 hp
• 2007-2009 Sea-doo Speedster 430 Wake
• 2003-2006 Sea-doo Sportster 4-Tec 1500 cc 155 hp
• 2006-2009 Sea-doo Utopia 205 3000 cc 310 hp
• 2008-2016 Sea-Doo Wake 155
• 2008-2016 Sea-Doo Wake Pro 215
• 2009 Sea-Doo Wake Pro 230
• 2011-2012 Sea-Doo Wake Pro 230
• 2010 Sea-Doo Wake Pro 230 SE

Note: Image is for reference only, actual product may vary slightly.
