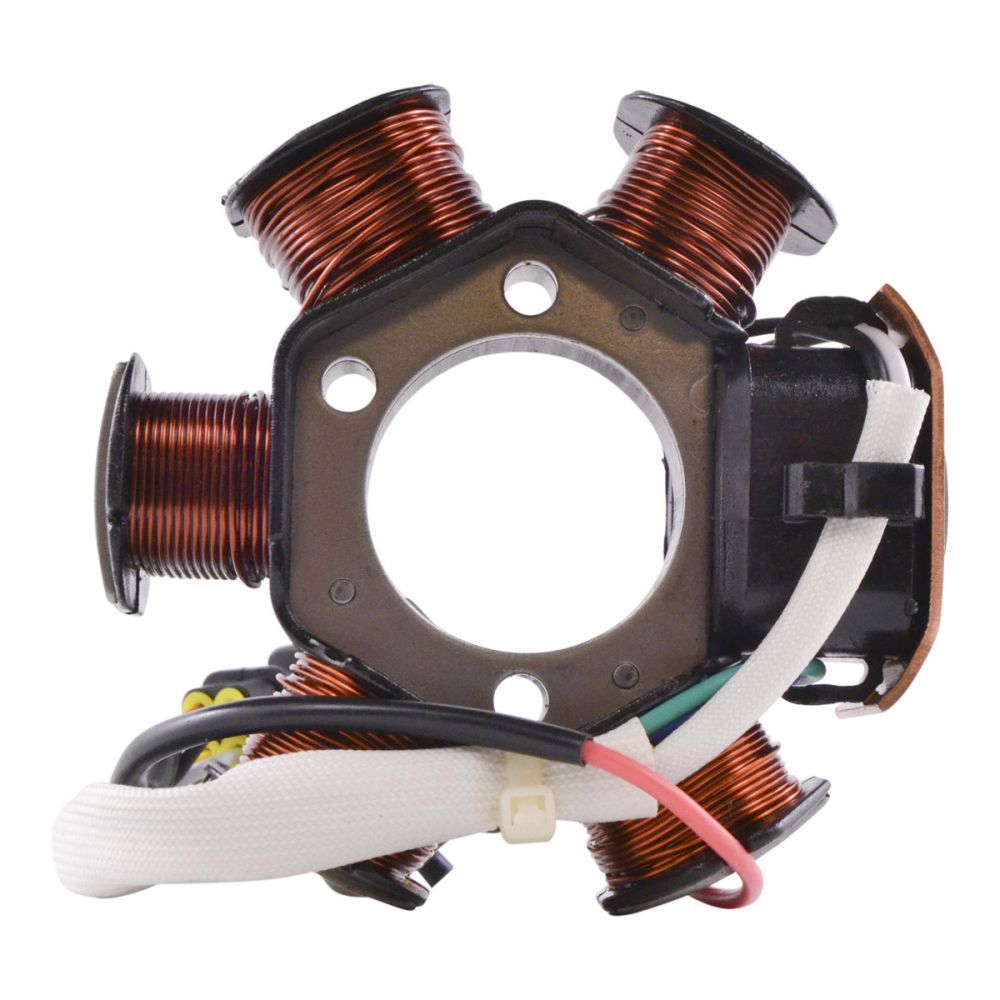

RMStator Stator RMS010-102427
Customer Ratings
RMStator Stator RMS010-102427
RMStator Stator RMS010-102427
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 36 mm
Exterior diameter : 98 mm
Thickness : 12 mm
Length of wires stator to plug : 150 mm
Other specifications :
Number of wires : 6
Number of plugs : 1
Number of pins :6
Wire to wire resistance :
Alternator : Black to Ground = O.L
Alternator : Yellow to Blue = 1.6 ohms +-20%
Pickup : Red to Ground = 120 ohms +-20%
Source : White to Green = 900 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-102427
Fitment:
- 2005-2008 Aprilia Mojito 50 Custom
- 2008-2012 Aprilia Sportcity 50
- 2003-2011 Aprilia SR50 IE
- 2004-2012 Aprilia SR50R Factory
- 2009-2012 Vespa LX50
Note: Image is for reference only, actual product may vary slightly.
