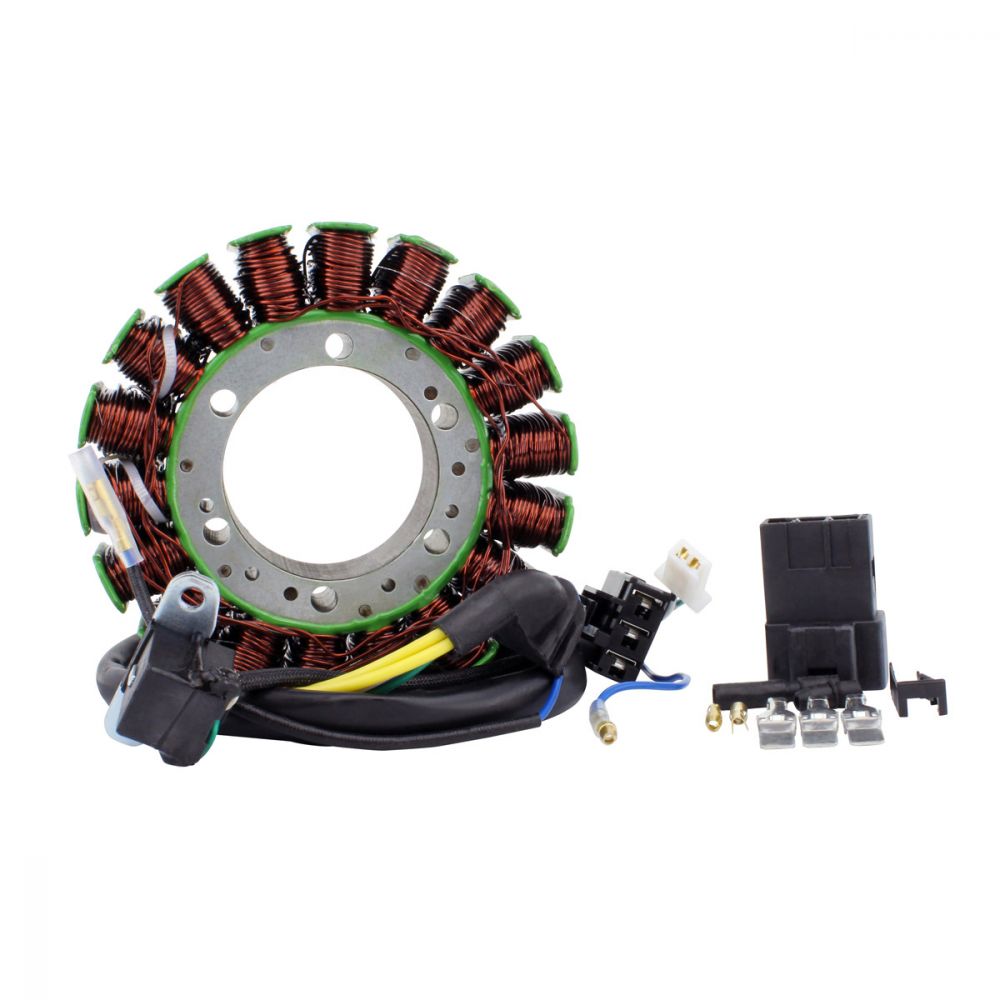

RMStator Stator RMS010-103215
Customer Ratings
RMStator Stator RMS010-103215
RMStator Stator RMS010-103215
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side), as we know these are often melted corroded defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 42 mm
Length of wires stator to grommet : 175 mm
Length of wires grommet to plug : 640 mm
Length of pickup coil's wire to grommet : 80 mm
Other specifications :
Number of wires : 7
Number of plugs : 4
Number of pins : 7
Wire to wire resistance :
Alternator 3p : Yellow between each Yellow = 0.4 ohms +-20%
Pickup : Blue/White to Green = 0.36 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-103215
Fitment:
- 2005-2009 Honda VTX1300C
- 2005-2009 Honda VTX1300R
- 2005-2007 Honda VTX1300S
- 2008-2009 Honda VTX1300T
Note: Image is for reference only, actual product may vary slightly.
