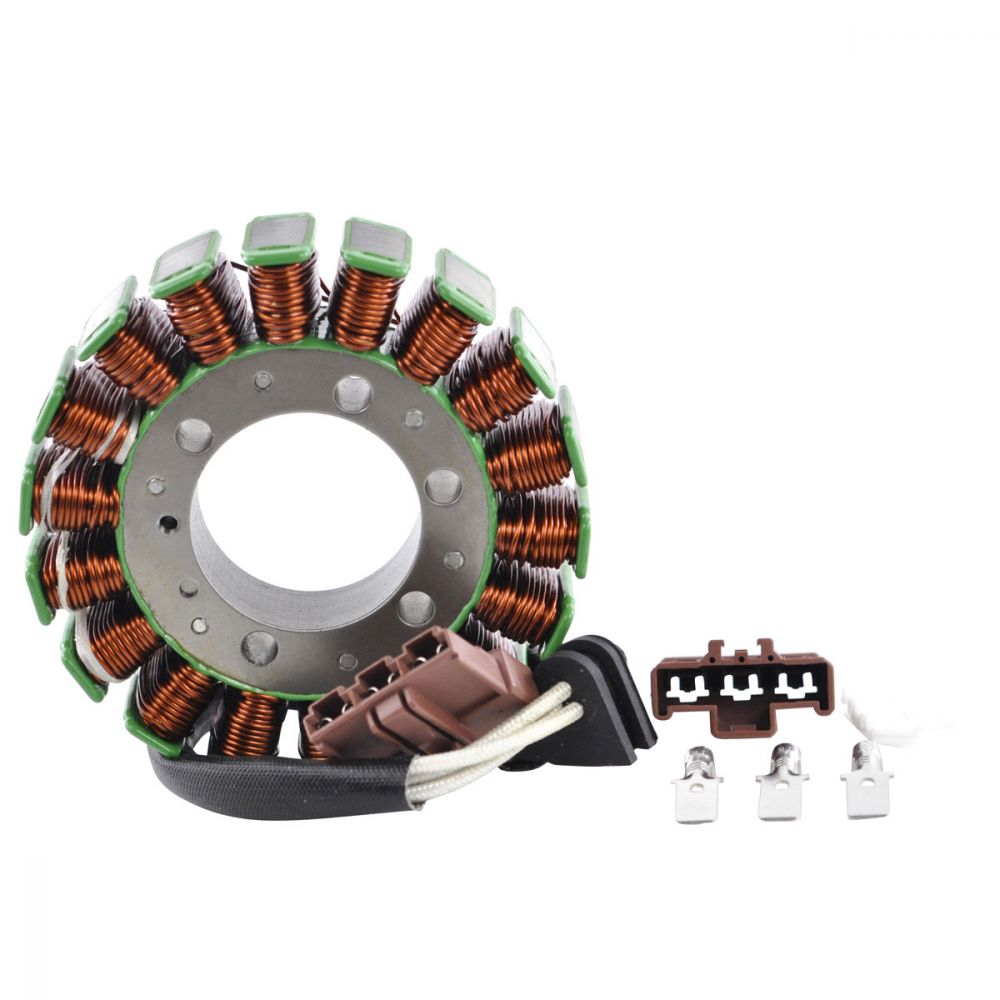

RMStator Stator RMS010-103431
Customer Ratings
RMStator Stator RMS010-103431
RMStator Stator RMS010-103431
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 22 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 250 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : White between white = 0.4 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-103431
Fitment:
- 2003-2006 KTM 950 Adventure
- 2003-2006 KTM 950 Adventure S
- 2007-2009 KTM 950 Super Enduro R
- 2005-2008 KTM 950 Supermoto
- 2006-2013 KTM 990 Adventure
- 2006-2008 KTM 990 Adventure S
- 2005-2008 KTM 990 Super Duke
- 2010-2011 KTM 990 Supermoto R
- 2010-2013 KTM 990 Supermoto T
Note: Image is for reference only, actual product may vary slightly.
